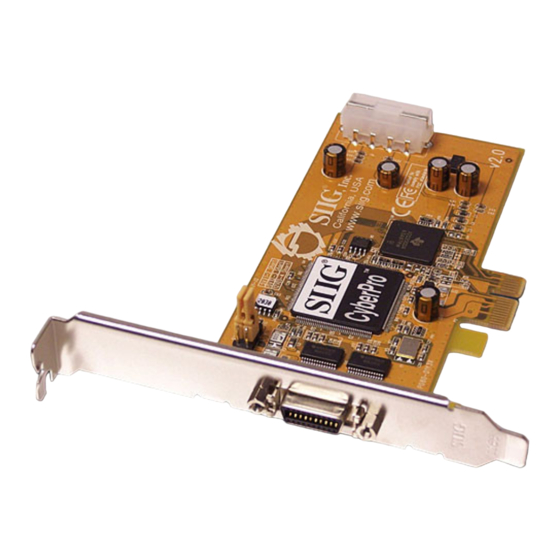

Introducing the CyberSerial PCIe
The CyberSerial PCIe high-speed serial I/O card provides
one additional 9-pin serial port.
Features and Benefits
•
Compliant with PCI Express Base Specification 1.0a
•
PCI Express 1-lane (x1) serial I/O card works with
PCI Express slots with different lane width
•
Installs in any available PCI Express slot and
provides one 9-pin RS232 serial port
•
Spare enhanced low profile bracket is included to
work in low profile chassis
•
32-byte FIFO buffers dramatically increase data
transmit/receive speed and supports data rates up
to 230Kbps
•
Works as standard RS232 port or with 5V or 12V
power output for devices that require power
System Requirements
•
PCI Express-enabled system with an available PCI
Express slot
•
Windows
(32-/64-bit)/Vista (32-/64-bit)
04-0393B
CyberSerial PCIe
Quick Installation Guide
2000/XP (32-/64-bit)/Server 2003
®
1
Advertisement
Related Manuals for SIIG CyberSerial PCIe
Summary of Contents for SIIG CyberSerial PCIe
-
Page 1: Quick Installation Guide
CyberSerial PCIe Quick Installation Guide Introducing the CyberSerial PCIe The CyberSerial PCIe high-speed serial I/O card provides one additional 9-pin serial port. Features and Benefits • Compliant with PCI Express Base Specification 1.0a • PCI Express 1-lane (x1) serial I/O card works with PCI Express slots with different lane width •... - Page 2 Package Contents • CyberSerial PCIe adapter and spare enhanced low profile bracket • "Y" split power cable • Driver CD and Quick Installation Guide Layout Jumper Power connector* Serial Port (9-pin) Figure 1: CyberSerial PCIe Board Layout Jumper Settings Short 2-3 = 0 volts (default)
-
Page 3: Hardware Installation
Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer’s reference manual for further information, if needed. Static Electricity Discharge may permanently damage your system. Discharge any static electricity build up in your body by touching your computer case for a few seconds. -
Page 4: Driver Installation
Driver Installation This section provides information on how to install the CyberSerial PCIe drivers. Windows 2000 At the Found New Hardware Wizard, click Next. Select Search for a suitable driver for my device (recommended), and click Next. Check Specify a location, uncheck the other boxes, then click Next. - Page 5 Click on the + (plus sign) in front of Ports (COM & LPT), CyberSerial 16Cxxx... should be displayed one time. Double click Multifunction adapters, SIIG CyberPro 1S board should be displayed. Windows Vista ™ At the Found New Hardware window, insert the driver CD, click Locate and install driver software (recommended), then click Continue.
- Page 6 Changing COM Port Address Some serial devices need a specific COM port in order to work. If your serial device works properly, do not change this setting. From the Device Manager window double click Ports (COM & LPT), then double click the CyberSerial PCI serial port you want to change.
-
Page 7: Technical Support And Warranty
Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. SIIG RMA department can also be reached at (510) 413-5333. - Page 8 6078 Stewart Avenue Fremont, CA 94538-3152, USA CyberSerial PCIe is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft , Windows and Windows Vista are registered trademarks of Microsoft Corporation. Other names used in this publication are for identification only and may be trademarks of their respective companies.
