Installation Manual
Introducing the DP CyberSerial 4S PCIe

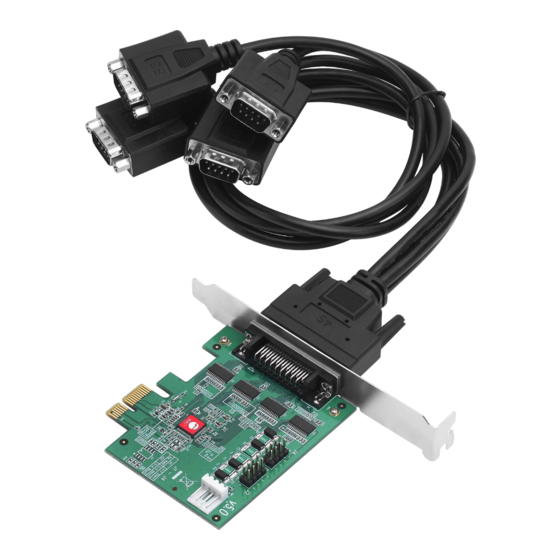

The DP CyberSerial 4S PCIe high-speed serial I/O card
provides four additional 9-pin serial ports.
Features and Benefits
•
Compliant with PCI Express Base Specification
Revision 1.0a
•
PCI Express 1-lane (x1) serial I/O card works with
PCI Express slots with different lane width
•
Installs in any available PCI Express slot and
provides four 9-pin RS232 serial ports via a fan-out
cable
•
Spare enhanced low profile bracket is included to
work in low profile chassis
•
128-byte FIFO buffers dramatically increase data
transmit/receive speed and supports data rates up
to 920 Kbps
•
Works as standard RS232 port or with 5V or 12V
power output for devices that require power
System Requirements
•
PCI Express-enabled system with an available PCI
Express slot
•
Windows
(32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000
04-0573B
DP CyberSerial 4S PCIe
Quick Installation Guide
7 (32-/64-bit) / Vista (32-/64-bit) / XP
®
1
Advertisement
Table of Contents
Related Manuals for SIIG DP CyberSerial 4S PCIe
Summary of Contents for SIIG DP CyberSerial 4S PCIe
- Page 1 DP CyberSerial 4S PCIe Quick Installation Guide Introducing the DP CyberSerial 4S PCIe The DP CyberSerial 4S PCIe high-speed serial I/O card provides four additional 9-pin serial ports. Features and Benefits • Compliant with PCI Express Base Specification Revision 1.0a •...
-
Page 2: Package Contents
Package Contents • DP CyberSerial 4S PCIe adapter and spare enhanced low profile bracket • 4-port fanout cable & "Y" split power cable • Driver CD and quick installation guide Layout Jumper settings Power connector* Fanout cable connector Figure 1: CyberSerial 4S PCIe Board Layout... -
Page 3: Hardware Installation
4-port Fan-out Cable Board connector 9-pin serial Figure 2: 4-port fanout cable Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer’s reference manual for further information, if needed. Static Electricity Discharge may permanently damage your system. -
Page 4: Driver Installation
Connect the Mini 4-port fan-out cable to the fan-out cable connector on the card. Driver Installation This section provides information on how to install the DP CyberSerial 4S PCIe drivers. Windows 7 (32-/64-bit) Right click Computer, click Manage, click Device Manager. Insert the driver CD. - Page 5 At Windows has successfully updated your driver software, click Close. 10. Repeat steps 6-9 three more times to complete the installation. Windows Vista (32-/64-bit) At the Found New Hardware window, click Locate and install driver software (recommended), then click Continue. Click Don't search online.
- Page 6 For 64-bit: Type D:\XP-Later\64-bit, and click Next, click Continue Anyway, then click Finish. (Change D: to match your CD/DVD-ROM drive letter) Repeat steps 1-3: For 32-bit: One time to complete the installation. For 64-bit: Four times, then restart Windows to complete the installation.
- Page 7 For Windows Server 2008: Right click Computer, click Manage, double click Diagnostics, click Device Manager. Click on the + (plus sign) in front of Ports (COM & LPT), CyberSerial 16C950... should be displayed four times. Double click Multi-port Serial adapters, SIIG CyberPro 2S board should be displayed.
-
Page 8: Changing Com Port Number
Changing COM Port Number Some serial devices need a specific COM port in order to work. If your serial device works properly, do not change this setting. From the Device Manager window double click Ports (COM & LPT), then double click the CyberSerial serial port you want to change. - Page 9 Blank Page...
- Page 10 Blank Page...
-
Page 11: Technical Support And Warranty
Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued. - Page 12 Fremont, CA 94538-3152, USA Phone: 510-657-8688 DP CyberSerial 4S PCIe is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective companies.
