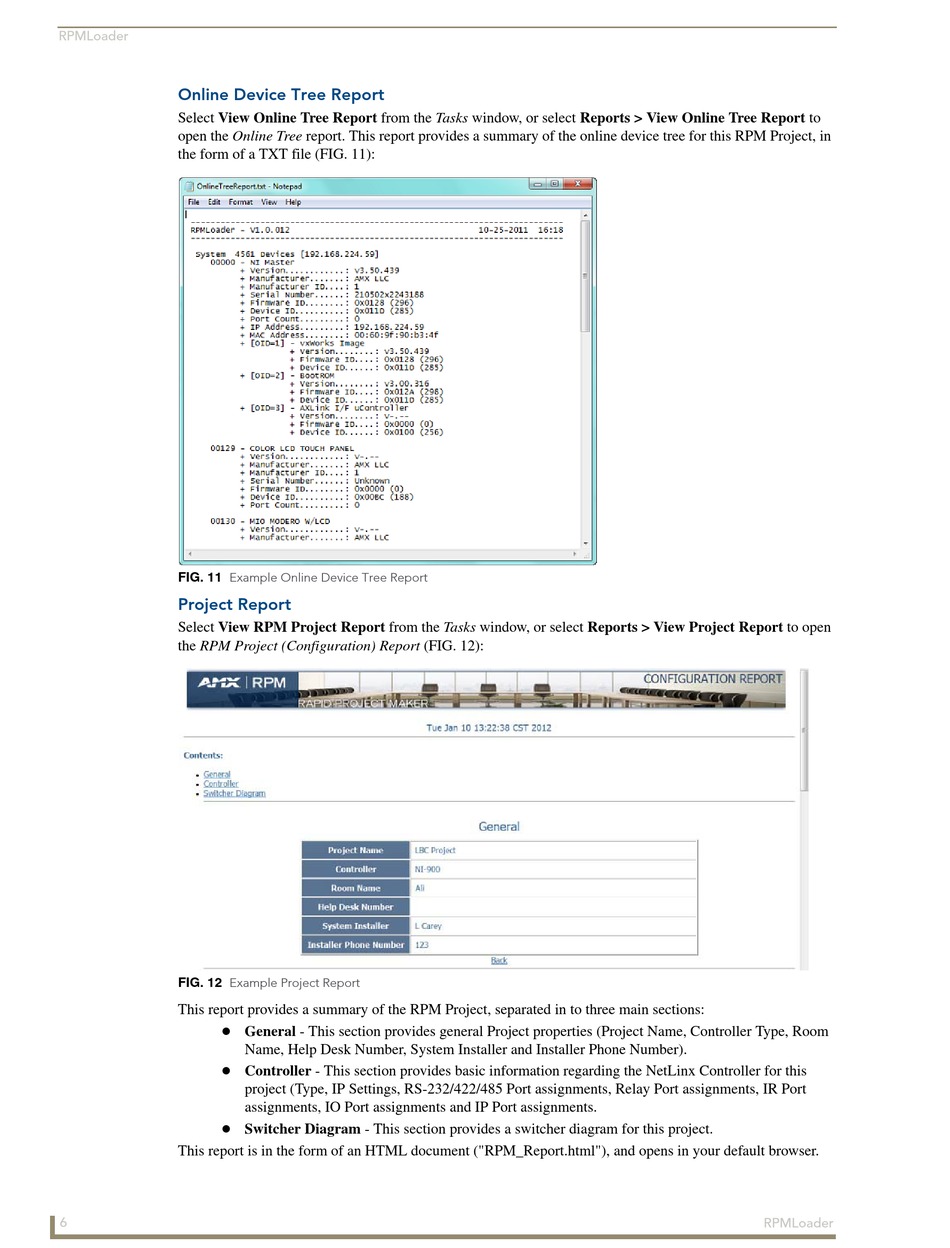

Online Device Tree Report
Select View Online Tree Report from the Tasks window, or select Reports > View Online Tree Report to
open the Online Tree report. This report provides a summary of the online device tree for this RPM Project, in
the form of a TXT file (FIG. 11):
FIG. 11
Example Online Device Tree Report
Project Report
Select View RPM Project Report from the Tasks window, or select Reports > View Project Report to open
the RPM Project (Configuration) Report (FIG. 12):
FIG. 12
Example Project Report
This report provides a summary of the RPM Project, separated in to three main sections:
This report is in the form of an HTML document ("RPM_Report.html"), and opens in your default browser.
6
General - This section provides general Project properties (Project Name, Controller Type, Room
Name, Help Desk Number, System Installer and Installer Phone Number).
Controller - This section provides basic information regarding the NetLinx Controller for this
project (Type, IP Settings, RS-232/422/485 Port assignments, Relay Port assignments, IR Port
assignments, IO Port assignments and IP Port assignments.
Switcher Diagram - This section provides a switcher diagram for this project.
