RPMLoader Tasks Window Options (Cont.)
Help

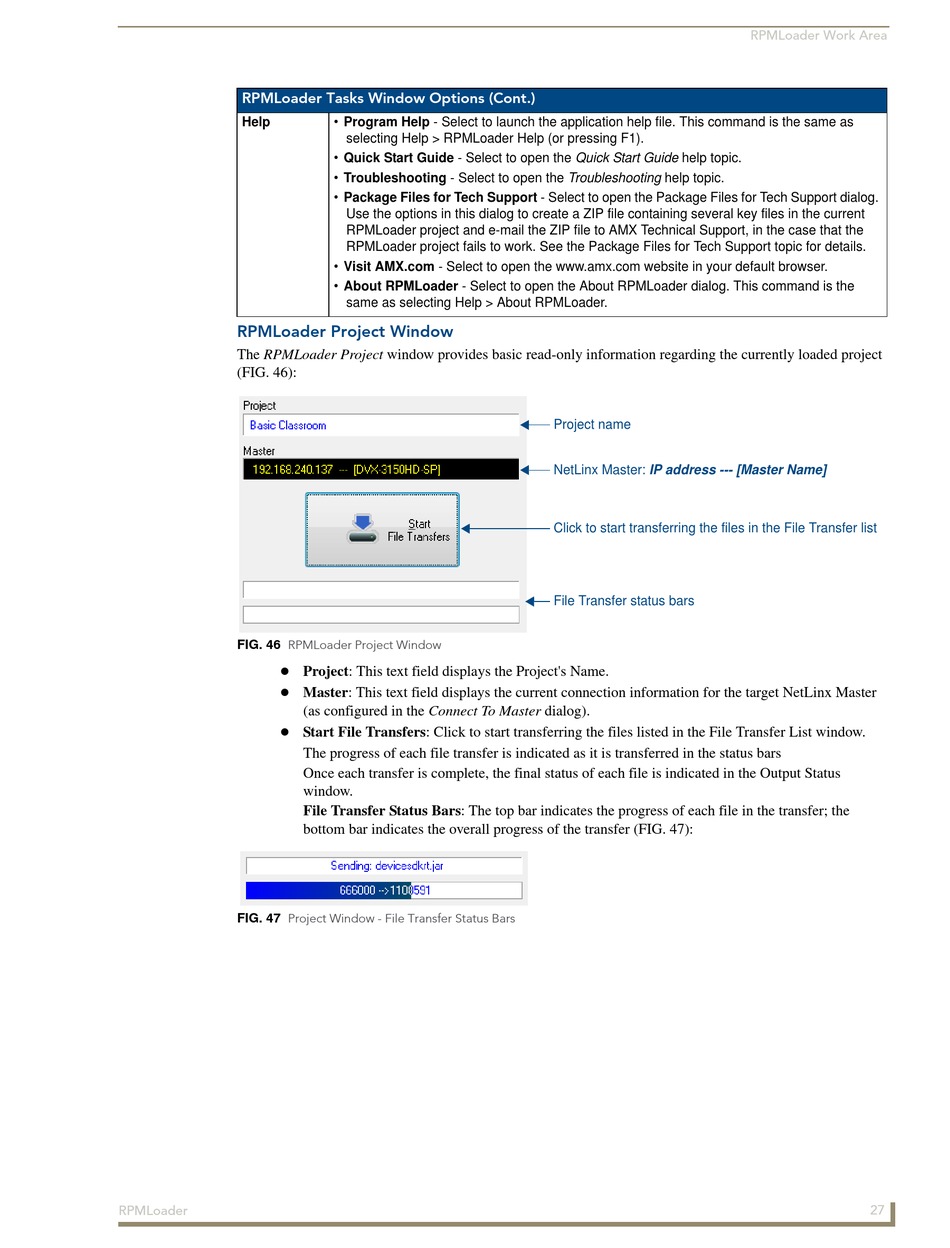

RPMLoader Project Window
The RPMLoader Project window provides basic read-only information regarding the currently loaded project
(FIG. 46):
FIG. 46
RPMLoader Project Window
FIG. 47
Project Window - File Transfer Status Bars
RPMLoader
• Program Help - Select to launch the application help file. This command is the same as
selecting Help > RPMLoader Help (or pressing F1).
• Quick Start Guide - Select to open the Quick Start Guide help topic.
• Troubleshooting - Select to open the Troubleshooting help topic.
• Package Files for Tech Support - Select to open the Package Files for Tech Support dialog.
Use the options in this dialog to create a ZIP file containing several key files in the current
RPMLoader project and e-mail the ZIP file to AMX Technical Support, in the case that the
RPMLoader project fails to work. See the Package Files for Tech Support topic for details.
• Visit AMX.com - Select to open the www.amx.com website in your default browser.
• About RPMLoader - Select to open the About RPMLoader dialog. This command is the
same as selecting Help > About RPMLoader.
Project: This text field displays the Project's Name.
Master: This text field displays the current connection information for the target NetLinx Master
(as configured in the Connect To Master dialog).
Start File Transfers: Click to start transferring the files listed in the File Transfer List window.
The progress of each file transfer is indicated as it is transferred in the status bars
Once each transfer is complete, the final status of each file is indicated in the Output Status
window.
File Transfer Status Bars: The top bar indicates the progress of each file in the transfer; the
bottom bar indicates the overall progress of the transfer (FIG. 47):
Project name
NetLinx Master: IP address --- [Master Name]
Click to start transferring the files in the File Transfer list
File Transfer status bars
RPMLoader Work Area
27
