Soft Fonts
))))))))))))))))))))))))))))))))))))))))))))

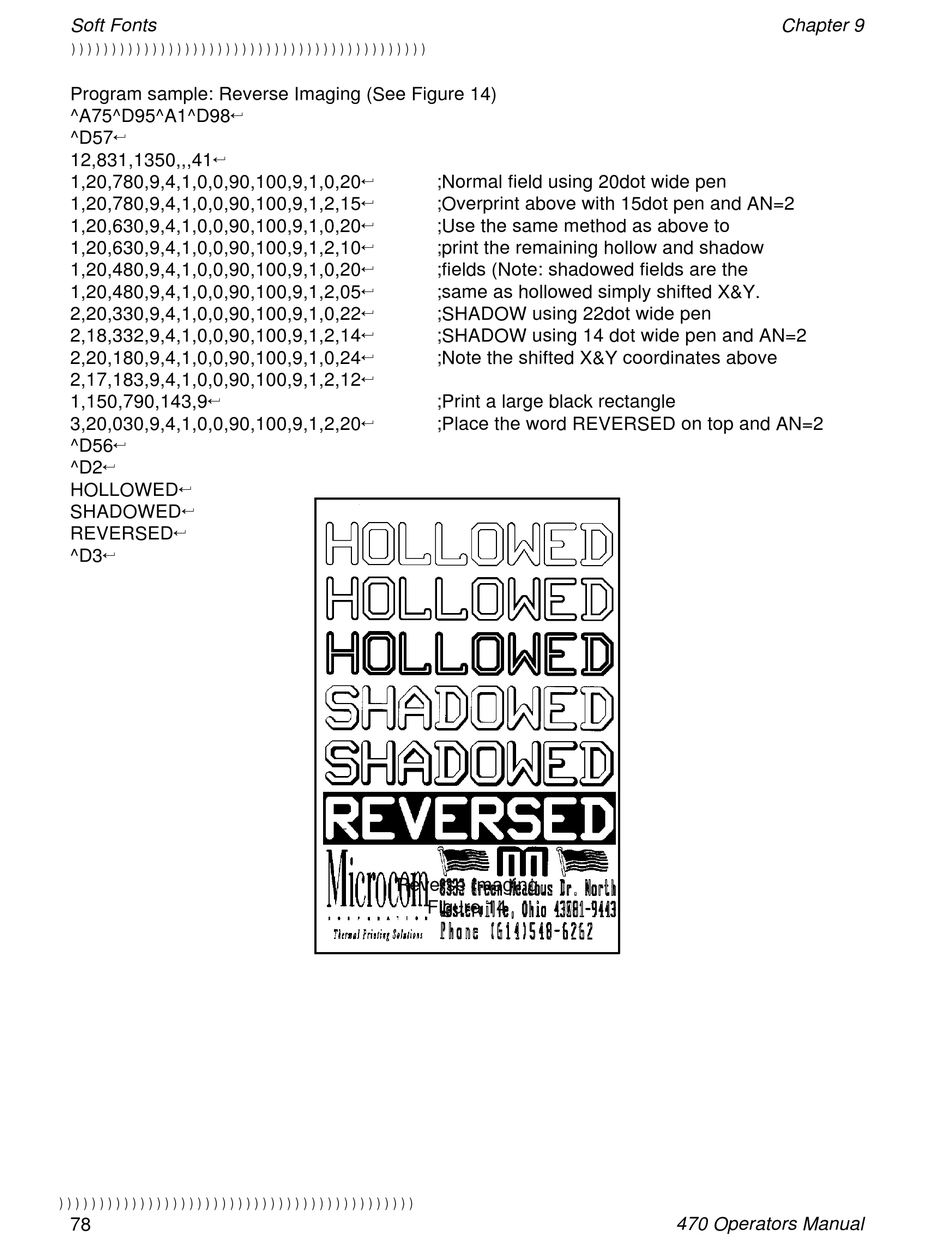

Program sample: Reverse Imaging (See Figure 14)
^A75^D95^A1^D985
^D575
12,831,1350,,,415
1,20,780,9,4,1,0,0,90,100,9,1,0,205
1,20,780,9,4,1,0,0,90,100,9,1,2,155
1,20,630,9,4,1,0,0,90,100,9,1,0,205
1,20,630,9,4,1,0,0,90,100,9,1,2,105
1,20,480,9,4,1,0,0,90,100,9,1,0,205
1,20,480,9,4,1,0,0,90,100,9,1,2,055
2,20,330,9,4,1,0,0,90,100,9,1,0,225
2,18,332,9,4,1,0,0,90,100,9,1,2,145
2,20,180,9,4,1,0,0,90,100,9,1,0,245
2,17,183,9,4,1,0,0,90,100,9,1,2,125
1,150,790,143,95
3,20,030,9,4,1,0,0,90,100,9,1,2,205
^D565
^D25
HOLLOWED5
SHADOWED5
REVERSED5
^D35
))))))))))))))))))))))))))))))))))))))))))))
78
;Normal field using 20dot wide pen
;Overprint above with 15dot pen and AN=2
;Use the same method as above to
;print the remaining hollow and shadow
;fields (Note: shadowed fields are the
;same as hollowed simply shifted X&Y.
;SHADOW using 22dot wide pen
;SHADOW using 14 dot wide pen and AN=2
;Note the shifted X&Y coordinates above
;Print a large black rectangle
;Place the word REVERSED on top and AN=2

Reverse Imaging

Figure 14
