Screws
Power Supply
Access Panel
2.
Slide the power supply access panel to the right and pull it out of the base unit.
PCI Access Panel
To remove the PCI access panel:
1.
Remove the top cover and left side panel.
2.
Lay the base unit on its right side.
3.
Remove the two screws at the bottom of the unit and the screw behind the PCI access panel.
4.

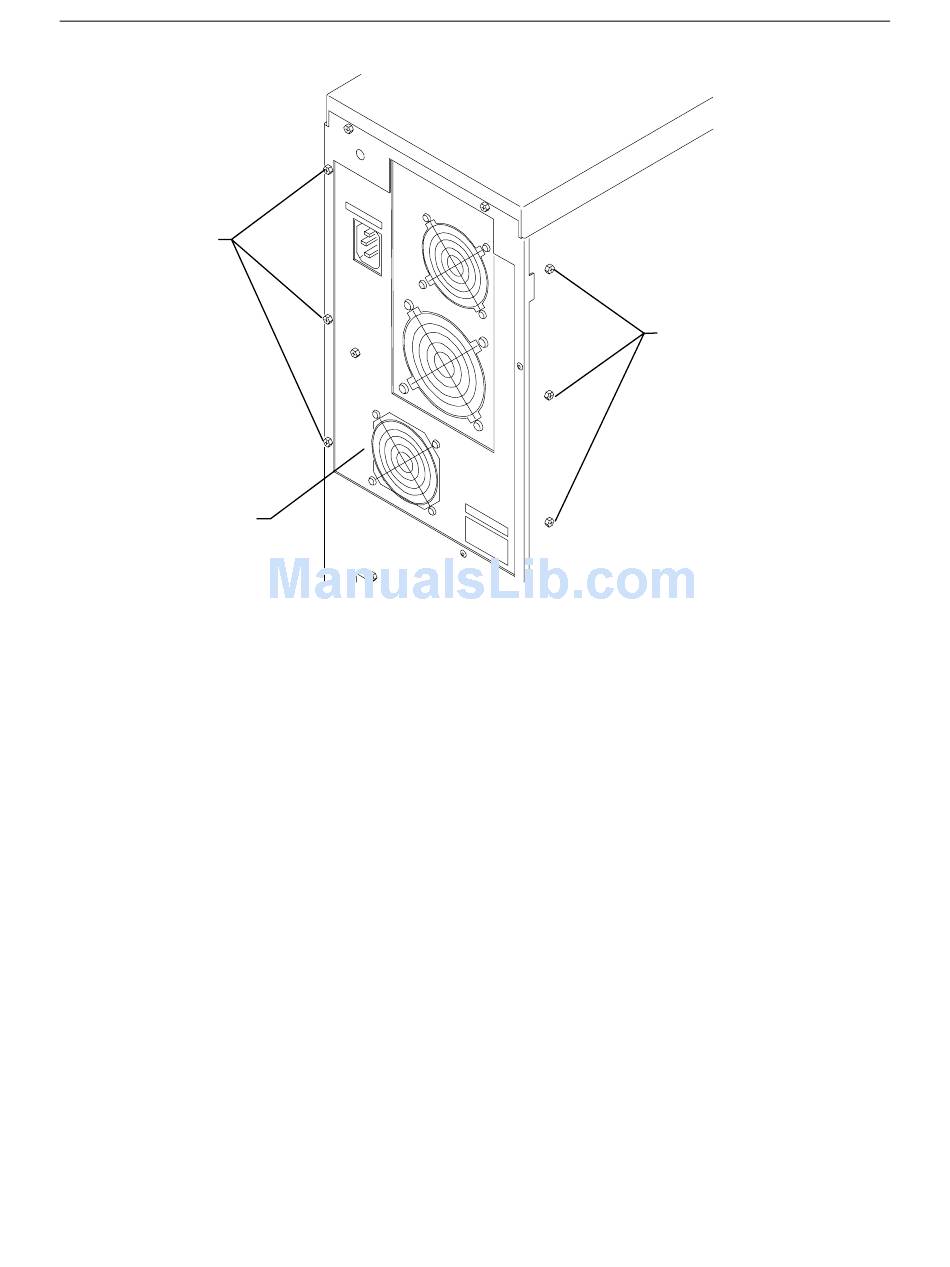

Slide the PCI access panel to the back of the base unit. Refer to the following figure.
Screws
