9. Install the two screws that secure the drive bracket assembly front mounting tabs to the
chassis.
10. Install the screw that secures the drive bracket assembly to the right side of the chassis.
11. Install the right side panel.
12. Connect the data cable and the power cable to the new drive.

Power Supply

See Chapter 7, "Power Supply and Cooling Fans," for details on the power supply.
To replace the power supply:
1. Note the location of all power cable connectors on the system board and peripheral
devices.
2. Disconnect all power cables from all internal devices and the system board.
3. Detach the air duct by removing the two screws securing it to the chassis, as shown in
the following figure, and then gently remove the air duct.

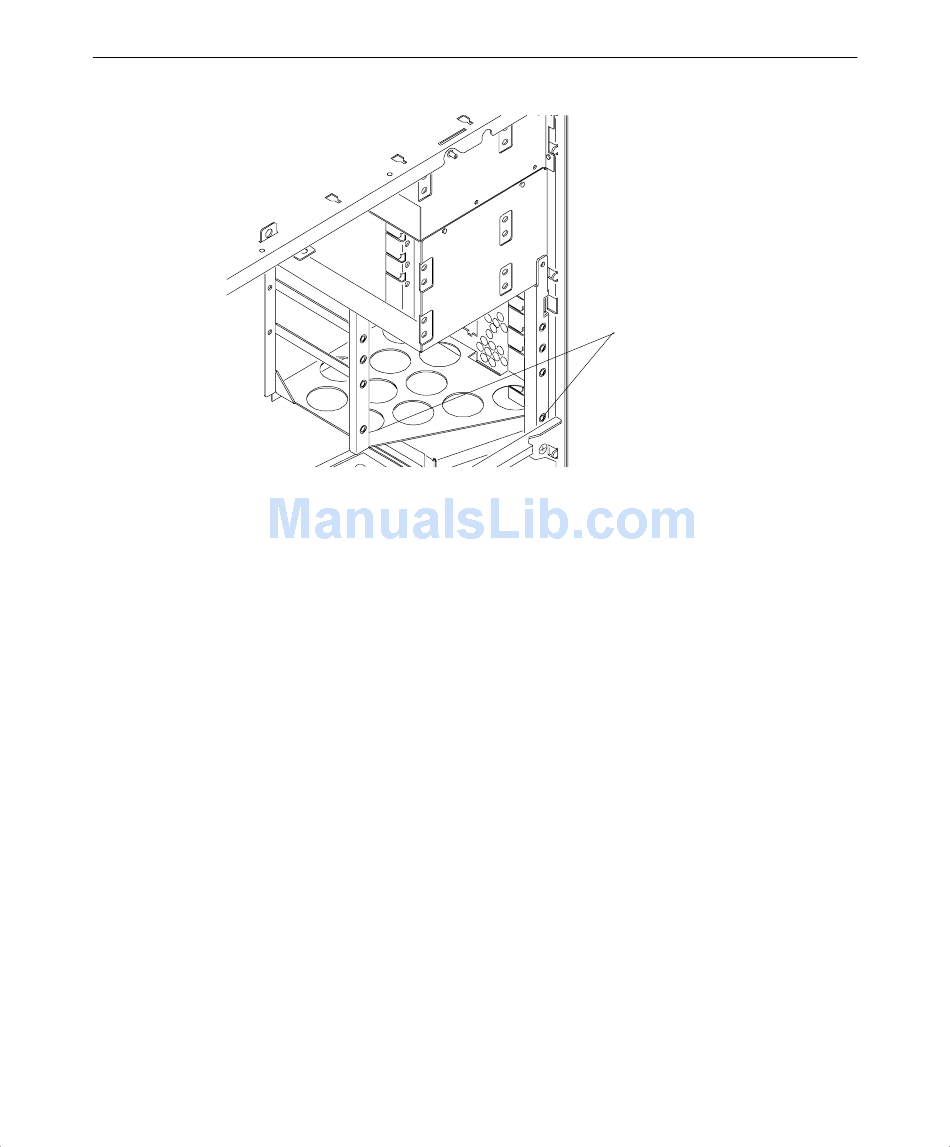

Screw holes for front mounting tabs
17
