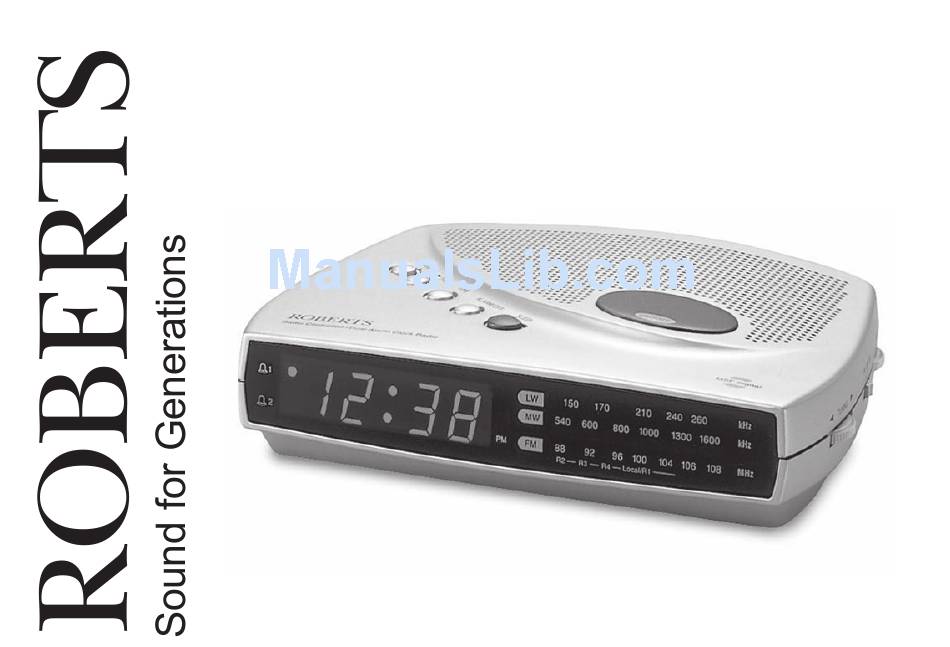

- Page 1 CR9931 3 Band Auto Time Set Dual Alarm Clock Radio Please read this manual before use...
- Page 2 Controls (Top) (Left side) (Right side) 6. Time set button 11. Volume control 1. Dimmer switch 2. Alarm selector switch 7. Reverse button 12. Waveband switch 3. Function switch 8. Forward button 13. Snooze button 4. Sleep button 9. Time capsule 14.
- Page 3 Controls (Front) 15. Alarm 2 indicator 18. LED dial pointer 16. Alarm 1 indicator 19. PM indicator 17. MSF indicator 20. Battery compartment (on underside)
-
Page 4: Automatic Clock Setting
Automatic clock setting When you plug in your clock radio for the first time it will receive and synchronise to the official UK standard frequency and time signal transmitter (MSF) located at Rugby in the U.K. At certain times of the year the MSF transmitter closes down for maintenance during this time it will be necessary to set the clock manually (see the sections headed Setting the time manually). -
Page 5: Setting The Time Manually
The clock uses a 12 hour display with a PM indicator. Ensure that the correct 12 hour cycle is selected. 3. After setting the time, the CR9931 will continue to run on its own internal time memory and will automatically synchronise itself with the radio time signal commencing at 00:00, 01:00, 02:00, 03:00 and 04:00. -
Page 6: Setting Alarm Times
Setting alarm times The alarms can be set to wake you by either the buzzer or the radio. Your alarm clock radio has 2 separate alarms which can be set to activate at different times. Setting alarm 1 1. Slide the Alarm function switch to the ‘ ’... -
Page 7: Checking The Alarm Times
Checking the Alarm Times 1. To check alarm 1 time, set the Alarm function switch to the ' position. 2. Press the ALARM/OFF button to display the alarm 1 time. 3. To check alarm 2 time, set the Alarm function switch to the ' position. -
Page 8: Setting The Alarms To Wake To Buzzer
Setting the alarms to wake to buzzer 1. Set the alarm time as previously described. 2. Set the Function switch to the 'Buzz' position. 3. Set the Alarm selector switch to the ' ' or' ' position. The corresponding Alarm indicators will light. The buzzer alarm will sound every day at the preset time for 60 minutes. -
Page 9: Snooze Control
Snooze control 1. The radio or buzzer alarm can be silenced for 9 minutes by pressing the Snooze button. This sequence can be repeated during the 60 minute alarm period. Sleep timer The radio can be set to turn off after a preset time has elapsed. 1. -
Page 10: Mains Supply
Back-up Battery (not necessary for the unit to function) Slide the battery cover catch in the direction of the arrow. Remove the Your CR9931 will operate from a supply of AC 230volts, 50Hz only. battery cover. Fit 2 x LR03 (AAA size) or equivalent batteries into the For your convenience this product is supplied with a plug which is fitted battery box. -
Page 11: Specifications
Specifications Circuit Features Power Requirements Loudspeaker 8 ohms Mains AC 230 volts, 50Hz only Output power 350mW Back-up Battery 2 X LR03 (AAA size) Aerial System Wire Aerial Frequency Coverage 87.5 - 108MHz Built-in Ferrite aerial 525 - 1610kHz 150 - 260kHz Built-in Ferrite aerial The Company reserves the right to amend the specification without notice. - Page 12 In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown below before taking further action.
