Related Manuals for Roberts CR9932
Summary of Contents for Roberts CR9932

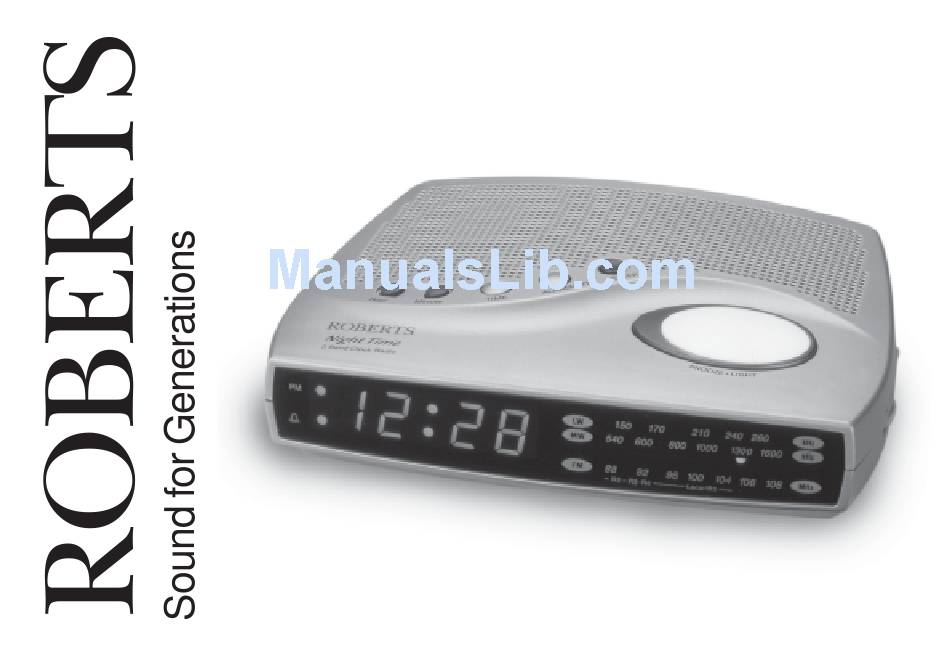

- Page 1 CR9932 3 Band Single Alarm Night Light Clock Radio Please read this manual before use...
- Page 2 Controls (Top) (Left side) (Right side) 5. Waveband selector 9. Alarm/Off button 1. Dimmer switch 6. Tuning control 10. Time button 2. Function switch 7. Snooze/night light button 11. Minute button 3. Headphone socket 8. Sleep button 12. Hour button 4.
- Page 3 Controls (Front) 13. PM indicator 14. LED dial pointer 15. Battery compartment (underside) 16. Alarm indicator If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)
-
Page 4: Switching On And Setting The Time
Switching on and setting the time Before using your clock radio you must first set the correct time. 1. Place the unit on a flat surface. Plug the power cord into the wall socket and switch on. 2. The clock display will flash 12:00. 3. -
Page 5: Listening To The Radio
Listening to the Radio 1. Turn on the radio by sliding the Function switch to the 'On ' position. The LED dial pointer will light up indicating that the radio is switched 2. Select the required waveband using the Waveband selector switch. - Page 6 Alarm The alarm can be set to wake you by either the buzzer or the radio. Setting alarm time 1. Press and hold down the Alarm/Off button. 2. Whilst holding down the Alarm/Off button press the Hour, or Minute buttons to set the time. Release the buttons when the correct alarm time is reached.
-
Page 7: Setting The Alarms To Wake To Radio
Setting the alarm to wake to buzzer 1. Set the alarm time as previously described. Set the Function switch to the Buzz position. The Alarm indicator will light. The alarm will sound every day at the preset time for 59 minutes. To turn off the alarm until the next day press the Alarm/Off button. -
Page 8: Snooze Control
Snooze control The radio or buzzer alarm can be silenced for 7 minutes by pressing the Snooze Light button. This sequence can be repeated whilst the alarm is sounding. Sleep timer The radio can be set to turn off after a preset time has elapsed. Press and hold down the Sleep button until the desired time is reached (maximum 59 minutes in 1 minute steps). -
Page 9: Night Light
Headphones (on rear) A Headphone Socket (3.5mm) is provided for use with either headphones or an earpiece . Inserting a plug automatically mutes the internal loudspeaker. Night light Press the Snooze button once to turn on the night light. Press again to turn it off. -
Page 10: Mains Supply
Back-up Battery (not necessary for the unit to function) Slide the battery cover catch in the direction of the arrow. Remove the The CR9932 will operate from a supply of AC 230volts, 50Hz only. battery cover. Fit a 9 volt IEC size 6LR61(6F22,PP3) or equivalent For your convenience this product is supplied with a plug which is battery into the compartment. -
Page 11: Specifications
Specifications Circuit Features Power Requirements Loudspeaker 75mm diameter 8 ohms Mains AC 230 volts, 50Hz only Output Power 0.3W RMS Back-up Battery IEC size 6LR61 (6F22,PP3) Aerial System Wire Aerial Frequency Coverage 87.5 - 108MHz Built-in Ferrite aerial 525 - 1610kHz 147 - 284kHz Built-in Ferrite aerial The Company reserves the right to amend the specification without notice. - Page 12 In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown below. These statements do not affect the statutory rights of a consumer.
