Summary of Contents for Roberts CR9961

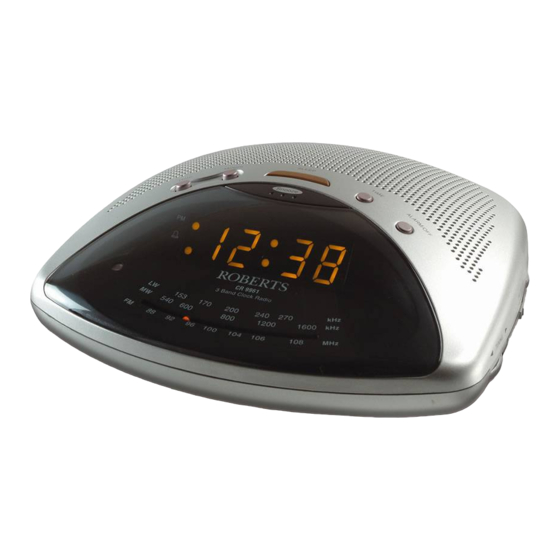

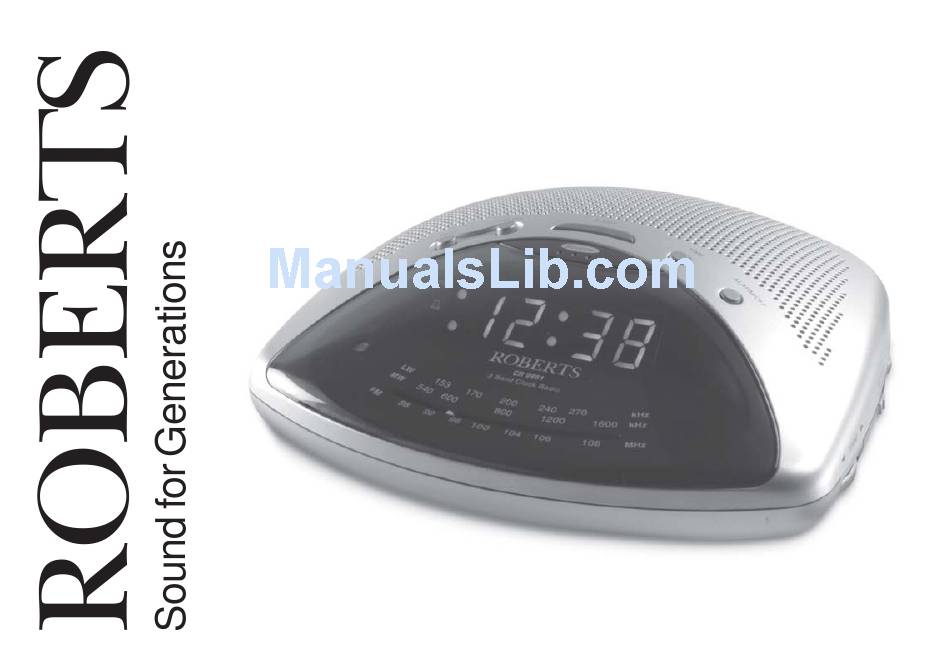

- Page 1 CR9961 3 Band Single Alarm Clock Radio Please read this manual before use...
-
Page 2: Table Of Contents
Contents Contents ... 2 Controls ... 3-4 Switching on and setting the time ... 5 Listening to the radio ... 6 Setting alarm time ... 7 Checking alarm time ... 7 Setting alarm to wake to buzzer ... 8 Setting alarm to wake to radio ... 8 Snooze control ... -
Page 3: Controls
Controls (Top) 1. Hour button 2. Minute button 3. Sleep button 4. Time button 5. Alarm off button 6. Snooze button... -
Page 4: Controls
Controls (Left) 7. Function switch 8. Tuning control 9. Wave Band selector (Right) 10. Volume control 11. Back-up battery compartment... -
Page 5: Switching On And Setting The Time
Switching on and setting the time Before using your clock radio you must first set the correct time. 1. Place the unit on a flat surface. Plug the mains lead into a wall socket and switch on the wall socket. -
Page 6: Listening To The Radio
3. Tune in to the desired station by rotating the Tuning control. The station frequency is indicated in the dial scale. The Wire aerial located on the rear of your clock radio is for FM reception. The wire should be fully extended and positioned for optimum reception. -
Page 7: Setting Alarm Time
Setting alarm time The alarm can be set to wake you by either the buzzer or the radio. 1. Press and hold down the ALARM/OFF button. 2. Whilst holding down the ALARM/OFF button press the Hour or Minute button to set the correct time. Release the buttons when the correct time is reached. -
Page 8: Setting Alarm To Wake To Buzzer
Setting the alarm to wake to buzzer 1. Set the alarm time as previously described. Set the function switch to the 'Buzz' position. The Alarm indicator will light. The buzzer alarm will sound every day at the preset time for 1 hour and 59 minutes. -
Page 9: Snooze Control
Snooze control 1. The buzzer or radio alarm can be silenced for 9 minutes by pressing the Snooze button. This sequence can be repeated several times during the alarm period. Sleep timer 1. The radio can be set to switch off automatically after a preset time has elapsed. -
Page 10: Headphones
Headphones 1. A Headphone Socket (3.5mm) located on the back of the unit is provided for use with either headphones or an earpiece. Inserting a plug automatically mutes the internal loudspeaker. -
Page 11: Specifications
Specifications Power Requirements Mains AC 230 volts, 50Hz Back-up Battery IEC size 6F22/06PP (6LR61, PP3) Frequency Coverage 87.5 - 108MHz 525 - 1605kHz 150 - 285kHz The Company reserves the right to amend the specification without notice. If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri) Circuit Features Loudspeaker... -
Page 12: General
MW/LW bands. Mains supply The CR9961 will operate from a supply of AC 230volts, 50Hz For your convenience this product is supplied with a plug which is fitted with a fuse of the appropriate rating. If the plug supplied is not suitable for your socket outlet, it should be removed by unscrewing the plug top, the terminal screws and removing the cable. -
Page 13: Notes
Notes... -
Page 14: Notes
Notes... -
Page 15: Guarantee
In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services department at the address shown on the rear of this manual before taking further action. - Page 16 ROBERTS RADIO TECHNICAL SERVICES 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline:- 020 8758 0338 (Mon-Fri) Issue 1...
Need help?
Do you have a question about the CR9961 and is the answer not in the manual?
Questions and answers
How do I cancel the alarm on model CR9961
To cancel the alarm on the Roberts CR9961:
- To turn off the alarm until the next day, press the ALARM/OFF button.
- To turn off the alarm permanently, set the Function switch to the 'Off' position.
This answer is automatically generated
