Roberts CR9945 Manual

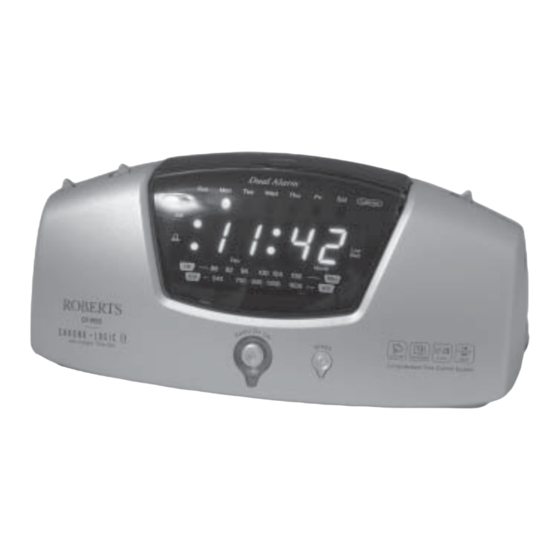

2 band auto set dual alarm clock radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

CR9945
2 Band Auto Set Dual Alarm
Clock Radio
Please read this manual before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR9945 and is the answer not in the manual?

Questions and answers

Related Manuals for Roberts CR9945

Summary of Contents for Roberts CR9945

  • Page 1 CR9945 2 Band Auto Set Dual Alarm Clock Radio Please read this manual before use...
  • Page 2 Controls (top) shown with Snooze cover open 1. Alarm 2 switch. 2. Alarm 1 switch. 3. Alarm 1 button. 4. Time zone button. 5. Down button. 6. Alarm mode button. 7. Year button. 8. Date button. 9. Up button. 10. Time button 11.
  • Page 3 Controls (front) 13. Alarm indicator. 14. Tuning scale. 15. Day of week indicators. 16. Time/Date display. 17. Low battery indicator. 18. Tuning scale 19. Sleep button 20. On/off button. If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)
  • Page 4 Controls (left and right side) 21. Dimmer switch. 22. Volume control. 23. Tuning control.

  • Page 5: Setting The Time

    Switching on 1. Place your clock radio on a flat surface. Plug the power cord into the wall socket and switch on. 2. After a few seconds the time, day and date will set automatically. Your clock radio is fitted with a long life back-up battery to maintain the factory set time, day and date.
  • Page 6 1. To set year hold down both Year and Date buttons. The display will change to show year 2. Whilst holding down Year and Date buttons set correct year using Up or Down buttons. When the Year and Date buttons are released the display will revert to showing Day/Date 1.

  • Page 7: Setting Alarm Times

    Setting alarm times Your alarm clock radio has two separate alarms which can be set to activate at different times. The alarms can be set to wake you by either the buzzer or the radio. Setting alarm 1 1. Press and hold down the button.

  • Page 8: Alarm Modes

    Day/month display 1. Press and hold down the snooze button to display the day/month. 2. Release the snooze button to return to normal time display. Alarm modes Your clock radio has three alarm modes for each of the alarms. The alarm modes are Weekdays only - the alarm will switch on Monday to Friday.

  • Page 9: Weekend Alarm

    Weekend alarm 1. Press and hold down the buttons (depending on which alarm you wish to set mode for) 2. Whilst holding down buttons repeatedly press and release the Alarm mode button until Sat and Sun indicators are lit. Everyday alarm 1.

  • Page 10: Checking Alarm Times

    Checking alarm times 1. Press and hold down either buttons. The display will change from normal time to alarm time - days of the week indicators will show days of the week on which alarm will activate. Release the Alarm button to return to normal time Listening to the radio 1.
  • Page 11 Setting the alarms to wake to buzzer 1. Set the alarm time as previously described. Set the Alarm 1 or Alarm 2 switch to the “Buzz” position. The Alarm indicator will light. 2. The buzzer alarm will sound every day at the preset time for 1 hour. To switch off the alarm until the next day press the On/Off button.

  • Page 12: Snooze Control

    Snooze control The radio or buzzer alarm can be silenced for 9 minutes by pressing the Snooze button. This sequence can be repeated whilst the alarm is sounding. Sleep timer You can program you clock radio to play the radio for up to 90 minutes and then switch off.

  • Page 13: Dimmer Switch

    Dimmer switch The Dimmer switch located on the left side of your clock radio will allow you to adjust the intensity of the clock display to suit room brightness. Backup battery As with all batteries, eventually the built in lithium battery will need to be replaced.

  • Page 14: Changing The Backup Battery

    Changing the backup battery 1. Purchase a replacement lithium backup battery type CR2032 or equivalent. 2. Remove the fresh battery from its packaging so that it is ready to install. 3. Important. Maintain connection to AC mains supply during battery replacement.
  • Page 15 Time Zones Your clock radio is set up to UK time zone 00 GMT (UTC). Should you wish to take your clock radio to other countries the time zone will need to be reset. 1. Press and hold down the Time Zone button - the display will show the time zone currently selected e.g 00.

  • Page 16: Specifications

    Specifications Circuit Features Power Requirements Loudspeaker 8 ohms Mains AC 230 volts, 50Hz only Output power 250mW Back-up Battery 1 x CR2032 Lithium Aerial System Wire Aerial Frequency Coverage 87.5 - 108MHz Built-in Ferrite aerial 525 - 1610kHz The Company reserves the right to amend the specification without notice.

  • Page 17: Mains Supply

    RED. Blue (Neutral) Mains supply The CR9945 will operate from a supply of AC 230volts, 50Hz only. For your convenience this product is supplied with a plug which is fitted Mains Lead with a fuse of the appropriate rating. If the plug supplied is not suitable for...
  • Page 18 Notes...
  • Page 19 In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown on the rear of this manual before taking further action.
  • Page 20 ROBERTS RADIO TECHNICAL SERVICES 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline :- 020 8758 0338 (Mon-Fri during office hours) Issue 2...
