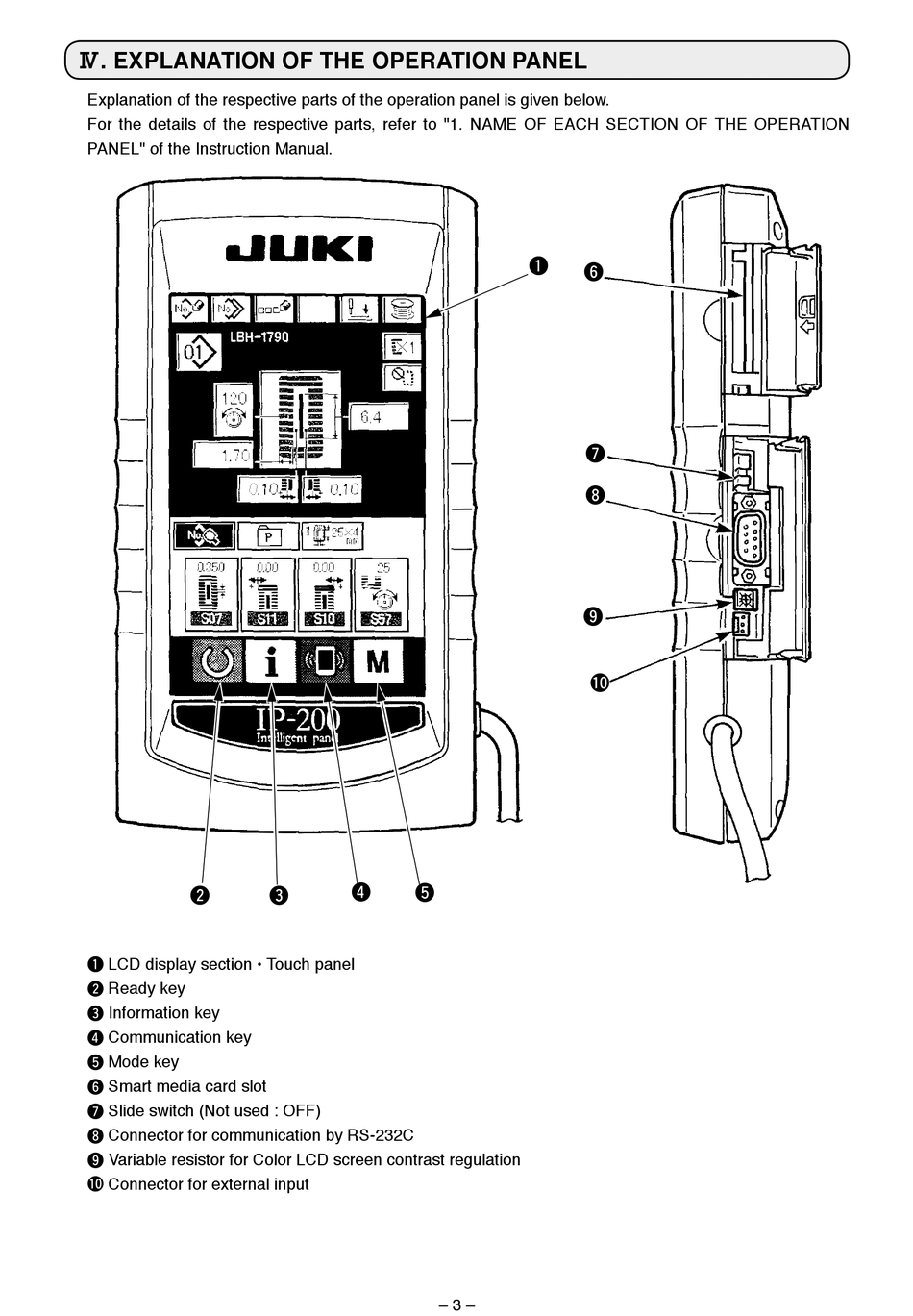

$. EXPLANATION OF THE OPERATION PANEL

Explanation of the respective parts of the operation panel is given below.
For the details of the respective parts, refer to "1. NAME OF EACH SECTION OF THE OPERATION
PANEL" of the Instruction Manual.
2
1 LCD display section • Touch panel
2 Ready key
3 Information key
4 Communication key
5 Mode key
6 Smart media card slot
7 Slide switch (Not used : OFF)
8 Connector for communication by RS-232C
9 Variable resistor for Color LCD screen contrast regulation
!0 Connector for external input
4
5
3
– 3 –
1
6
7
8
9
!0
