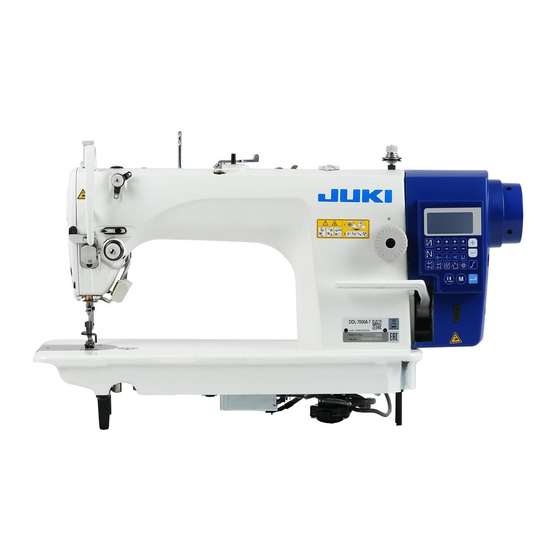

JUKI DDL-7000A-7 Instruction Manual

JUKI DDL-7000A-7 Instruction Manual

Long pitch kit
Hide thumbs Also See for DDL-7000A-7:

Advertisement

DDL-7000A-7
Long pitch kit
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDL-7000A-7 and is the answer not in the manual?

Questions and answers

Summary of Contents for JUKI DDL-7000A-7

  • Page 1 DDL-7000A-7 Long pitch kit INSTRUCTION MANUAL...
  • Page 2 1. General The long pitch kit is an optional part kit that changes the maximum stitch length to 7 mm (standard: 5 mm). Target model: DDL-7000AH-7 (for heavy-weight materials) 2. List of long pitch kit parts Part number of the long pitch kit: 40234068 (with four teeth) Description Parts No.
  • Page 3 4. Installation procedure 1) Replace the stitch dial with the one for long pitch. Turn the current stitch ❶ dial clockwise to align its scale mark "0" to the marker dot A on the machine arm. Then, remove the setscrew. Attach the stitch dial (22971402) ❷...
  • Page 4 5) Align the scale mark "7" of the stitch dial ❷ with the marker dot on the machine arm. Place a spac- er ❼ with plate thickness of 1 mm between the ❻ reverse feed lever ❺ and the reverse feed lever stopper ❻...
  • Page 5 10) Attach the side plate ❹ . ❹ (Caution) 1. In the case of using the stitch pitch that is larger than the one with the scale mark "5" of the stitch dial ❷, the maximum sewing speed should be set to 3500 sti/min or less. 2.
