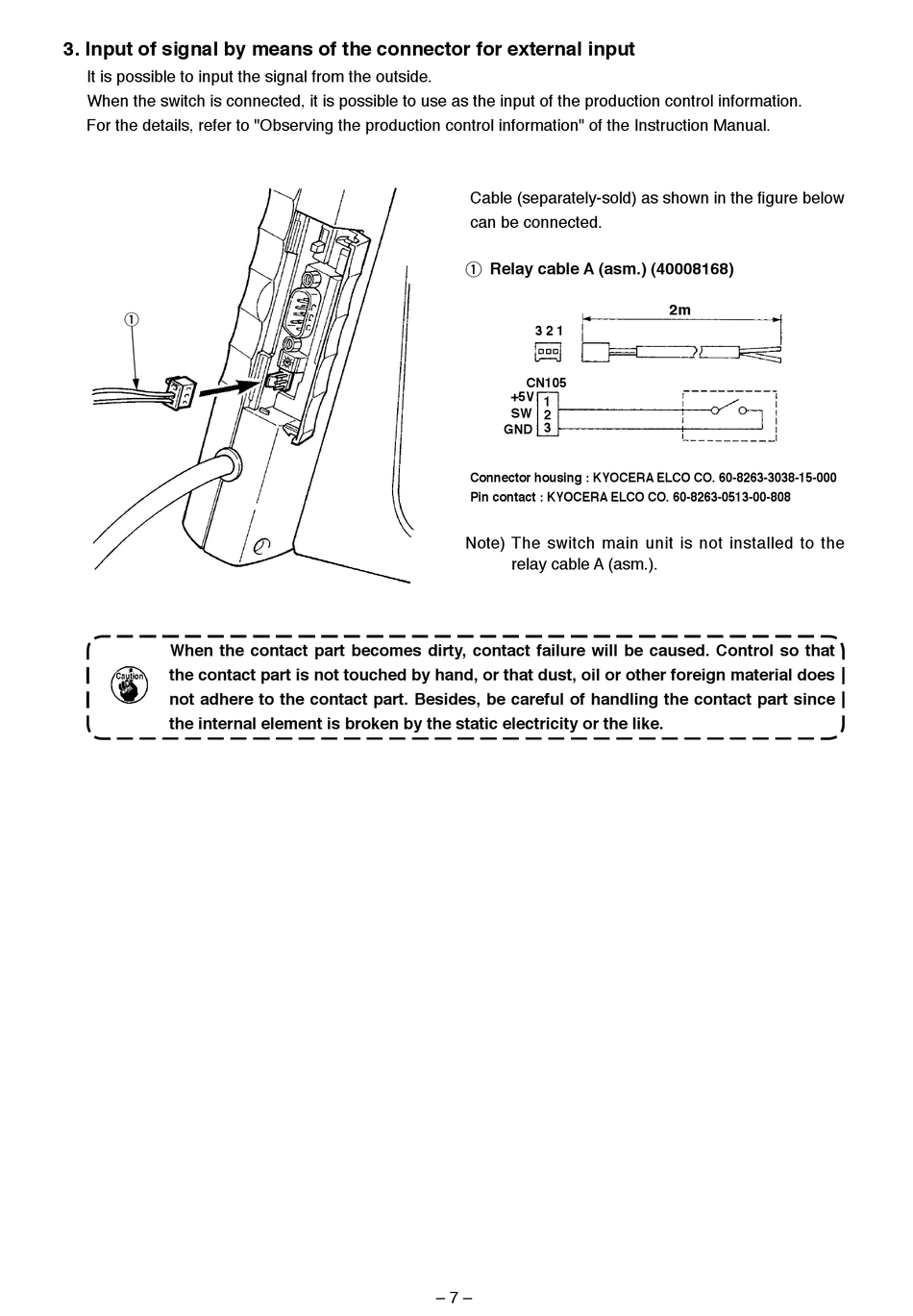

3. Input of signal by means of the connector for external input

It is possible to input the signal from the outside.
When the switch is connected, it is possible to use as the input of the production control information.
For the details, refer to "Observing the production control information" of the Instruction Manual.
1
When the contact part becomes dirty, contact failure will be caused. Control so that
the contact part is not touched by hand, or that dust, oil or other foreign material does
not adhere to the contact part. Besides, be careful of handling the contact part since
the internal element is broken by the static electricity or the like.
Cable (separately-sold) as shown in the figure below
can be connected.
1 Relay cable A (asm.) (40008168)
3 2 1
CN105
+5V
1
SW
2
3
GND
Connector housing : KYOCERA ELCO CO. 60-8263-3038-15-000
Pin contact : KYOCERA ELCO CO. 60-8263-0513-00-808
Note) The switch main unit is not installed to the
relay cable A (asm.).
– 7 –
2m
