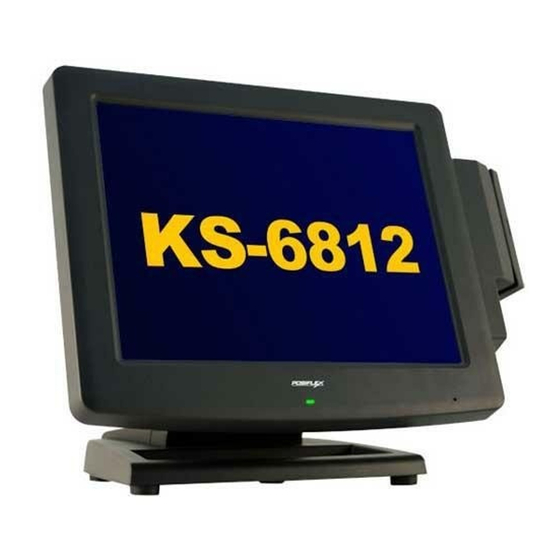

Fan free touch terminal
Hide thumbs Also See for KS-6812:

Advertisement

Quick Links

KS - 6812
Fan Free Touch Terminal
User's Manual
Rev.: Original
FCC Notes:
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions manual, may cause interference
to radio communications. It has been tested and found to comply with limits for a Class
A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to
provide reasonable protection against interference when operated in a commercial
environment. Operation of this equipment in a residential area is likely to cause
interference in which case the user at his own expense will be required to take whatever
measures to correct the interference.
Warranty Limits:
Warranty terminates automatically when any person other than the authorized
technicians opens the machine. The user should consult his/her dealer for the problem
happened. Warranty voids if the user does not follow the instructions in application of
this merchandise. The manufacturer is by no means responsible for any damage or
hazard caused by improper application.
About This Manual:
Posiflex Technologies, Inc. has made every effort for the accuracy of the content in this
manual. However, Posiflex will assume no liability for any technical inaccuracies or
editorial or other errors or omissions contained herein, nor for direct, indirect,
incidental, consequential or otherwise damages, including without limitation loss of
data or profits, resulting from the furnishing, performance, or use of this material.
This information is provided "as is" and Posiflex Technologies, Inc. expressly
disclaims any warranties, expressed, implied or statutory, including without limitation
implied warranties of merchantability or fitness for particular purpose, good title and
against infringement.
The information in this manual contains only essential hardware concerns for general
user and is subject to change without notice. Posiflex reserves the right to alter product
designs, layouts or drivers without notification. The system integrator shall provide
applicative notices and arrangement for special options utilizing this product. The user
may find the most up to date information of the hardware from web sites:
http://www.posiflex.com or http://www.posiflex.com.tw or http://www.posiflexusa.com
All data should be backed-up prior to the installation of any drive unit or storage
peripheral. Posiflex will not be responsible for any loss of data resulting from the use,
disuse or misuse of this or any other Posiflex product.
All rights are strictly reserved. No part of this documentation may be reproduced,
stored in a retrieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, or otherwise, without prior express written consent from
Posiflex Technologies, Inc. the publisher of this documentation.
© Copyright Posiflex Technologies, Inc. 2009
All brand and product names and trademarks are the property of their respective holders.
Part 1
P/N: 16590900010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS-6812 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX KS-6812

  • Page 1 KS - 6812 Fan Free Touch Terminal User’s Manual Rev.: Original FCC Notes: This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment.
  • Page 2 ALERT TO OUR HONORABLE CUSTOMERS: Please always read thoroughly all the instructions and documents delivered with the product before you do anything about it. Don’t take any premature action before you have a full understanding of the consequences. This product contains inside a Lithium battery. Please always follow local environmental protection laws / regulations for disposal of used batteries and always replace only with battery of same type.
  • Page 3: Product Pictures

    INTRODUCTION PRODUCT PICTURES Front View Rear View Side Views Bottom View Inside Base PARTS IDENTIFICATION 1. Main unit 2. Touch panel / LCD panel Power indicator Base stand Part 3...
  • Page 4: Product Features

    5. Optional side mount kit HDD cover CF memory card reader 7. Hinge cover Base back cover 9. Cable exit 10. Power switch 11. LCD brightness up button 12. LCD brightness down button 13. Base back cover hook 14. USB ports on left side 15.
  • Page 5 5. one VGA port 6. one SATA data port plus one HDD power connector for optional SATA HDD in base eSATA 7. one audio jack for stereo line output 8. one CR port capable of controlling 2 cash drawers max. 9.
  • Page 6 TECHNICAL MANEUVERS Applicable technical maneuvers in KS-6812 series include serial COM port power supply settings, VGA port power supply setting, system CMOS data reset, DRAM upgrades, physical access to CF memory card if the CF card reader option is installed and installation of optional SATA HDD in base.
  • Page 7 HDD cables must be still secured. BASE MOUNT UPGRADE KIT (OPTION) Pole Display For the KS-6812 series with mini slim base, the LCD customer display PD-309/U or the VFD PD- 2605/U can be attached to either rear corner of base bottom.
  • Page 8: Preparing The Main Unit

    CONNECTING CASH DRAWER (OPTION) The RJ11 connector in main connection area of a KS-6812 system can be used for controlling most of the common cash drawers available on the market. However, it is most recommended that the Posiflex CR-2000 or CR- 2200 or CR-3100 or CR-3200 or CR-4000 or CR-4100 or CR-4210 or CR- 6310 be used for best compliance.
  • Page 9: Connecting Cables

    The KS system will directly control the cash drawer using the cash drawer port (CR) both to operate the opening mechanism and to monitor the drawer open status. Both functions may be accomplished under software control of the COM1 serial port. Use the cable supplied with the cash drawer (Part No.
  • Page 10: Operating System Recovery

    CF Card no longer bootable. For KS-6812 systems preloaded with Windows XP Pro or WEPOS on HDD, Posiflex provides recovery DVD delivered with the touch terminal for the preloaded operating system.
  • Page 11: Application Environment

    USING THE TOUCH TERMINAL APPLICATION ENVIRONMENT It is very important that you check the following operational guidelines: Ventilation This terminal must NOT be operated in an environment with restricted ventilation. There must be at least 25 mm air clearance around any top or side ventilation holes with a free flow of air around the unit at ALL times for the installation.
  • Page 12: Brightness Control

    LAN chip ID of the system for the caller system to wake up. When the KS-6812 system is turned off after a successful boot up with external power continuously supplied, the preset automatic power on functions will keep monitoring for the preset conditions and turn on the system when the preset conditions are met.
  • Page 13: Customer Display

    / or +12 V DC through pin 1 LM-3112 SERIAL PORTS – COM1/2/3 In KS-6812 system, there are 3 serial ports available. All can supply a +5 V DC through pin 9 after proper jumper setting change. COM1/2 ports are standard RS232 serial ports as status at delivery.
  • Page 14: Touch Panel

    CF MEMORY CARD READER If the CF card reader is installed and the CF card is used for system data storage device, it is recognized by the system as the IDE channel 1 Master device. The CF memory card reader inside main unit accepts a type II CF memory card.
  • Page 15 Posiflex USB Touch Manager A program named “Posiflex USB Touch Manager” and a right-click sticky button tool in the program group “Posiflex USB Touch Tools” is installed in the preloaded Windows system with a USB interface touch panel controller. This program can also be obtained by download from the POSIFLEX web site.
  • Page 16 Monitor The 2 LCD display monitor LM- 3112 can be attached to the rear edge of base bottom of KS-6812 series if no pole display is attached. Refer to the picture at left. Use the 2 attached screws to fix the metal base of the LM to the bottom plate of mini slim base at the circled positions.
  • Page 17 Part 17...
  • Page 18 Part 18...
  • Page 19 Part 19...
  • Page 20 T31454 Part 20...
