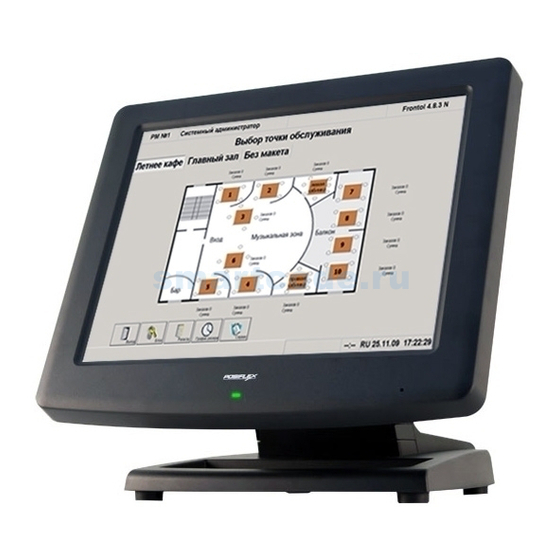

Fan free touch terminal

Advertisement

Quick Links

KS - 6812 / KS-6812A
Fan Free Touch Terminal
User's Manual
Rev.: A0
FCC Notes:
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions manual, may cause interference
to radio communications. It has been tested and found to comply with limits for a Class
A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to
provide reasonable protection against interference when operated in a commercial
environment. Operation of this equipment in a residential area is likely to cause
interference in which case the user at his own expense will be required to take whatever
measures to correct the interference.
Warranty Limits:
Warranty terminates automatically when any person other than the authorized
technicians opens the machine. The user should consult his/her dealer for the problem
happened. Warranty voids if the user does not follow the instructions in application of
this merchandise. The manufacturer is by no means responsible for any damage or
hazard caused by improper application.
About This Manual:
Posiflex Technology, Inc. has made every effort for the accuracy of the content in this
manual. However, Posiflex will assume no liability for any technical inaccuracies or
editorial or other errors or omissions contained herein, nor for direct, indirect,
incidental, consequential or otherwise damages, including without limitation loss of
data or profits, resulting from the furnishing, performance, or use of this material.
This information is provided "as is" and Posiflex Technology, Inc. expressly disclaims
any warranties, expressed, implied or statutory, including without limitation implied
warranties of merchantability or fitness for particular purpose, good title and against
infringement.
The information in this manual contains only essential hardware concerns for general
user and is subject to change without notice. Posiflex reserves the right to alter product
designs, layouts or drivers without notification. The system integrator shall provide
applicative notices and arrangement for special options utilizing this product. The user
may find the most up to date information of the hardware from web sites:
http://www.posiflex.com or http://www.posiflex.com.tw or http://www.posiflexusa.com
All data should be backed-up prior to the installation of any drive unit or storage
peripheral. Posiflex will not be responsible for any loss of data resulting from the use,
disuse or misuse of this or any other Posiflex product.
All rights are strictly reserved. No part of this documentation may be reproduced,
stored in a retrieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, or otherwise, without prior express written consent from
Posiflex Technology, Inc. the publisher of this documentation.
© Copyright Posiflex Technology, Inc. 2009
All brand and product names and trademarks are the property of their respective holders
P/N: 16590900020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS-6812A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX KS-6812A

  • Page 1 About This Manual: Posiflex Technology, Inc. has made every effort for the accuracy of the content in this manual. However, Posiflex will assume no liability for any technical inaccuracies or editorial or other errors or omissions contained herein, nor for direct, indirect, incidental, consequential or otherwise damages, including without limitation loss of data or profits, resulting from the furnishing, performance, or use of this material.
  • Page 2 ALERT TO OUR HONORABLE CUSTOMERS: Please always read thoroughly all the instructions and documents delivered with the product before you do anything about it. Don’t take any premature action before you have a full understanding of the consequences. This product contains inside a Lithium battery. Please always follow local environmental protection laws / regulations for disposal of used batteries and always replace only with battery of same type.
  • Page 3: Product Pictures

    INTRODUCTION PRODUCT PICTURES Front View Rear View Side Views Bottom View Inside Base Page 2...
  • Page 4: Parts Identification

    PARTS IDENTIFICATION 1. Main unit 2. Touch panel / LCD panel 3. Power indicator 4. Base stand 5. Optional side mount kit 6. HDD cover CF memory card reader 7. Hinge cover 8. Base back cover 9. Cable exit 10. Power switch 11.
  • Page 5 Various I/O ports supported, including: 1. 3 serial ports with 2 in form of DB9 connectors and 1 in form of 10 pin RJ45 type modular connector. All are with capability for +5V DC support. / +12V with conversion cable. 2.
  • Page 6 SATA HDD in base. All these technical maneuver operations require purchase of applicable Technical Manual from Posiflex or consultation from Posiflex authorized dealers and should be handled only by a qualified technician.
  • Page 7 TILTING LCD PANEL The tilting mechanism in KS-6812/6812A series utilizes hinges and there is no particular skill to turn the LCD panel to most suitable angle for either viewing or convenience in cable connection / disconnection. DISCONNECTING ALL CABLES With the LCD panel turned to most backward position, the main I/O connector area will be easily accessible at bottom side of the main unit.
  • Page 8 hole on the trunk as triangle marked to come out of the front side of trunk. Connect all the cable ends to main unit. Should there is the option SATA HDD in base installed, please double check that the HDD cables must be still secured.
  • Page 9: Preparing The Main Unit

    Please note that only those qualified technicians may adjust in the service window with information from Jumpers Posiflex and the contents in the service window may change without notice as time develops. The option LPT conversion cable should be applied to the connector as triangle marked in the picture.
  • Page 10: Connecting Cables

    The RJ11 connector in main connection area of a KS-6812/6812A system can be used for controlling most of the common cash drawers available on the market. However, it is most recommended that the Posiflex CR-2000 or CR- 2200 or CR-3100 or CR-3200 or CR-4000 or CR-4100 or CR-4210 or CR- 6310 be used for best compliance.
  • Page 11 Adjust the slack of each cable. Use the cable tie arrowed in the right picture to hold all the cables together. Re-adjust the tilt angle of the screen for best viewing. Connect the cables to appropriate external devices through the cable exit at the bottom of stand assembly.
  • Page 12: Operating System Recovery

    CF Card no longer bootable. For KS-6812/6812A systems preloaded with Windows XP Pro, WEPOS or POSReady on HDD, Posiflex provides recovery DVD delivered with the touch terminal for the preloaded operating system. The System Integrator shall take care of software restoration after OS recovered. A Posiflex supplied USB interface COMBO drive will be required for such action.
  • Page 13: Application Environment

    USING THE TOUCH TERMINAL APPLICATION ENVIRONMENT It is very important that you check the following operational guidelines: Ventilation This terminal must NOT be operated in an environment with restricted ventilation. There must be at least 25 mm air clearance around any top or side ventilation holes with a free flow of air around the unit at ALL times for the installation.
  • Page 14 Hardware Power Switch The power switch located at left side of the main unit is a tactile pushbutton switch. This switch controls the power on/off of the system. After external power is preset, this switch turns the system on when pushed only. This switch turns the system off when pushed again during power on status.
  • Page 15: Brightness Control

    DC power to the 2 display monitor, have a qualified technician to set an internal jumper in KS main unit to supply the required power through the VGA connector according to Posiflex technical information. Do not connect other Page 14...
  • Page 16 and / or +12 monitor to this port before the power in this port is disabled. V DC through pin 1 LM-3112 SERIAL PORTS – COM1/2/3 In KS-6812/6812A system, there are 3 serial ports available. All can supply a +5 V DC through pin 9 after proper jumper setting change. COM1/2 ports are standard RS232 serial ports as status at delivery.
  • Page 17: Touch Panel

    Posiflex USB Touch Manager A program named “Posiflex USB Touch Manager” and a right-click sticky button tool in the program group “Posiflex USB Touch Tools” is installed in the preloaded Windows system with a USB interface touch panel controller. This program can also be obtained by download from the POSIFLEX web site.
