.JET
EQUIPMENT & TOOLS

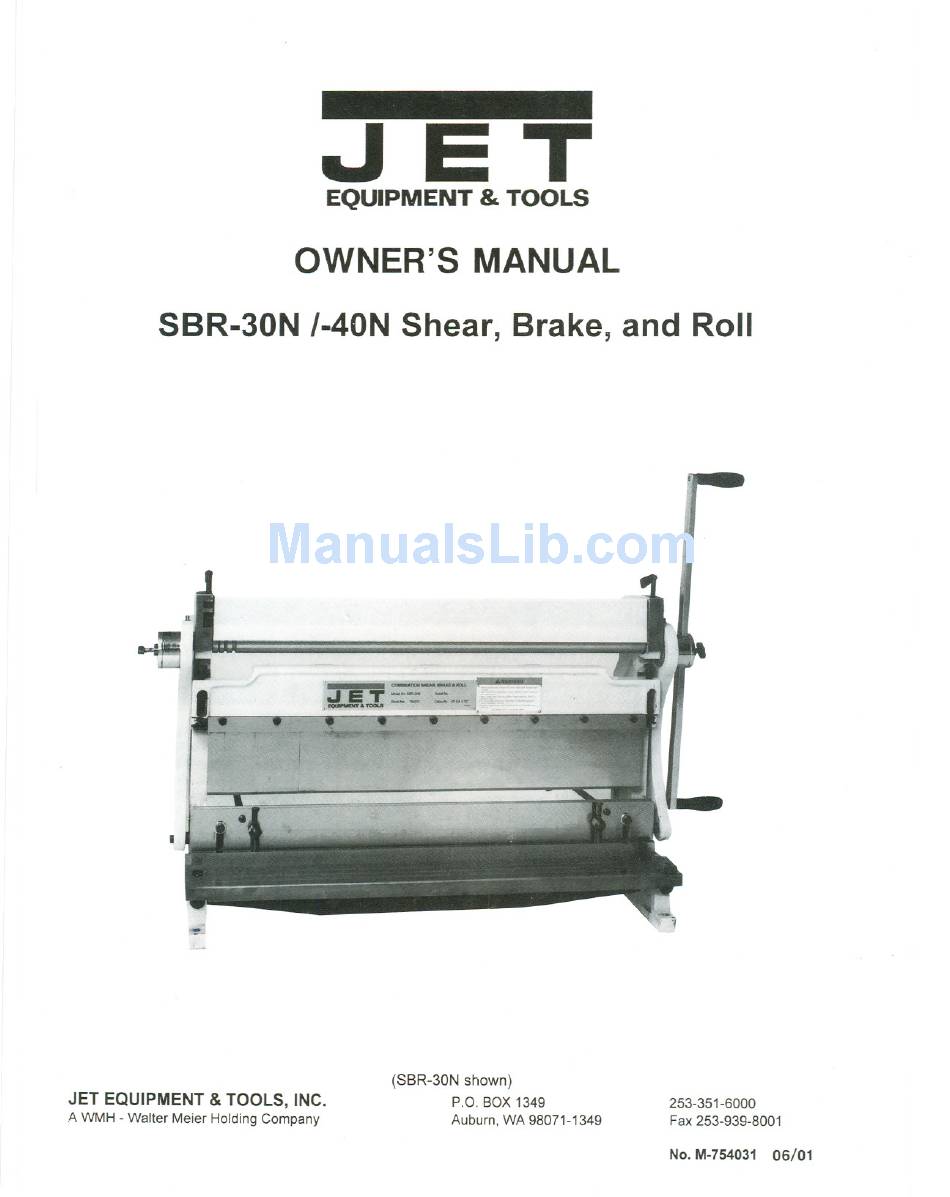

OWNER'S MANUAL
SBR-30N 1-40N Shear, Brake, and Roll
.
.
,j,J
~
..ar.............
Ifill.,T
-'"
-.-.
~
..'-"
,.,./1";'1"
.-'
--'
~
JET EQUIPMENT & TOOLS, INC.
A WMH
-
Walter Meier Holding Company

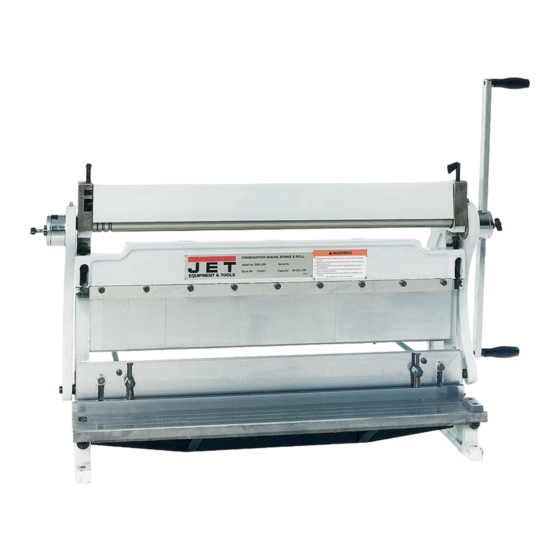

(SBR-30N shown)
P.o. BOX1349
Auburn, WA98071-1349
253-351-6000
Fax 253-939-8001
No. M-754031 06/01

Advertisement

loading
Need help?

Need help?

Do you have a question about the EQUIPMENT &TOOLS SBR-30N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jet EQUIPMENT &TOOLS SBR-30N

Summary of Contents for Jet EQUIPMENT &TOOLS SBR-30N

  • Page 1 EQUIPMENT & TOOLS OWNER'S MANUAL SBR-30N 1-40N Shear, Brake, and Roll ..ar..... Ifill.,T -'" -.-. ,j,J ..'-" ,.,./1";'1" (SBR-30N shown) JET EQUIPMENT & TOOLS, INC. P.o. BOX1349 253-351-6000 Fax 253-939-8001 Auburn, WA98071-1349 Walter Meier Holding Company A WMH No. M-754031 06/01...
  • Page 2 JET's expense, but if it is determined there is no defect, or that the defect resulted from causes not within the scope of JET's warranty, then the user must bear the cost of storing and returning the product. This warranty gives you specific legal rights, and you have other rights, which vary, from state to state.
  • Page 3 & WARNING Read and understand the entire instruction manual before attempting assembly or operation. This shear, brake, and roll is designed and intended for use by properly trained and experienced personnel only. Ifyou are not familiar with the proper and safe operation of a shear, brake, and roll, do not use until proper training and knowledge have been obtained.
  • Page 4 Shipping Weight (approx.) .616 Ibs. The specifications in this manual are given as general information and are not binding. JET Equipment and Tools reserves the right to effect, at any time and without prior notice, changes or alterations to parts, fittings, and accessory equipment deemed necessary for any reason...
  • Page 5 Assembly 1. Finish removing the crate from around the machine. 2. Remove the bolts holding the machine to the skid. 3. Carefully clean all rust protected surfaces with a mild solvent or kerosene and a soft rag. Do not use lacquer thinner, paint thinner, or gasoline. These will damage painted surfaces.
  • Page 6 Setting Up the Press Brake ateriallarger than 30" (40") 20 Failure to comply may cause e to the machine! To set up for bending: 1. Place a piece of wood 30" long on the bottom die. This will support the upper die(s) during the following adjustment.
  • Page 7 2. Work to be sheared must be squared against the squaring guide. Adjust the hold down to within 1/4" above the table when the shear blade is in the up position by turning two hex cap bolts (A, Fig. 7). When the blade starts it's downward travel, the hold down should immediately hold the work piece in place.
  • Page 8 have Upper roll must sufficient pressure on the work piece to feed properly. To remove cylindrical shaped workpieces: 1. Loosen wing screws (A, Fig. 9) on either of the top roll. 2. Loosen hex socket cap screw (8, Fig. 9) and rotate toward the rear of the machine to release roll catch.
  • Page 9 Breakdown for the SBR-30N Shear, Brake, and Roll ,..., ""' "'"' ""'" ,,'".:\ -0-0 ,.~~ ;:R. ;;e ;;;:- <::> <;:> "'<t " '"" ~,// .;'" \"", :fif 1.<'\ "'it ",..,...
  • Page 10 PartsList ForThe SBR-30NShear,Brake,and Roll Index Part Size Description Qty. SBR30N-1 Frame (left) SBR30N-2 Table SBR30N-3 Cross Beam SBR30N-4 Arm (left) """""'''''''''''''''''''''''''''''''''''''''''''''''' SBR30N-5 Frame (right) SBR30N-6 Spacer Bar """"""""""""""""" SBR30N-7 Cover SBR30N-8 Plug SBR30N-9 Spring SBR30N-10 Press Plate SBR30N-11 Cutter Plate 12-1 SBR30N-12-1 Brake Forming Die...
  • Page 11 SBR30N-43 Thumb Screw TS-1482031 Hex Cap Bolt M6x10 TS-150506 Hex Socket Cap Screw M1Ox40 ..SBR30N-46 ..., Washer ..10.5 TS-1492051 Hex Cap BoiL M12x50 TS-1492051 Hex Cap BoiL M10x20 SBR30N-46 .Washer 10.5 SBR30N-50 Adjustable NuL TS-1492041 Hex Cap Bolt M12x40 TS-1491051 Hex Cap Bolt M1Ox35...
  • Page 12 Breakdown for the SBR-40N Shear, Brake, and Roll ~ ,~~ '''r i", .-0-0 "'" <:::> C "'"...
  • Page 13 Parts List For The SBR-40N Shear, Brake, and Roll Part Index Size Qty. Description SBR40N-1 Frame (left) " SBR40N-2 Table SBR40N-3 Cross Beam SBR40N-4 Arm (right) SBR40N-4A Zerk Fitting SBR40N-5 Frame (right) SBR40N-6 Spacer Bar SBR40N-7 """""""""""'" Cover SBR40N-8 Pressure Plate Bracket SBR40N-9 Spring ,...
  • Page 14 SBR40N-3 9A Lock Bolt SBR40N-40 Hex Cap BoiL M6x16 SBR40N-41 Set Screw SBR40N-42 SBR40N-43 Hex Cap BoiL M12x25 SBR40N-44 Hex Cap Bolt M12x16. SBR40N-45 Hex Socket Cap Screw M12X70 SBR40N-46 . Washer 12.5 SBR40N-47 Hex Cap BoiL M16x100 SBR40N-48 Hex Cap Bolt M16x30 SBR40N-49 .
