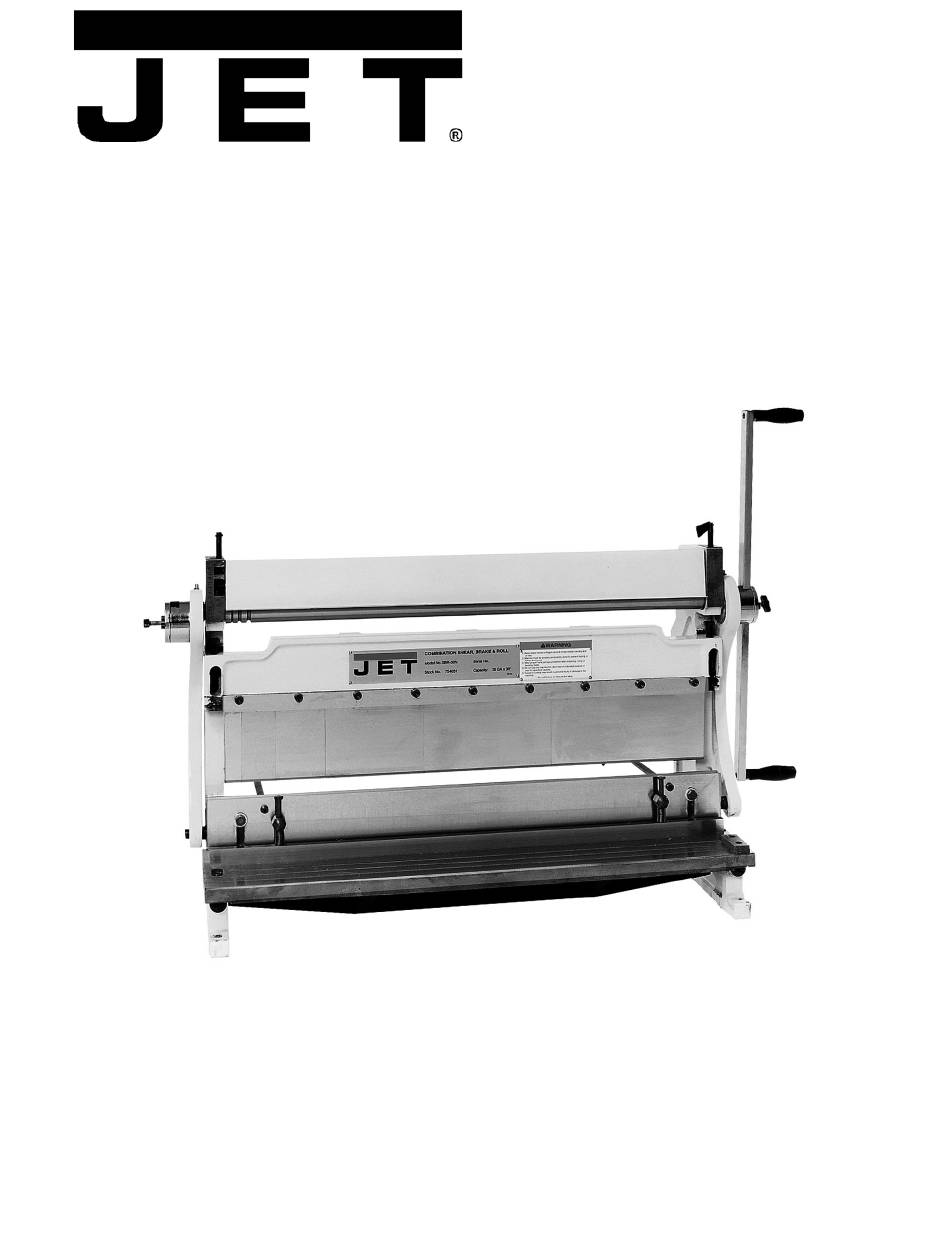

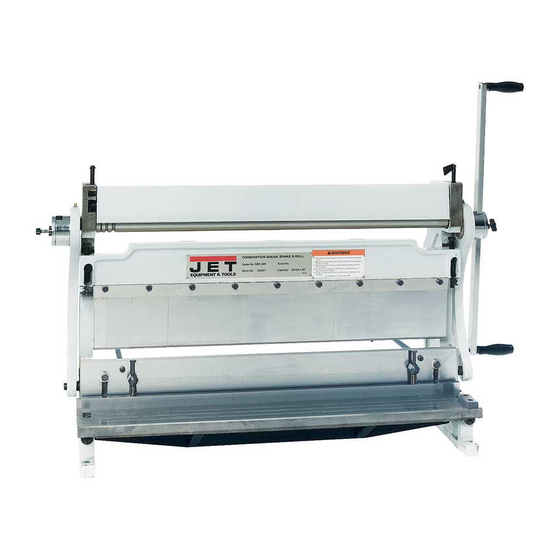

- Page 1 Operating Instructions and Parts Manual Shear, Brake and Roll Models SBR-30N and SBR-40N WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-754031 Ph.: 800-274-6848 Revision G 02/2010 www.waltermeier.com Copyright © 2010 Walter Meier (Manufacturing) Inc.
-
Page 2: Warranty And Service
Walter Meier is consistently adding new products to the line. For complete, up-to-date product information, check with your local Walter Meier distributor, or visit waltermeier.com. WARRANTY JET products carry a limited warranty which varies in duration based upon the product (MW = Metalworking, WW = Woodworking). WHAT IS COVERED? This warranty covers any defects in workmanship or materials subject to the exceptions stated below. -
Page 3: Table Of Contents
Maintenance/Lubrication ........................12 Optional Accessories ........................12 Replacement Parts ........................... 12 Breakdown for the SBR-30N Shear, Brake, and Roll ................ 13 Parts List for the SBR-30N Shear, Brake, and Roll................14 Breakdown For The SBR-40N Shear, Brake, and Roll..............16... - Page 4 1. Read and understand the entire instruction manual before attempting assembly or operation. 2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury. 3. Replace warning labels if they become obscured or removed. 4.
-
Page 5: Introduction
Introduction This manual is provided by Walter Meier (Manufacturing) Inc., covering the safe operation and maintenance procedures for a JET Model SBR-30N and Model SBR-40N Shear, Brake and Roll. This manual contains instructions on installation, safety precautions, general operating procedures, maintenance instructions and parts breakdown. -
Page 6: Assembly
Figure 2 (NOTE: An optional stand is available for (Brake position) this machine; see page 12. Contact your JET distributor to order.) 7. Remove one handle (A, Figure 1) from the operating handle assembly, using an 8mm hex key. 8. The operating handle can be installed on either end of the machine. -
Page 7: Setting Up The Press Brake
Setting Up the Press Brake Do not bend any material larger than 30” (40”) 20-gauge mild steel. Failure to comply may cause serious injury and/or damage to the machine. To set up for bending: 1. Place a strip of wood on the bottom die the full length of the die. -
Page 8: Setting Up The Shear
Setting Up the Shear Do not shear any material larger than 30” (40”) 20 gauge mild steel. Failure to comply may cause serious injury and/or damage to the machine. 1. Install the guide rods and plate in the shear position (Figure 7) and adjust it to the desired length of the cut workpiece. -
Page 9: Blade Rotation And Replacement
Blade Rotation and Replacement Exercise caution when working with or near the blades. Use work gloves when handling them. shearing blades reversible interchangeable; when the edges dull, rotate them to the new edge, as follows: 1. Remove the hold-down by loosening the socket head cap screws (J, Figure 11), using a 6mm hex key. - Page 10 TIP: If it doesn’t interfere with the proposed final shape or design, a slight bend made with the press brake on the leading edge will simplify the initial rolling process, by allowing the leading edge to slip more easily over the idle roll. Beware of the pinch point –...
-
Page 11: Flat Rolling
To remove cylindrical shaped workpieces: 1. Loosen bolt (M, Figure 13) 2. Rotate the screw (N , Figure 30) toward the rear of the machine to release the roll catch 3. Carefully grasp upper roll and swing out the end. Grasp the upper roll firmly, to prevent it falling out of the machine. -
Page 12: Bending Wire
Optional Accessories Part No. Description 754030 Optional Stand for SBR-30N 754040 Optional Stand for SBR-40N Optional Stand Replacement Parts Replacement parts are listed on the following pages. To order parts or reach our service department, call 1-800-274-6848, Monday through Friday (see our website for business hours, www.waltermeier.com). -
Page 13: Breakdown For The Sbr-30N Shear, Brake, And Roll
Breakdown for the SBR-30N Shear, Brake, and Roll... -
Page 14: Parts List For The Sbr-30N Shear, Brake, And Roll
Parts List for the SBR-30N Shear, Brake, and Roll Index No. Part No. Description Size 1 ....SBR30N-1 ....Frame (Left) ..................1 2 ....SBR30N-2 ....Table ....................1 3 ....SBR30N-3 ....Brake Beam ..................1 4 ....SBR30N-4N ....Arm (Left) ................... 1 4A.... - Page 15 Index No. Part No. Description Size 50 .... TS-1540081 ....Hex Nut............M12 ......1 51 .... TS-1492041 ....Hex Cap Screw ..........M12x40 ...... 2 52 .... TS-1505051 ....Hex Socket Cap Screw ........M10x35 ...... 2 53 .... TS-1504051 ....Hex Socket Cap Screw ........M8x25......9 54 ....
-
Page 16: Breakdown For The Sbr-40N Shear, Brake, And Roll
Breakdown For The SBR-40N Shear, Brake, and Roll... -
Page 17: Parts List For The Sbr-40N Shear, Brake, And Roll
Parts List For The SBR-40N Shear, Brake, and Roll Index No. Part No. Description Size 1 ....SBR40N-1 ....Frame (Left) ..................1 2 ....SBR40N-2 ....Table ....................1 3 ....SBR40N-3 ....Cross Beam ..................1 4 ....SBR40N-4N ....Arm (Left) ................... 1 4A.... - Page 18 Index No. Part No. Description Size 47 .... TS-149B16 ....Hex Cap Screw ..........M16x100 ....1 48 .... TS-2212301 ....Hex Cap Screw ..........M16x30 ...... 2 49 .... TS-155010 ....Flat Washer............M16 ......2 50 .... TS-154010 ....Hex Nut............M16 ......1 51 .... TS-1492021 ....Hex Cap Screw ..........M12x30 ...... 2 52 ....
- Page 20 WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.waltermeier.com...
