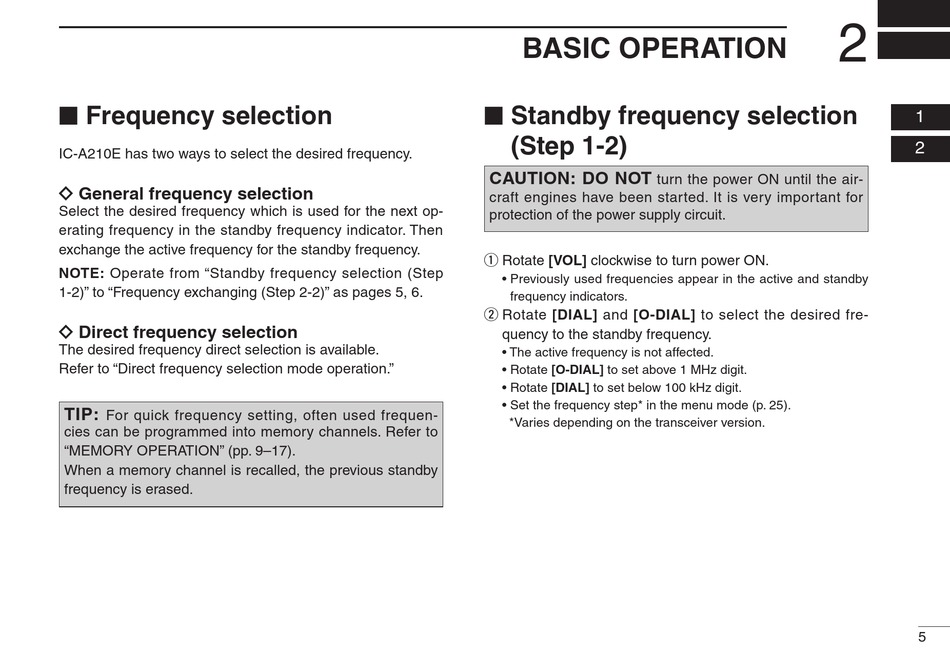

Basic Operation; Frequency Selection; Standby Frequency Selection (Step 1-2) - Icom IC-A210E Instruction Manual

n Frequency selection
IC-A210E has two ways to select the desired frequency.
ï General frequency selection
Select the desired frequency which is used for the next op-
erating frequency in the standby frequency indicator. Then
exchange the active frequency for the standby frequency.
NOTE: Operate from "Standby frequency selection (Step
1-2)" to "Frequency exchanging (Step 2-2)" as pages 5, 6.
ï Direct frequency selection
The desired frequency direct selection is available.
Refer to "Direct frequency selection mode operation."
TIP:
For quick frequency setting, often used frequen-
cies can be programmed into memory channels. Refer to
"MEMORY OPERATION" (pp. 9–17).
When a memory channel is recalled, the previous standby
frequency is erased.

BASIC OPERATION

n Standby frequency selection
(Step 1-2)
CAUTION: DO NOT
turn the power ON until the air-
craft engines have been started. It is very important for
protection of the power supply circuit.
q Rotate [VOL] clockwise to turn power ON.
• Previously used frequencies appear in the active and standby
frequency indicators.
w Rotate [DIAL] and [O-DIAL] to select the desired fre-
quency to the standby frequency.
• The active frequency is not affected.
• Rotate [O-DIAL] to set above 1 MHz digit.
• Rotate [DIAL] to set below 100 kHz digit.
• Set the frequency step* in the menu mode (p. 25).
*Varies depending on the transceiver version.
2
01
02
5
