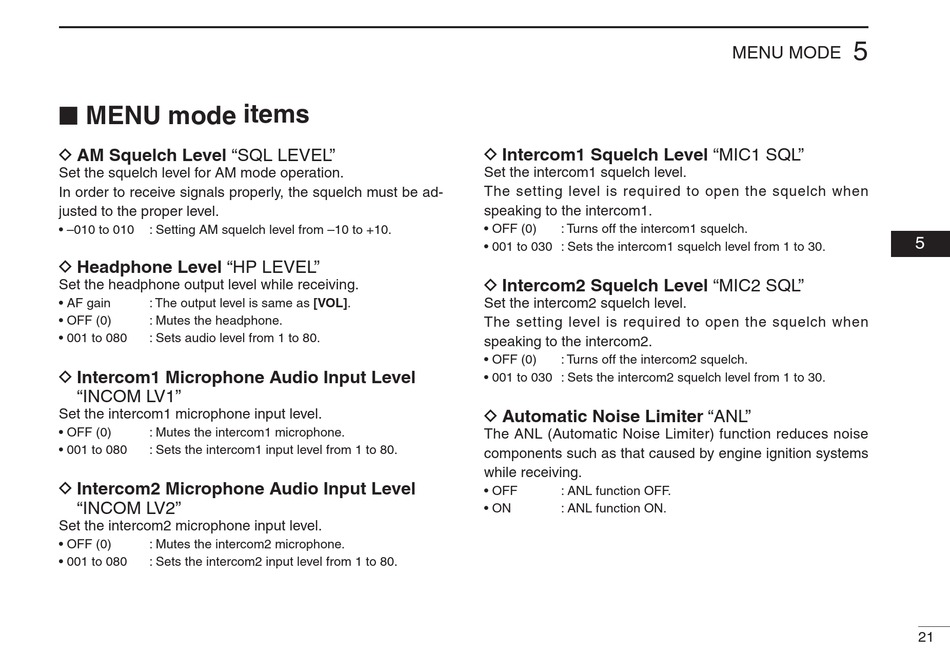

n MENU mode items
D AM Squelch Level "SQL LEVEL"
Set the squelch level for AM mode operation.
In order to receive signals properly, the squelch must be ad-
justed to the proper level.
• –010 to 010 : Setting AM squelch level from –10 to +10.
D Headphone Level "HP LEVEL"
Set the headphone output level while receiving.
• AF gain : The output level is same as [VOL].
• OFF (0) : Mutes the headphone.
• 001 to 080 : Sets audio level from 1 to 80.
D Intercom1 Microphone Audio Input Level
"INCOM LV1"
Set the intercom1 microphone input level.
• OFF (0) : Mutes the intercom1 microphone.
• 001 to 080 : Sets the intercom1 input level from 1 to 80.
D Intercom2 Microphone Audio Input Level
"INCOM LV2"
Set the intercom2 microphone input level.
• OFF (0) : Mutes the intercom2 microphone.
• 001 to 080 : Sets the intercom2 input level from 1 to 80.
D Intercom1 Squelch Level "MIC1 SQL"
Set the intercom1 squelch level.
The setting level is required to open the squelch when
speaking to the intercom1.
• OFF (0) : Turns off the intercom1 squelch.
• 001 to 030 : Sets the intercom1 squelch level from 1 to 30.
D Intercom2 Squelch Level "MIC2 SQL"
Set the intercom2 squelch level.
The setting level is required to open the squelch when
speaking to the intercom2.
• OFF (0) : Turns off the intercom2 squelch.
• 001 to 030 : Sets the intercom2 squelch level from 1 to 30.
D Automatic Noise Limiter "ANL"
The ANL (Automatic Noise Limiter) function reduces noise
components such as that caused by engine ignition systems
while receiving.
• OFF : ANL function OFF.
• ON : ANL function ON.
5
MENU MODE
05
21
