EUROCOM LCD PC User Manual page 89

10. Insert the new module. The module will only fit one way as defined by the pin
alignment.
11. Make sure the module is seated as far into the slot as it will go (DO NOT FORCE
IT). The latches will click into place on the sides of the module. Make sure they are
secure.
12. Reverse the procedures to put the computer back together, and do not forget all
the screws. When you restart the computer the new memory configuration should
be registered.
13. If the system doesn't properly detect the new memory, and you are sure they are
properly "seated", you may need to run the Setup utility.
Upgrading The Computer
Upgrading the System Memory (RAM) 5 - 7
5

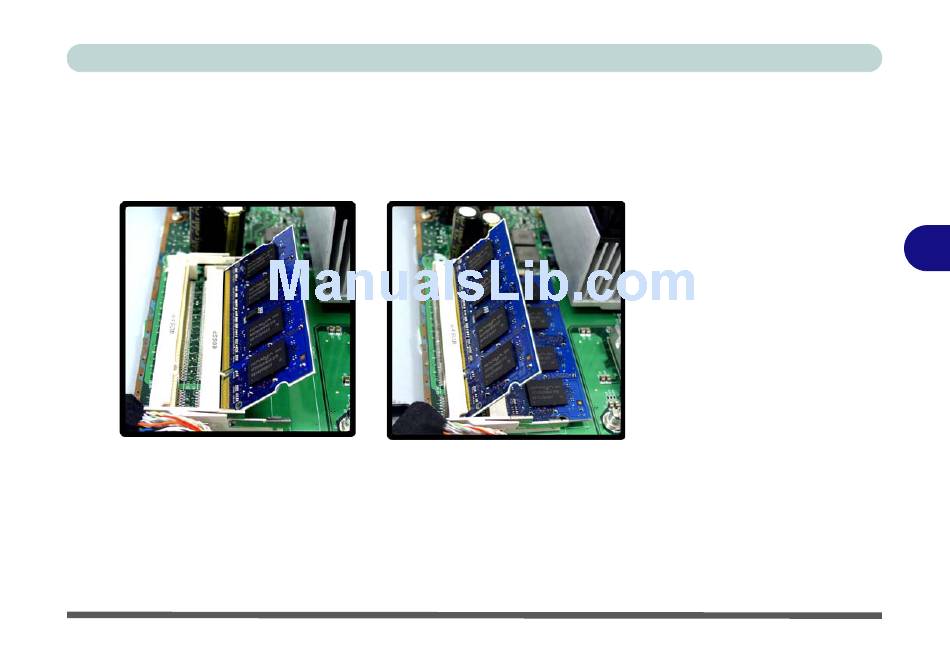

Figure 5 - 7
RAM Module
Insertion
