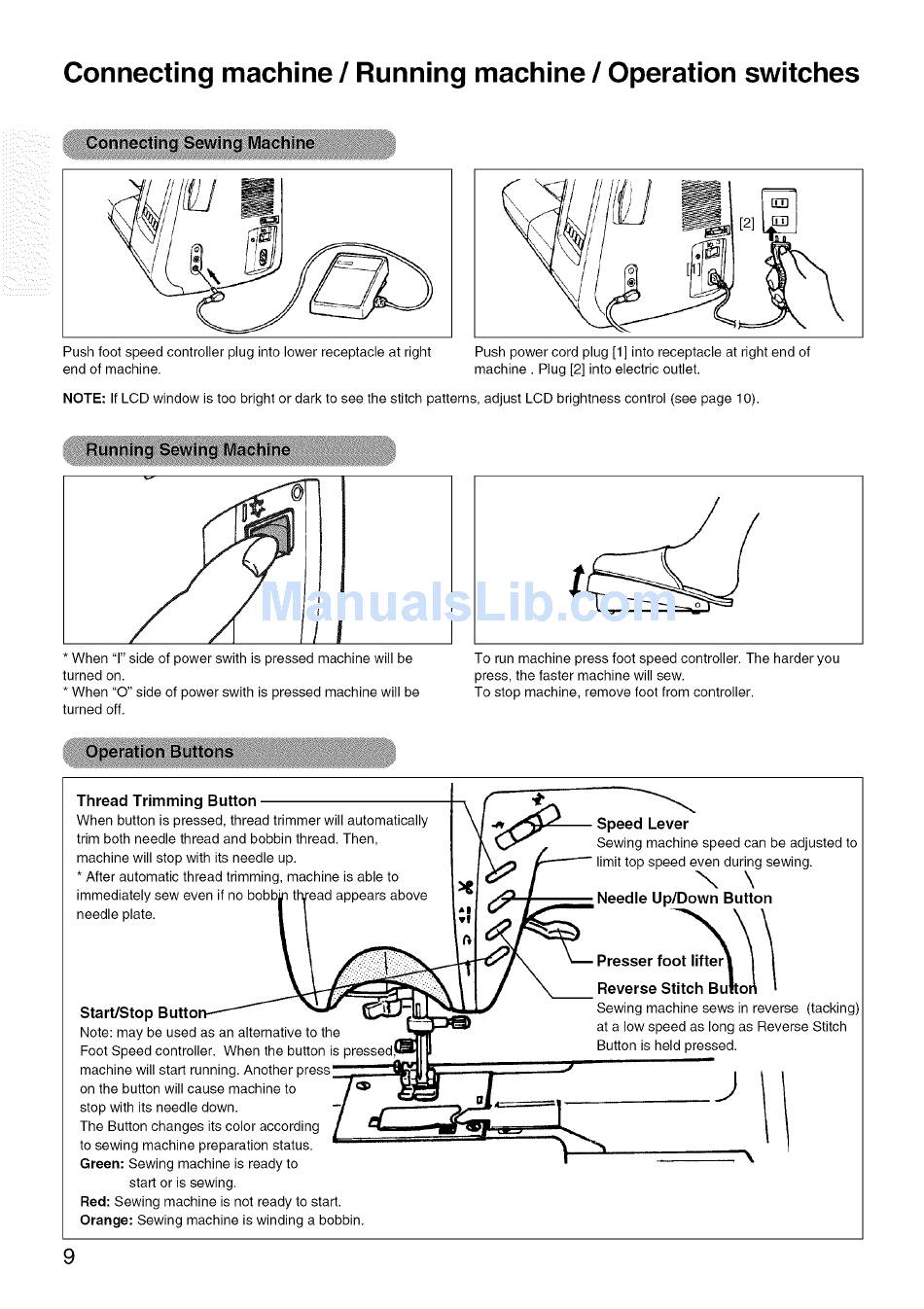

Connecting machine / Running machine / Operation switches
iiill ii _i
[2]
Push foot speed controller plug into lower receptacle at right
end of machine•
Push power cord plug [1] into receptacle at right end of
machine. Plug [2] into electric outlet•
NOTE: If LCD window is too bright or dark to see the stitch patterns, adjust LCD brightness control (see page 10).
* When 'T' side of power swith is pressed machine will be
turned on.
* When "O" side of power swith is pressed machine will be
turned off.
To run machine press foot speed controller• The harder you
press, the faster machine will sew.
To stop machine, remove foot from controller•
Thread Trimming Button
When button is pressed, thread trimmer will automatically
trim both needle thread and bobbin thread• Then,
machine will stop with its needle up.
* After automatic thread trimming, machine is able to
immediately sew even appears above
Speed Lever
Sewing machine speed can be adjusted to
limit top speed even during sewing•
\ \
Needle Up/Down Button
needle plate•
Start/Stop
Note: may be used as an alternative to the
Foot Speed controller• When the button is I
machine will start running• Another press
on the button will cause machine to
stop with its needle down.
The Button changes its color according
to sewing machine preparation status•
Green: Sewing machine is ready to
start or is sewing•
Red: Sewing machine is not ready to start•
Sewing machine sews in reverse (tacking)
at a low speed as long as Reverse Stitch
Button is held pressed•
Orange: Sewing machine is winding a bobbin.
9
