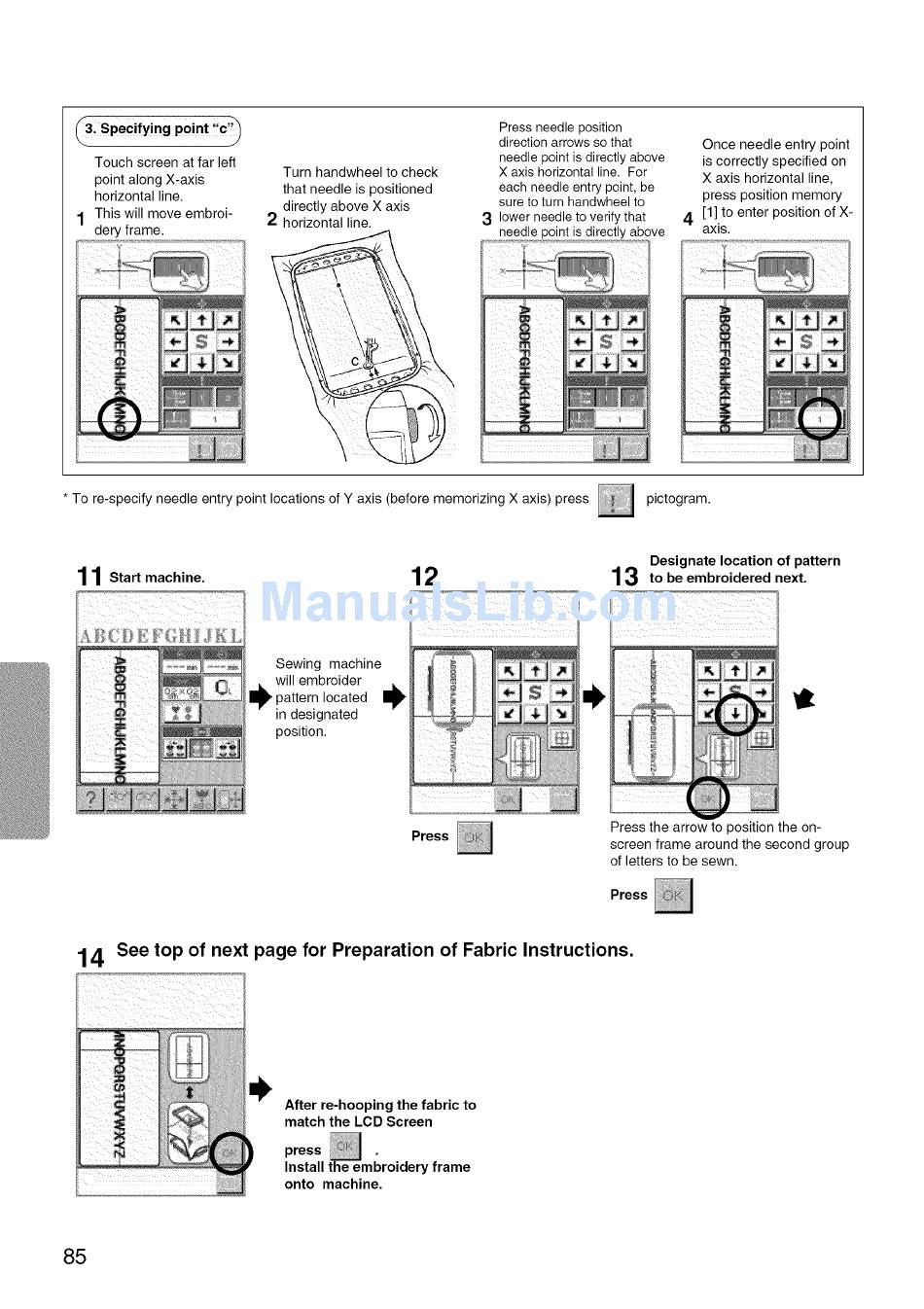

_3. Specifying point !!€'_
Touch screen at far left
point along X-axis
horizontal line.
1 This will move embroi-
dery frame.
Turn handwheel to check
that needle is positioned
directly above X axis
2 horizontal line.
Press needle position
direction arrows so that
needle point is directly above
X axis horizontal line. For
each needle entry point, be
sure to turn handwheel to
3 lower needle to verify that
needle point is directly above
Once needle entry point
is correctly specified on
X axis horizontal line,
press position memory
4 [1] to enter position of X-
axis.
* To re-specify needle entry point locations of Y axis (before memorizing X axis) press pictogram.
1 1 Start machine.
}
1
i
Sewing machine
will embroider
I_ pattern located I_
in designated
position.
12
Press
Designate location of pattern
13
to be embroidered next.
i
Press the arrow to ?osition the on-
screen frame around the second group
of letters to be sewn.
Press
14
See top of next page for Preparation of Fabric Instructions.
i,liiiLiiii,, L, ,i i,, i
After re-hooping the fabric to
match the LCD Screen
press
Install the embroidery frame
onto machine.
85
