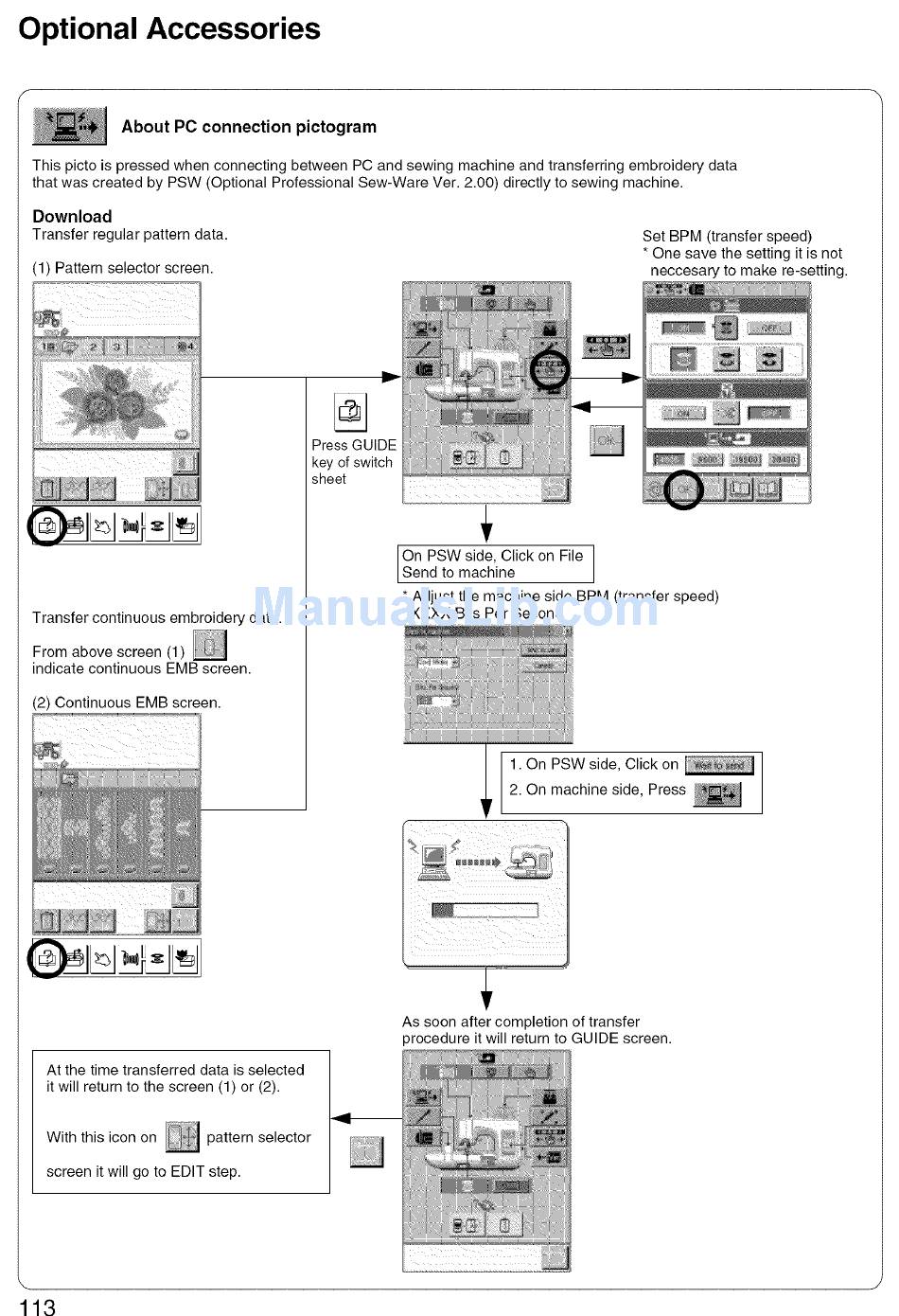

Singer XL-6000 Instruction Manual page 114

Optional Accessories
About PC connection pictogram
This picto is pressed when connecting between PC and sewing machine and transferring embroidery data
that was created by PSW (Optional Professional Sew-Ware Ver. 2.00) directly to sewing machine.
Download
Transfer regular pattern data.
(1) Pattern selector screen.
Transfer continuous embroidery data.
From above screen (1)
indicate continuous EMB screen.
(2) Continuous EMB screen.
Press GUIDE
key of switch
sheet
Set BPM (transfer speed)
* One save the setting it is not
neccesary to make re-setting.
On PSW side, Click on File
Send to machine
* Adjust the machine side BPM (transfer speed)
XXXX Bits Per Second
1. On PSW side, Click on
2. On machine side, Press
At the time transferred data is selected
it will return to the screen (1) or (2).
As soon after completion of transfer
procedure it will return to GUIDE screen.
With this icon on pattern selector
screen it will go to EDIT step.
\
113
