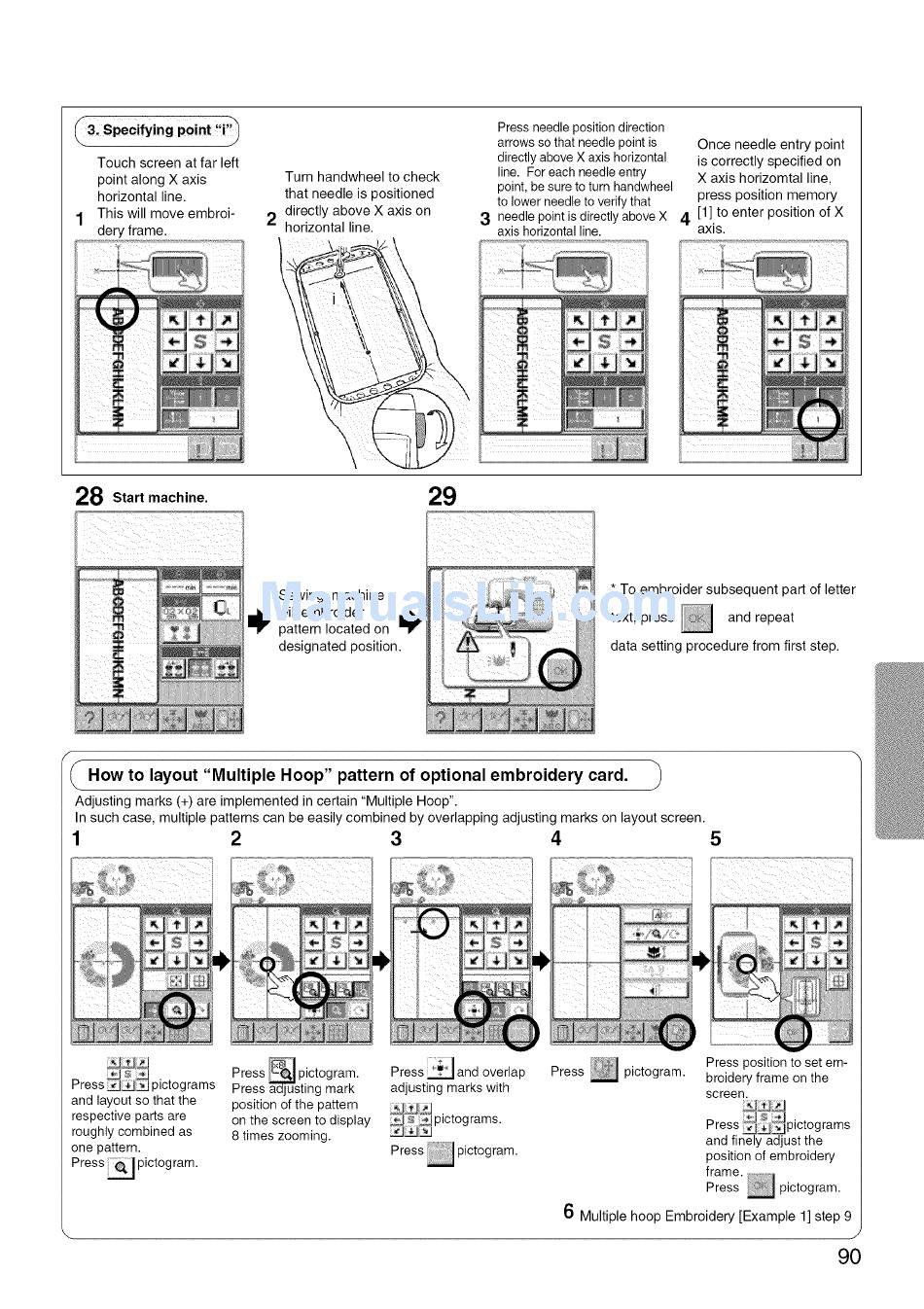

_31 Specifying point !!i,_
Touch screen at far left
point along X axis
horizontal line•
1
This will move embroi-
dery frame•
Turn handwheel to check
that needle is positioned
2 directly above X axis on
horizontal line.
Press needle position direction
arrows so that needle point is Once needle entry point
directly above X axis horizontal is correctly specified on
line. For each needle entry X axis horizomtal line,
point, be sure to turn handwheel
to lower needle to verify that press position memory
3 needle point is directly above X 4 [1] to enter position of X
axis horizontal line. axis.
28
Start machine.
29
Sewing machine
i_ will embroider
pattern located on I_
designated position.
* To embroider subsequent part of letter
text, press and repeat
data setting procedure from first step.
f
f
How to layout "Multiple Hoop" pattern of optional embroidery card. "_
J
Adjusting marks (+) are implemented in certain "Multiple Hoop".
In such case, multiple patterns can be easily combined by overlapping adjusting marks on layout screen.
1 2 3 4
and layout so that the
respective parts are
roughly combined as
one pattern.
Press _ pictogram.
Press _ pictogram.
Press adjujusting mark
position of the pattern
on the screen to display
8 times zooming.
i¸ _ •
Press _ and overlap
adjusting marks with
Press _ pictogram.
ill _ !_
?d_ ' 2
i
Press _
pictogram.
i !
Press position to set em-
broidery frame on the
screen.
pictograms
and fin-ely adjust the
position of embroidery
frame, i:_,;;:
Press _ pictogram.
6 Multiple hoop Embroidery [Example 1] step
9
J
90
