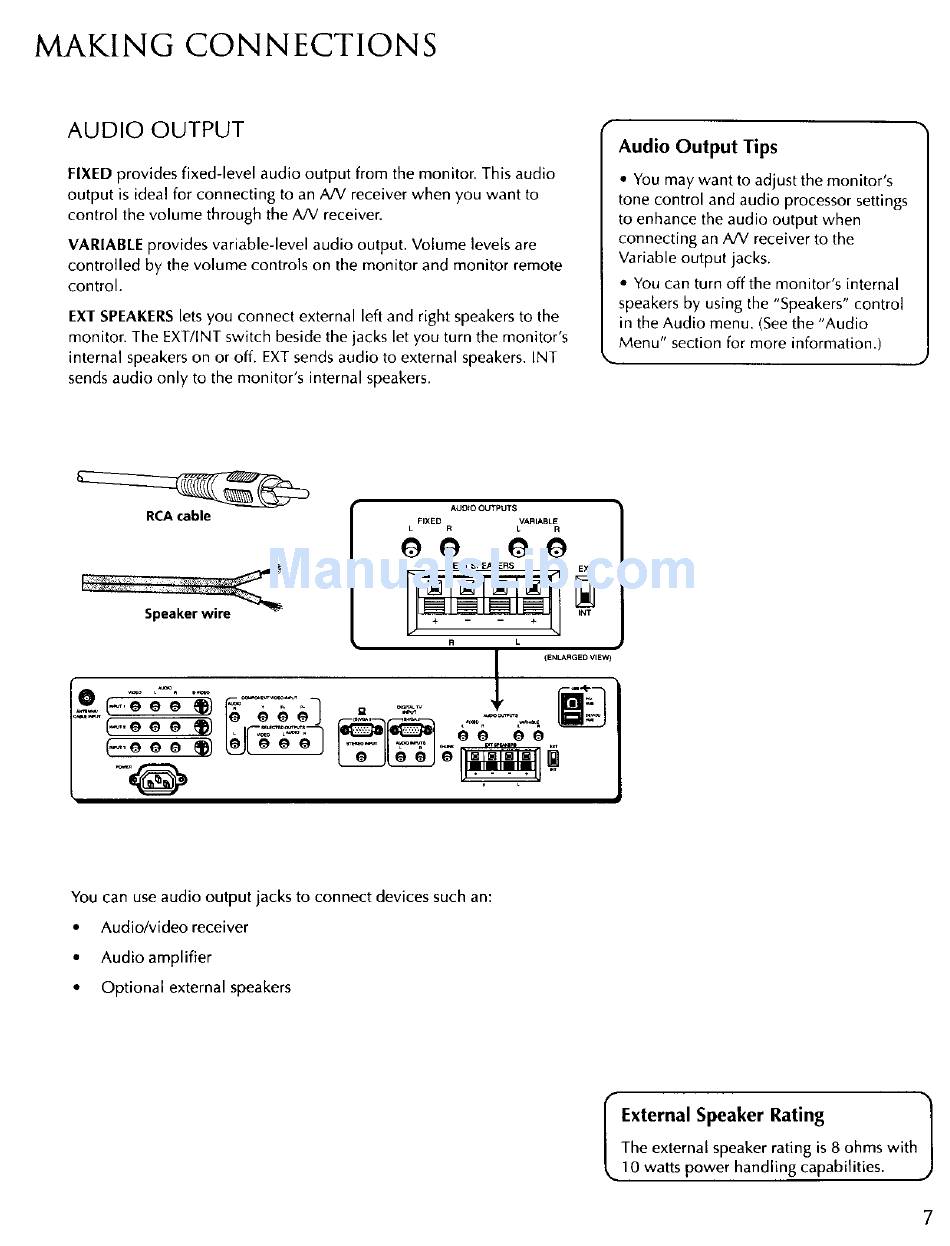

MAKING CONNECTIONS
AUDIO OUTPUT
FIXED provides fixed-level audio output from the monitor. This audio
output is ideal for connecting to an A/V receiver when you want to
control the volume through the A/V receiver.
VARIABIE provides variable-level audio output. Volume levels are
controlled by the volume controls on the monitor and monitor remote
control.
EXT SPEAKERSlets you connect external left and right speakers to the
monitor. The EXT/INT switch beside the jacks let you turn the monitor's
internal speakers on or off. EXT sends audio to external speakers. INT
sends audio only to the monitor's internal speakers.
Audio Output Tips
• You may want to adjust the monitor's
tone control and audio processor settings
to enhance the audio output when
connecting an A/V receiver to the
Variable output jacks.
• You can turn off the monitor's internal
speakers by using the "Speakers" control
in the Audio menu. (See the "Audio
Menu" section for more information.)
RCA cable
Speaker wi_
,oooo
AUOIO OUTPUTS
FIXED VARIABLE
L R L R
EXT SPEAKERS [_
R L
(ENLARGED VIE_q)
You can use audio output jacks to connect devices such an:
• Audio/video receiver
• Audio amplifier
• Optional external speakers
I External Speaker Rating 1
The external speaker rating is 8 ohms with
10 watts power handling capabilities.
