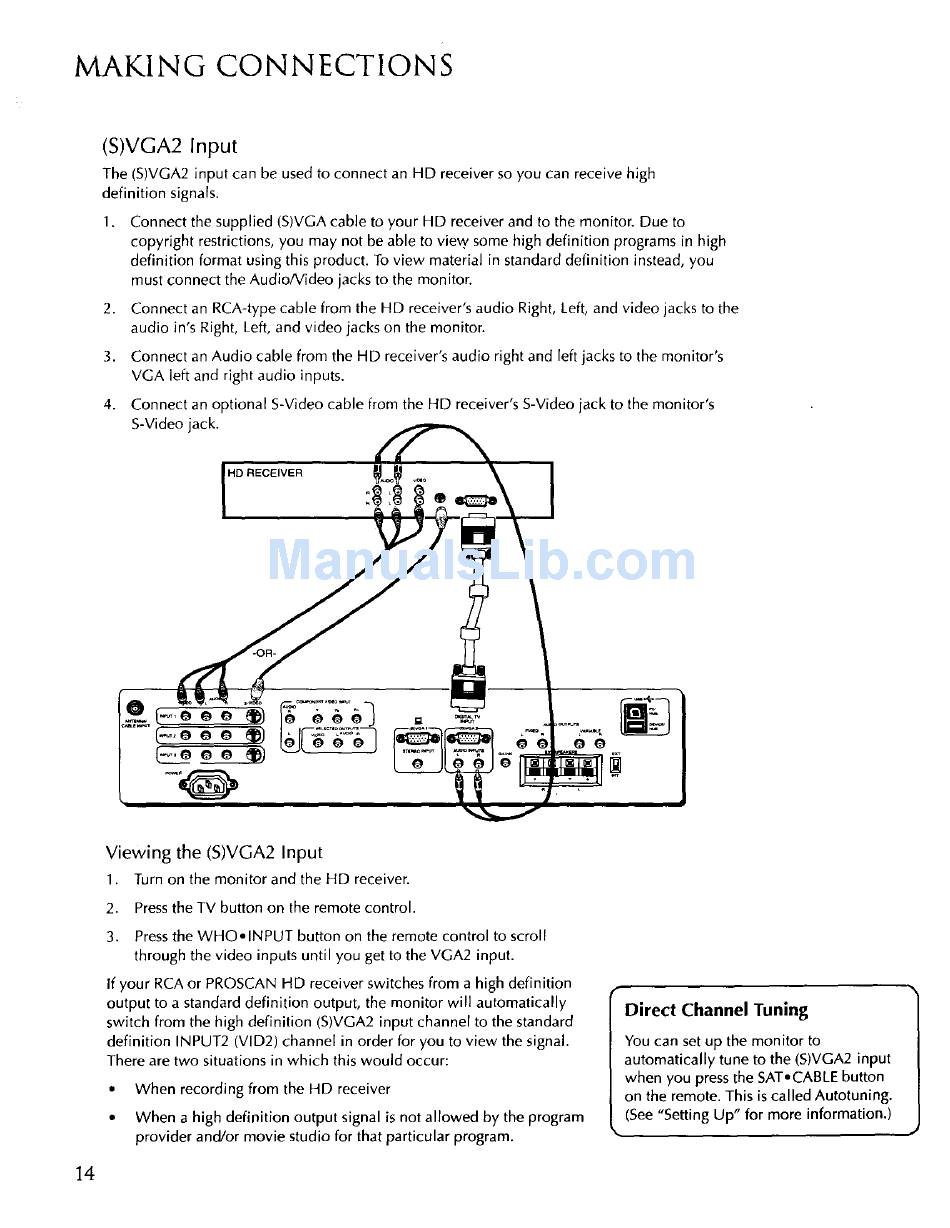

MAKING CONNECTIONS
(S)VGA2 Input
The {S)VGA2 input can be used to connect an HD receiver so you can receive high
definition signals.
1.
Connect the supplied {S)VGA cable to your HD receiver and to the monitor. Due to
copyright restrictions, you may not be able to view, some high definition programs in high
definition format using this product. To view material in standard definition instead, you
must connect the Audio/Video jacks to the monitor.
2. Connect an RCA-type cable from the HD receiver's audio Right, Left, and video jacks to the
audio in's Right, Left, and video jacks on the monitor.
3,
4.
Connect an Audio cable from the HD receiver's audio right and left jacks to the monitor's
VGA left and right audio inputs.
Connect an optional S-Video cable from the HD receiver's S-Video jack to the monitor's
S-Video jack.
{-.° o ° ®? °°
Viewing the (S)VGA2 Input
1. Turn on the monitor and the HD receiver.
2. Press the TV button on the remote control.
3. Press the WHO-INPUT button on the remote control to scroll
through the video inputs until you get to the VGA2 input.
If your RCA or PROSCAN HD receiver switches from a high definition
output to a standard definition output, the monitor will automatically
switch from the high definition (S)VGA2 input channel to the standard
definition INPUT2 (VlD2) channel in order for you to view the signal.
There are two situations in which this would occur:
• When recording from the HD receiver
• When a high definition output signal is not allowed by the program
provider and/or movie studio for that particular program.
Direct Channel Tuning
You can set up the monitor to
automatically tune to the (S)VGA2 input
when you press the SAT,CABLE button
on the remote. This is called Autotuning.
(See "Setting Up" for more information.)
14
