Connections and Setup

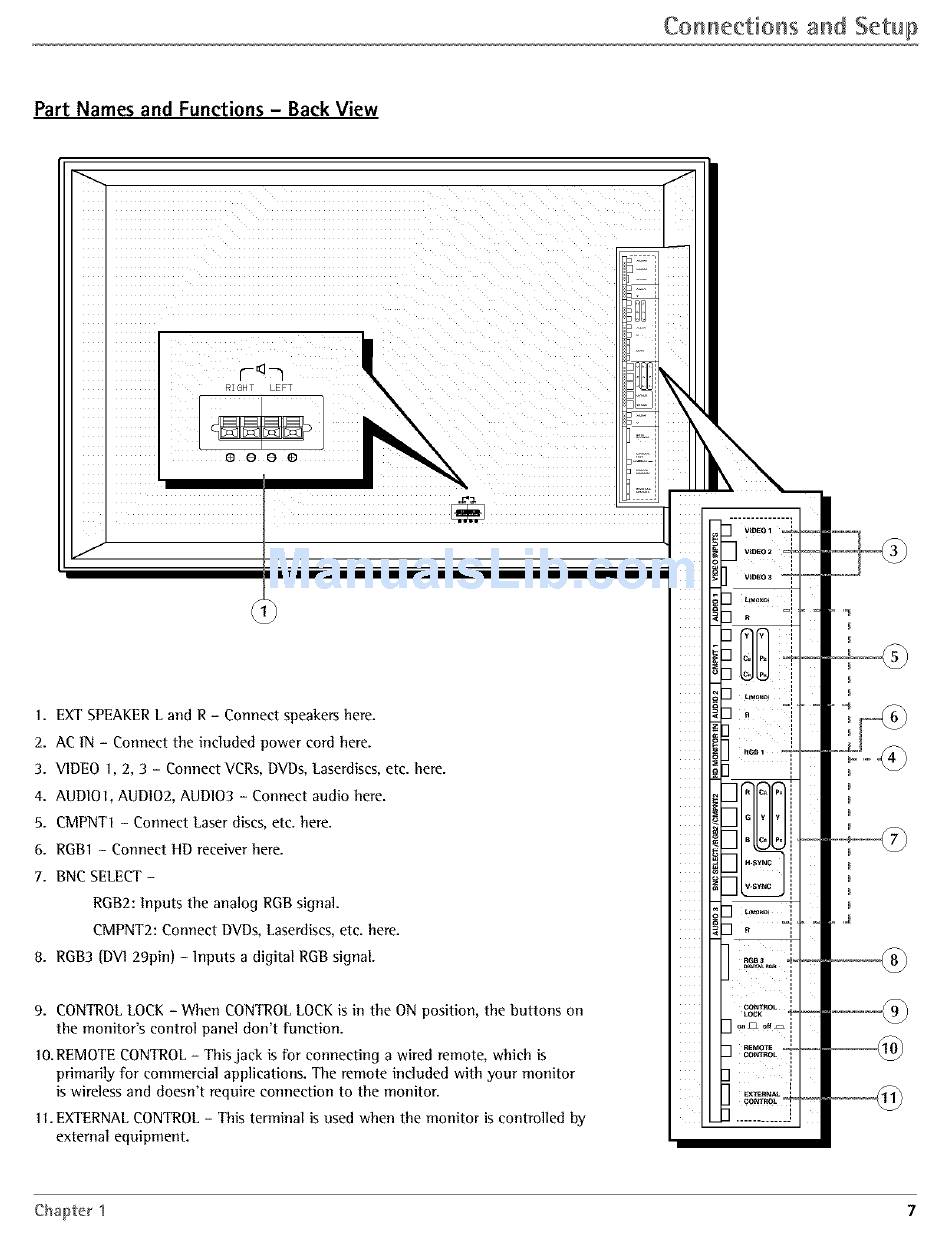

Part Names and Functions - Back View
r- (]--_
RIGHT EFT
• Q Q 0
l. EXT SPEAKER L and R - Connect speakers here.
2. AC 1N - Connect the included power cord here.
3. VIDEO I, 2, 3 - Connect
VCRs,DVDs,
Laserdiscs, etc. here.
4. AUDIO1, AUD102, AUDIO3 - Connect audio here.
5. CMPNT1 - Connect Laser discs, etc. here.
6. RGB! - Connect HI) receiver here.
7. BNC SELECT -
RGB2: Inputs the analog RGB signal.
CMPNT2: Connect DVDs, Laserdiscs, etc. here.
8. RGB3 {DV1 29pin) - Inputs a digital RGB signal.
9. CONTROLLOCK- When CONTROLLOCKis in the ON position, the buttons on
the monitor's control panel don't function.
I0.REMOTE CONTROL- This jack is for connecting a wired remote, which is
primarily for commercial applications, q!Ireremote included with your monitor
is wireless and doesn't require connection to the monitor.
11. EXTERNALCONTROL- This terminal is used when the monitor is controlled by
external equipment.
_= ,_
Chap{er 1 7
