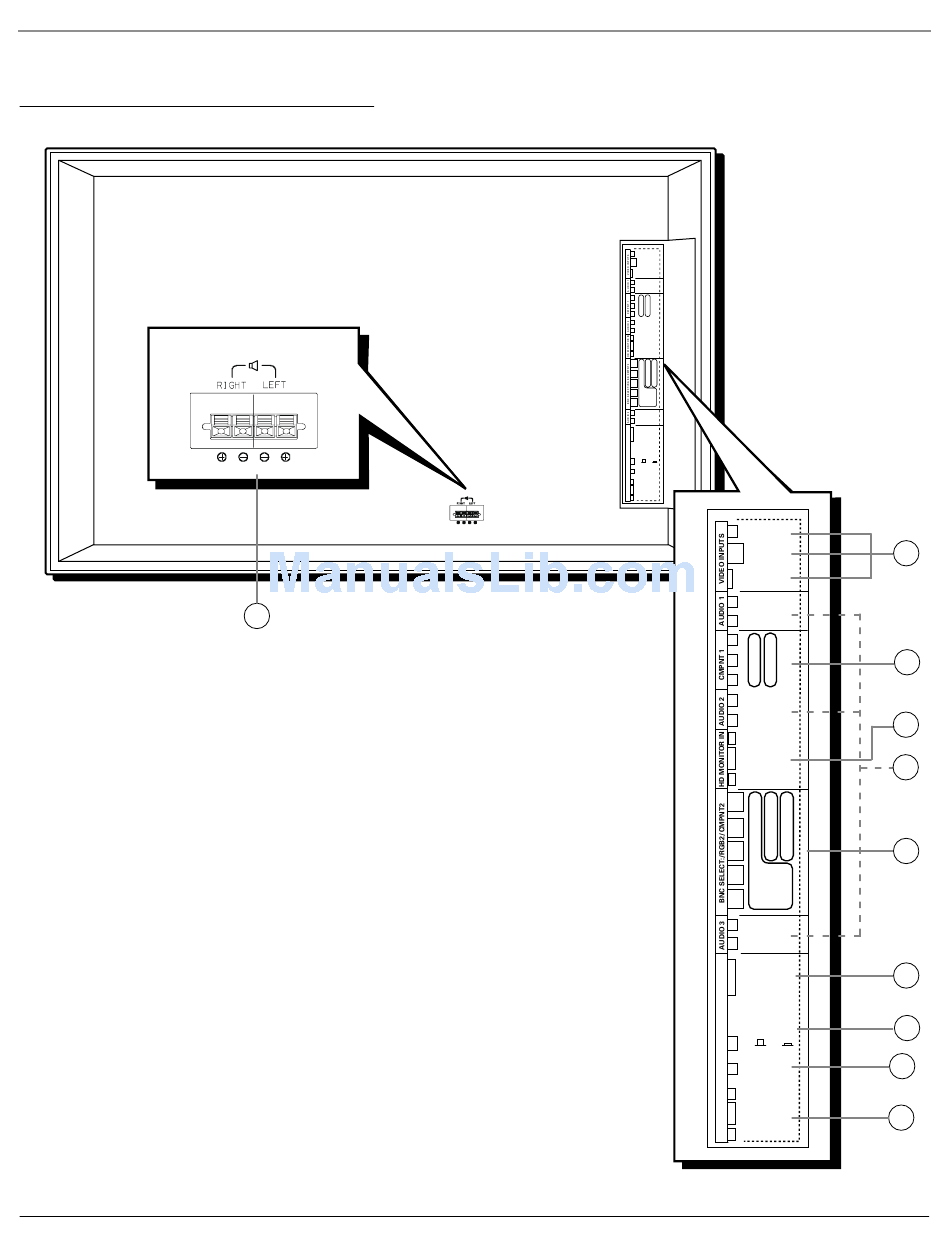

Part Names and Functions – Back View
1. EXT SPEAKER L and R – Connect speakers here.
2. AC IN – Connect the included power cord here.
3. VIDEO 1, 2, 3 – Connect VCRs, DVDs, Laserdiscs, etc. here.
4. AUDIO1, AUDIO2, AUDIO3 – Connect audio here.
5. CMPNT1 – Connect Laser discs, etc. here.
6. RGB1 – Connect HD receiver here.
7. BNC SELECT –
RGB2: Inputs the analog RGB signal.
CMPNT2: Connect DVDs, Laserdiscs, etc. here.
8. RGB3 (DVI 29pin) – Inputs a digital RGB signal.
9. CONTROL LOCK – When CONTROL LOCK is in the ON position, the buttons on
the monitor's control panel don't function.
10. REMOTE CONTROL – This jack is for connecting a wired remote, which is
primarily for commercial applications. The remote included with your monitor
is wireless and doesn't require connection to the monitor.
11. EXTERNAL CONTROL – This terminal is used when the monitor is controlled by
external equipment.
Chapter 1
1
Connections and Setup
VIDEO 1
VIDEO 2
VIDEO 3
L
(MONO)
R
Y
Y
C
P
B
B
C
R
P
R
L
(MONO)
R
RGB 1
R
C
P
R
R
G
Y
Y
B
C
B
P
B
H-SYNC
V-SYNC
L
(MONO)
R
RGB 3
DIGITAL RGB
CONTROL
LOCK
on
off
REMOTE
CONTROL
EXTERNAL
CONTROL
VIDEO 1
VIDEO 2
VIDEO 3
L
(MONO)
R
Y
Y
C
P
B
B
C
P
R
R
L
(MONO)
R
RGB 1
R
C
P
R
R
G
Y
Y
B
C
P
B
B
H-SYNC
V-SYNC
L
(MONO)
R
RGB 3
DIGITAL RGB
CONTROL
LOCK
on
off
REMOTE
CONTROL
EXTERNAL
CONTROL
3
5
6
4
7
8
9
10
11
7
