Connections and Setup

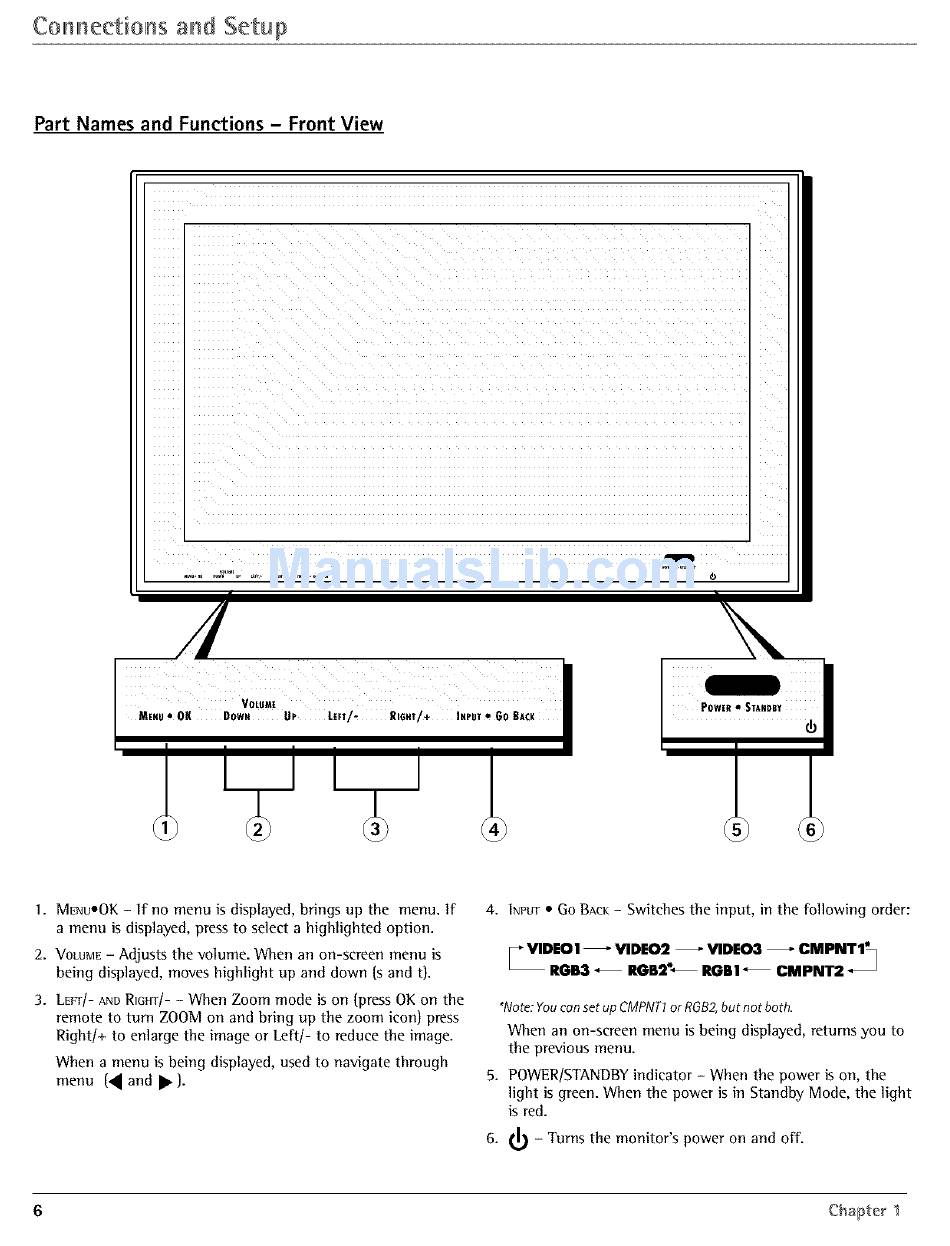

Part Names and Functions - Front View
I
e_
I I
|. MENueOK
-
If no menu is displayed, brings up the menu. If
a menu is displayed, press to select a highlighted option.
2. VOLUME - Adjusts the volume. When an on-screen menu is
being displayed, moves highlight up and down {s and t).
3. LEFt/-
AND RIGHT/- -
When Zoom mode is on (press OK on the
remote to turn ZOOM on and bring up the zoom icon) press
Right/+ to enlarge the image or Left/- to reduce the image.
When a menu is being displayed, used to navigate through
menu (,_ and • ).
4. INPUT • GOBACK - Switches the input, in the following order:
_DEO1 _ VIDEO2 _ VIDEO3 _ CMPNTI_
RGB3 _ RGB2 _ RGB 1_ CMPN'r2
*Note:Youcon set up CMPNT1 or RGBZ but not both.
When an on-screen menu is being displayed, returns you to
the previous menu.
5. POWER/STANDBYindicator - When the power is on, the
light is green. When the power is in Standby Mode, the light
is red.
6. _ - Turns the monitor's power on and off.
6 Chapter I
