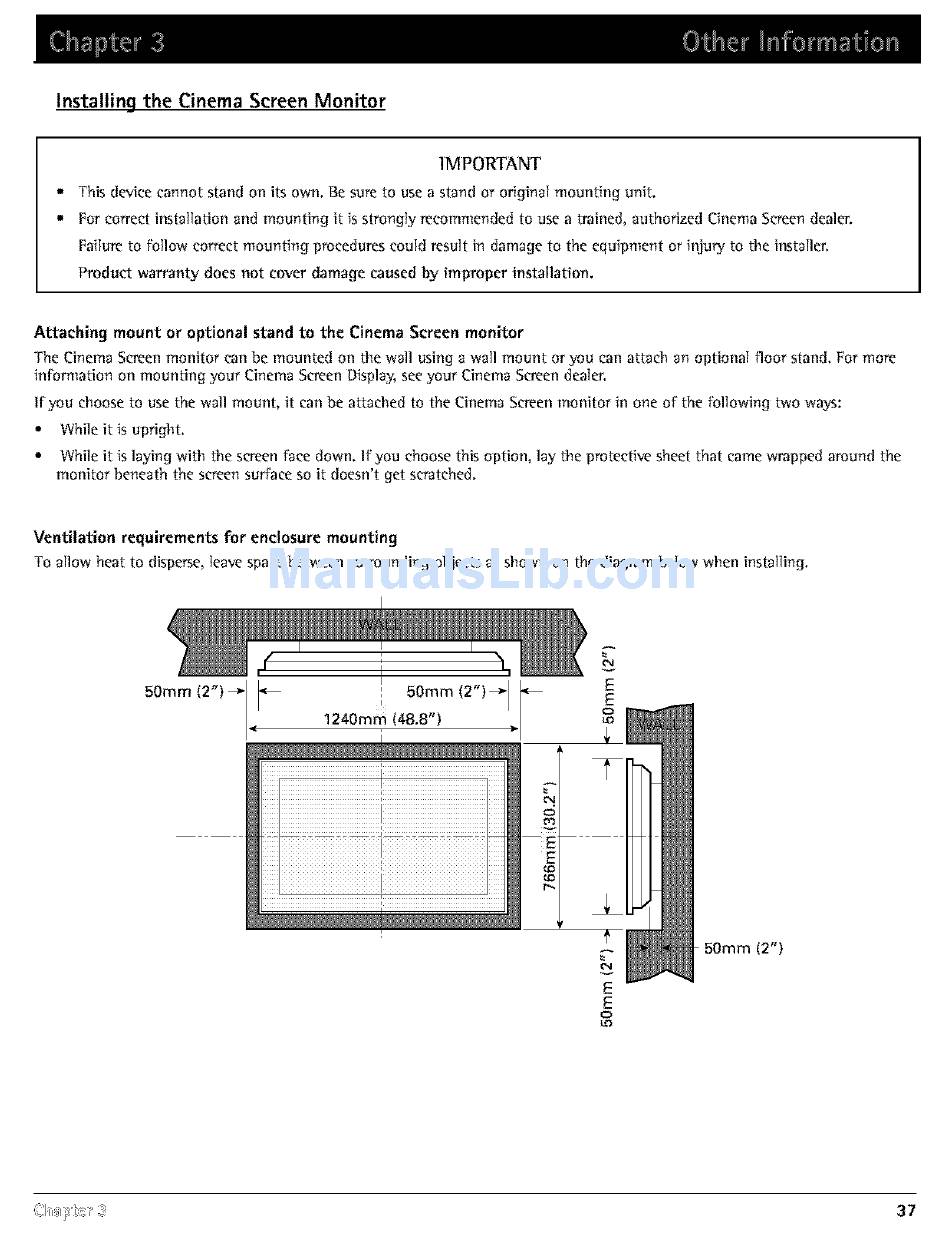

Installina the Cinema Screen Monitor
IMPORTANT
-This device cannot stand on its own. Be sure to use a stand or original mounting unit.
For correct installation and mounting it is strongly recommended to use a trained, authorized Cinema Screen dealer.
Failure to follow correct mounting procedures could result in damage to the equipment or injury to tile installer.
_oduct warranty, does not cover damage caused by improper installation.
Attaching mount or optional stand to the Cinema Screen monitor
The Cinema Screen monitor can be mounted on tile wall using a wall mount or you can attach an optional floor stand. For more
infomtation on mounting your Cinema Screen Display, see your Cinema Screen dealer.
If'you droose to use the wall mount, it can be attached to the Cinema Screen monitor in one of the following two wa_:
• While it iS upright.
,, While it is laying with tile screen face down. If you choose this option, lay tile protective sheet that came wrapped around the
monitor beneath the screen surf_ce so it doesn't get scratched.
Ventilation requirements for enclosure mounting
To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.
50mm (2")
E
E
o
