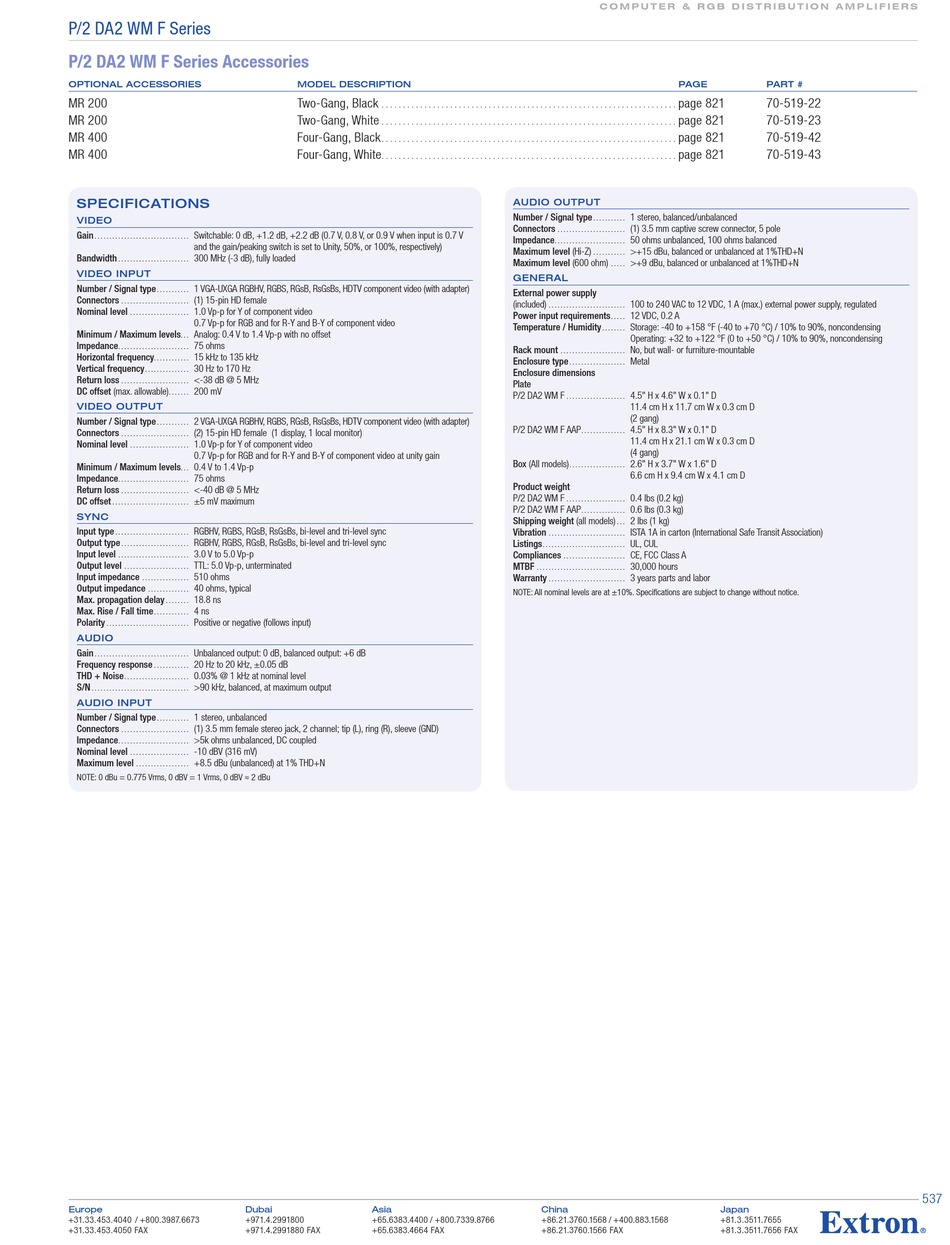

Specifications; Audio Output; Video Output; Audio Input - Extron electronics P/2 DA2 AAP Specification Sheet

P/2 DA2 WM F Series
P/2 DA2 WM F Series Accessories
oPtionAL ACCessories
MR 200
MR 200
MR 400
MR 400

sPeCifiCAtions

viDeo
Gain.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Switchable: 0 dB, +1.2 dB, +2.2 dB (0.7 V, 0.8 V, or 0.9 V when input is 0.7 V
and the gain/peaking switch is set to Unity, 50%, or 100%, respectively)
Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . 300 MHz (-3 dB), fully loaded
viDeo inPut
Number / Signal type.. . . . . . . . . . . . 1 VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV component video (with adapter)
Connectors.. . . . . . . . . . . . . . . . . . . . . . . . (1) 15-pin HD female
Nominal level.. . . . . . . . . . . . . . . . . . . . . 1.0 Vp-p for Y of component video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
Minimum / Maximum levels. . . . . Analog: 0.4 V to 1.4 Vp-p with no offset
Impedance. . . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Horizontal frequency. . . . . . . . . . . . . 15 kHz to 135 kHz
Vertical frequency. . . . . . . . . . . . . . . . . 30 Hz to 170 Hz
Return loss.. . . . . . . . . . . . . . . . . . . . . . . . <-38 dB @ 5 MHz
DC offset (max. allowable). . . . . . . . . 200 mV

viDeo outPut

Number / Signal type.. . . . . . . . . . . . 2 VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV component video (with adapter)
Connectors.. . . . . . . . . . . . . . . . . . . . . . . . (2) 15-pin HD female (1 display, 1 local monitor)
Nominal level.. . . . . . . . . . . . . . . . . . . . . 1.0 Vp-p for Y of component video
0.7 Vp-p for RGB and for R-Y and B-Y of component video at unity gain
Minimum / Maximum levels. . . . . 0.4 V to 1.4 Vp-p
Impedance. . . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Return loss.. . . . . . . . . . . . . . . . . . . . . . . . <-40 dB @ 5 MHz
DC offset.. . . . . . . . . . . . . . . . . . . . . . . . . . . ±5 mV maximum
synC
Input type.. . . . . . . . . . . . . . . . . . . . . . . . . . RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync
Output type.. . . . . . . . . . . . . . . . . . . . . . . . RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync
Input level.. . . . . . . . . . . . . . . . . . . . . . . . . 3.0 V to 5.0 Vp-p
Output level.. . . . . . . . . . . . . . . . . . . . . . . TTL: 5.0 Vp-p, unterminated
Input impedance.. . . . . . . . . . . . . . . . . 510 ohms
Output impedance.. . . . . . . . . . . . . . . 40 ohms, typical
Max. propagation delay.. . . . . . . . . 18.8 ns
Max. Rise / Fall time. . . . . . . . . . . . . . 4 ns
Polarity.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Positive or negative (follows input)
AuDio
Gain.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Unbalanced output: 0 dB, balanced output: +6 dB
Frequency response.. . . . . . . . . . . . . 20 Hz to 20 kHz, ±0.05 dB
THD + Noise. . . . . . . . . . . . . . . . . . . . . . . . 0.03% @ 1 kHz at nominal level
S/N.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >90 kHz, balanced, at maximum output

AuDio inPut

Number / Signal type.. . . . . . . . . . . . 1 stereo, unbalanced
Connectors.. . . . . . . . . . . . . . . . . . . . . . . . (1) 3.5 mm female stereo jack, 2 channel; tip (L), ring (R), sleeve (GND)
Impedance. . . . . . . . . . . . . . . . . . . . . . . . . . >5k ohms unbalanced, DC coupled
Nominal level.. . . . . . . . . . . . . . . . . . . . . -10 dBV (316 mV)
Maximum level.. . . . . . . . . . . . . . . . . . . +8.5 dBu (unbalanced) at 1% THD+N
NOTE: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
europe europe Dubai Dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
moDeL DesCriPtion
Two-Gang, Black
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Two-Gang, White
.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Four-Gang, Black
.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Four-Gang, White
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX
c o m p u t e r & r G b D i s t r i b u t i o n A m p l i f i e r s
PAGe
page 821
page 821
page 821
page 821

AuDio outPut

Number / Signal type.. . . . . . . . . . . . 1 stereo, balanced/unbalanced
Connectors.. . . . . . . . . . . . . . . . . . . . . . . . (1) 3.5 mm captive screw connector, 5 pole
Impedance. . . . . . . . . . . . . . . . . . . . . . . . . . 50 ohms unbalanced, 100 ohms balanced
Maximum level (Hi-Z).. . . . . . . . . . . . >+15 dBu, balanced or unbalanced at 1%THD+N
Maximum level (600 ohm).. . . . . . >+9 dBu, balanced or unbalanced at 1%THD+N
GenerAL
External power supply
(included).. . . . . . . . . . . . . . . . . . . . . . . . . . . 100 to 240 VAC to 12 VDC, 1 A (max.) external power supply, regulated
Power input requirements. . . . . . . 12 VDC, 0.2 A
Temperature / Humidity. . . . . . . . . . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Rack mount.. . . . . . . . . . . . . . . . . . . . . . . No, but wall- or furniture-mountable
Enclosure type.. . . . . . . . . . . . . . . . . . . . Metal
Enclosure dimensions
Plate
P/2 DA2 WM F.. . . . . . . . . . . . . . . . . . . . . 4.5" H x 4.6" W x 0.1" D
11.4 cm H x 11.7 cm W x 0.3 cm D
(2 gang)
P/2 DA2 WM F AAP. . . . . . . . . . . . . . . . . 4.5" H x 8.3" W x 0.1" D
11.4 cm H x 21.1 cm W x 0.3 cm D
(4 gang)
Box (All models). . . . . . . . . . . . . . . . . . . . . 2.6" H x 3.7" W x 1.6" D
6.6 cm H x 9.4 cm W x 4.1 cm D
Product weight
P/2 DA2 WM F.. . . . . . . . . . . . . . . . . . . . . 0.4 lbs (0.2 kg)
P/2 DA2 WM F AAP. . . . . . . . . . . . . . . . . 0.6 lbs (0.3 kg)
Shipping weight (all models).. . . . 2 lbs (1 kg)
Vibration.. . . . . . . . . . . . . . . . . . . . . . . . . . . ISTA 1A in carton (International Safe Transit Association)
Listings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL, CUL
Compliances.. . . . . . . . . . . . . . . . . . . . . . CE, FCC Class A
MTBF.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30,000 hours
Warranty.. . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years parts and labor
NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.
China China
+86.21.3760.1568 / +400.883.1568 +86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX +86.21.3760.1566 FAX
PArt #
70-519-22
70-519-23
70-519-42
70-519-43
Japan Japan
+81.3.3511.7655 +81.3.3511.7655
+81.3.3511.7656 FAX +81.3.3511.7656 FAX
537
