Appendix, cont'd

Cables

The table below lists various lengths of high resolution VGA
cables which can be used with the P/2 DA2 WM/EC.
Male-to-female VGA cables
VGA 6' HR
VGA 3' HR A (with audio)
VGA 6' HR A (with audio)
VGA 12' HR A (with audio)
VGA 25' HR A (with audio)
VGA 50' HR A (with audio)
P/2 DA2 WM/EC Appendix
A-6
Part number
26-112-15
29-491-01
29-491-02
29-491-03
29-491-04
29-491-05

Optional Architectural Adapter Plates

A variety of optional adapter plates for pass-through
connections may be ordered for the P/2 DA2 WM/EC. See the
figure A-3 below. The WM model can accommodate up to 4
adapter plates and the EC model can handle up to 3 adapter
plates. The adapter plates come in 2 sizes: one and two.
The WM model may be configured as follows:
• 4 adapter plates of plate size one or
• 2 adapter plates of plate size two or
• 2 adapter plates of plate size one and
one adapter plate of plate size two
The EC model may be configured as follows:
• 3 adapter plates of plate size one or
• 1 adapter plate of plate size two and
1 adapter plate of plate size one
Blank Plate (no connector)
Single Space
2 - BNC
3 - BNC
2 - RCA to Solder Cups
3 - RCA to Solder Cups
2 - S-video

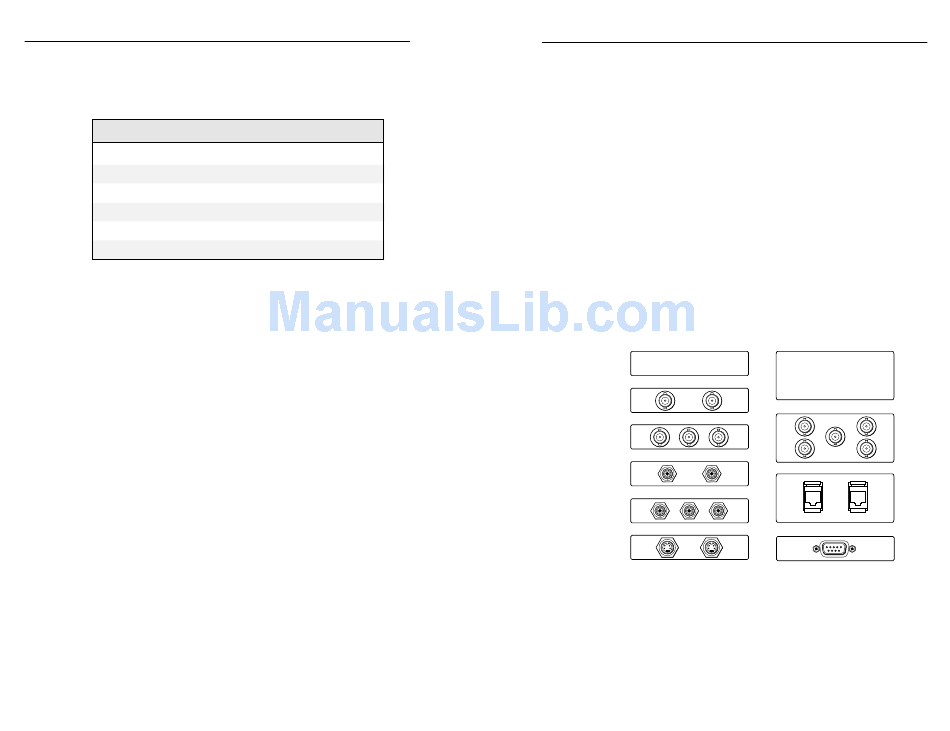

Figure A-3 — Examples of adapter plates
The tables on following pages list the available adapter plates
and distinguish between plates with a single type of connector
(Single type) or plates with more than one type of connector
(Multi type).
P/2 DA2 WM/EC Appendix
Blank Plate (no connector)
Double Space
5 - BNC (Double)
2 - RJ-11
1 - D-9 Pass Through Connector
A-7
