P/2 DA2 WM Faceplate Dimensions

Dimensions of the P/2 DA2 WM and its AAP version are

provided here for those who wish to make their own

customized faceplate. The following diagrams are not drawn to

scale.

HAND SAND TO 0.06" RADIUS

AROUND THE TOP OF

THESE EDGES.

.210 THRU

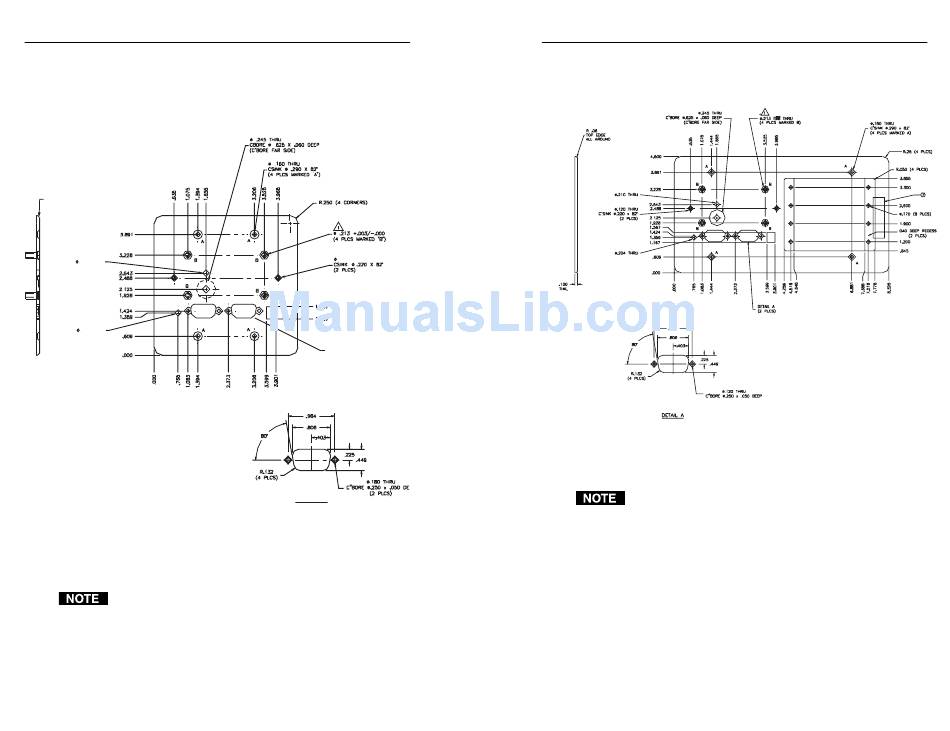

Figure A-1 — WM model faceplate dimensions

All dimensions are given in inches.

P/2 DA2 WM/EC Appendix

A-4

THRU

.120 THRU

DETAIL A

Figure A-2 — WM model AAP faceplate dimensions

All dimensions are given in inches.

P/2 DA2 WM/EC Appendix

A-5
