Under-furniture mounting
The GLI 350xi or ADA 2/GLI 350xi can be mounted under
furniture, such as a desk or table, using the optional MBU 125
mounting kit (Extron part #70-077-01), as follows.
1.
If rubber feet were previously installed on the bottom of
the unit, remove them.
2.
Attach the mounting brackets to the GLI with the provided
machine screws.

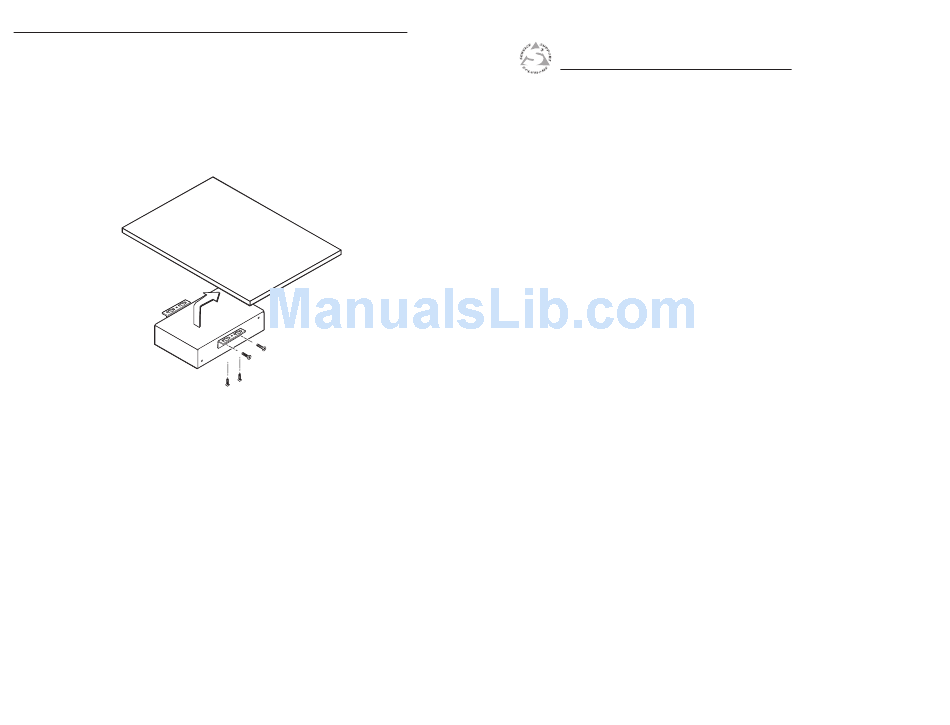

Under-furniture mounting of the GLI
3.
Hold the unit with the brackets attached against the
underside of the table or other furniture. Mark the location
of the screw holes of the bracket on the mounting surface.
4.
Drill four pilot holes, each 3/32" (2 mm) in diameter by
1/4" deep (6.3 mm) in the mounting surface at the marked
screw locations.
5.
Insert #8 wood screws into the four pilot holes. Tighten
each screw into the mounting surface until just less than
1/4" (6.3 mm) of the screw head protrudes.
6.
Align the mounting screws with the slots in the brackets
and place the unit against the surface, with the screws
through the bracket slots.
7.
Slide the unit slightly forward or back, then tighten all four
screws to secure the unit in place.
