Installation, cont'd

Rack mounting

The ground loop isolators can be mounted in a rack shelf using
the optional RSU 129 1U 9.5" deep universal rack shelf kit
(Extron part #60-190-01) or the RSU 126 1U 6" deep universal
rack shelf kit (Extron part #60-190-10), as follows.
1. If feet were installed on the bottom of the GLI, remove
them.
2. Place the GLI on one half of the 1U (one unit high, 19"
wide) rack shelf. Align the front of the GLI with the front
of the shelf, and align the threaded holes on the bottom of
the GLI with the holes in the rack shelf.
3. Attach the GLI to the rack shelf with the two provided
4-40 x 3/16" machine screws. Insert the screws from
the underside of the shelf, and securely fasten them into
diagonally opposite corners.

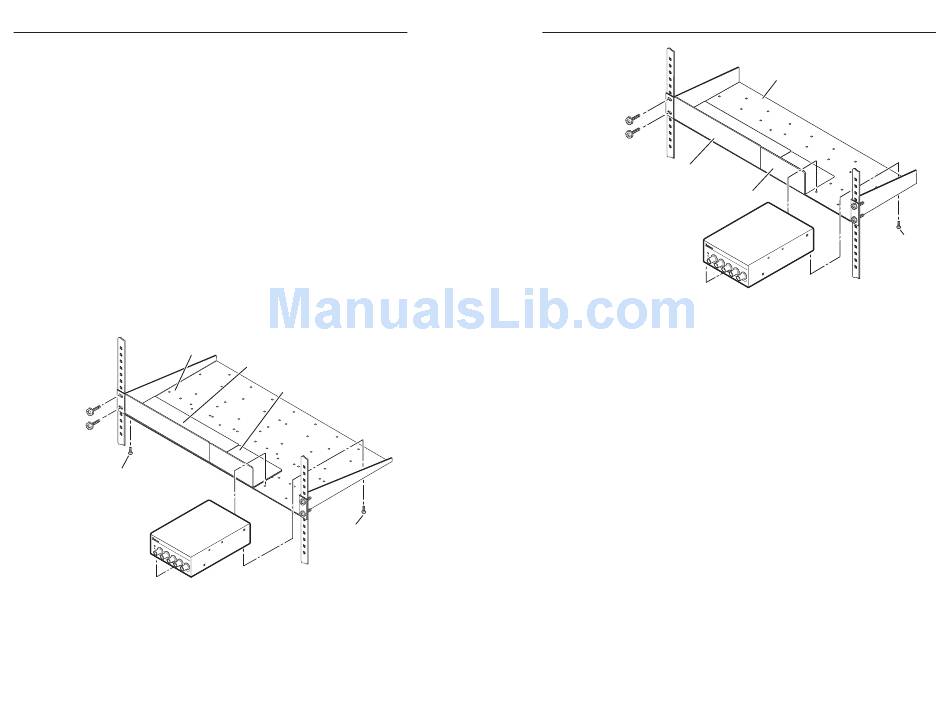

See the following illustrations of rack mounting using
Extron's RSU 129 universal 9.5 " deep and RSU 126
universal 6" deep rack shelves.
9.5" Deep Universal Rack Shelf
Both front false faceplates
use 2 screws.
G LI
GR
OU 35 0 xi
ND
LO S E
OP R IE
IS OL S
AT
OR
Rack mounting of the GLI in a 9.5" deep rack shelf
GLI 350xi & ADA 2/GLI 350xi • Installation
2-4
1/2 Rack Width Front False
Faceplate
1/4 Rack Width Front False
Faceplate
(2) 4-40 x 3/16"
Screws
Use 2 mounting holes on
opposite corners.
6" Deep Rack Shelf
1/2 Rack Width False Front
Face Plate
1/4 Rack Width False Front
Face Plate
Use 2 mounting holes G L
G RO I 35
UN 0 xi
D LO S E
O P R IE
IS O
S
LA TO
R
on opposite corners.
Rack mounting of the GLI in a 6" deep rack shelf
4. Attach the false front panels (provided with rack shelf kit
part #60-190-01 or 60-190-10) to the unoccupied side of the
rack (as shown above), as desired.
5. Attach the rack shelf to the rack using four 10-32 x ¾" bolts
(provided). Insert the bolts through #10 beveled washers,
then through the holes in the rack, as shown above.
GLI 350xi & ADA 2/GLI 350xi • Installation
(2) 4-40 x 3/16"
Screws
