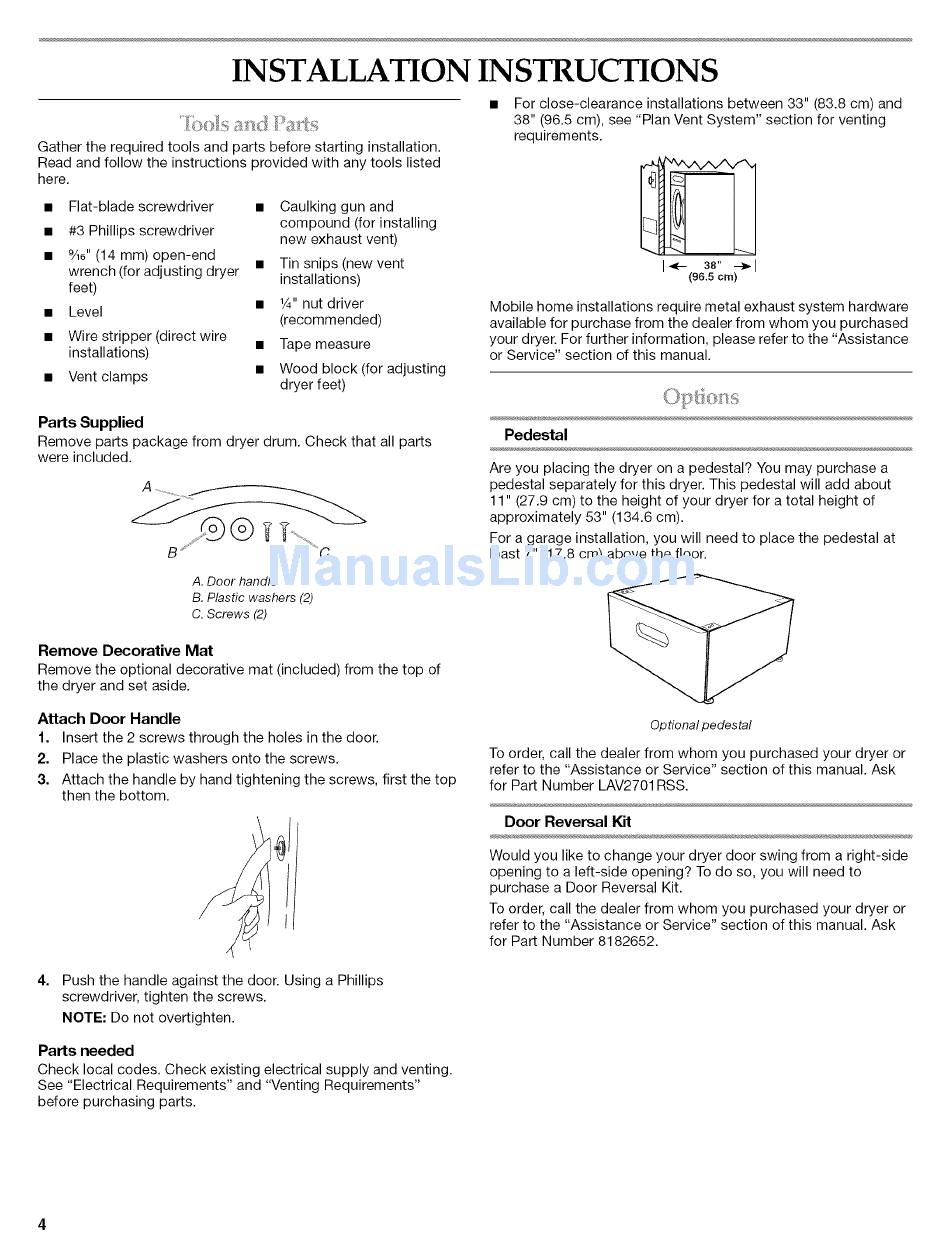

INSTALLATION
INSTRUCTIONS
Gather the required tools and parts before starting installation.
Read and follow the instructions
provided with any tools listed
here.
Flat-blade screwdriver
Caulking gun and
compound
(for installing
#3 Phillips screwdriver
new exhaust vent)
%6" (14 mm) open-end
wrench(for adjusting dryer
Tin snips (new vent
feet)
installations)
Level
1/4"nut driver
(recommended)
Wire stripper (direct wire
installations)
Tape measure
Vent clamps
Wood block(for
adjusting
dryer feet)
For close-clearance
installations between 33" (83.8 cm) and
38" (96.5 cm), see "Plan Vent System" section for venting
requirements.
I_-
ss"--_1
(96.5
cm)
Mobile home installations require metal exhaust system hardware
available for purchase from the dealer from whom you purchased
your dryer. For further information, please refer to the "Assistance
or Service" section of this manual.
Parts Supplied
Remove parts package from dryer drum. Check that all parts
were included.
A. Door handle
B. Plastic washers (2)
C. Screws (2)
Pedestal
Are you placing the dryer on a pedestal? You may purchase a
pedestal separately for this dryer. This pedestal will add about
11" (27.9 cm) to the height of your dryer for a total height of
approximately
53" (134.6 cm).
For a garage installation, you will need to place the pedestal at
least 7" (17.8 cm) above the floor.
Remove
Decorative
Mat
Remove the optional decorative mat (included) from the top of
the dryer and set aside,
Attach Door Handle
1. Insert the 2 screws through the holes in the door.
2. Place the plastic washers onto the screws,
3. Attach the handle by hand tightening the screws, first the top
then the bottom,
4.
4
Push the handle against the door. Using a Phillips
screwdriver, tighten the screws.
NOTE: Do not overtighten.
Optional pedestal
To order, call the dealer from whom you purchased your dryer or
refer to the "Assistance or Service" section of this manual. Ask
for Part Number LAV2701 RSS.
Door Reversal
Kit
Would you like to change your dryer door swing from a right-side
opening to a left-side opening? To do so, you will need to
purchase a Door Reversal Kit.
To order, call the dealer from whom you purchased your dryer or
refer to the "Assistance or Service" section of this manual. Ask
for Part Number 8182652.
Parts needed
Check local codes, Check existing electrical supply and venting.
See "Electrical Requirements"
and "Venting Requirements"
before purchasing parts.
