Be Strong.
™
NS 600X

Assembly Manual

Model: NS 600X
P/N: 001-7002 Rev A (09/29/2006)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Be strong NS 600X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nautilus Be strong NS 600X

Summary of Contents for Nautilus Be strong NS 600X

  • Page 1: Assembly Manual

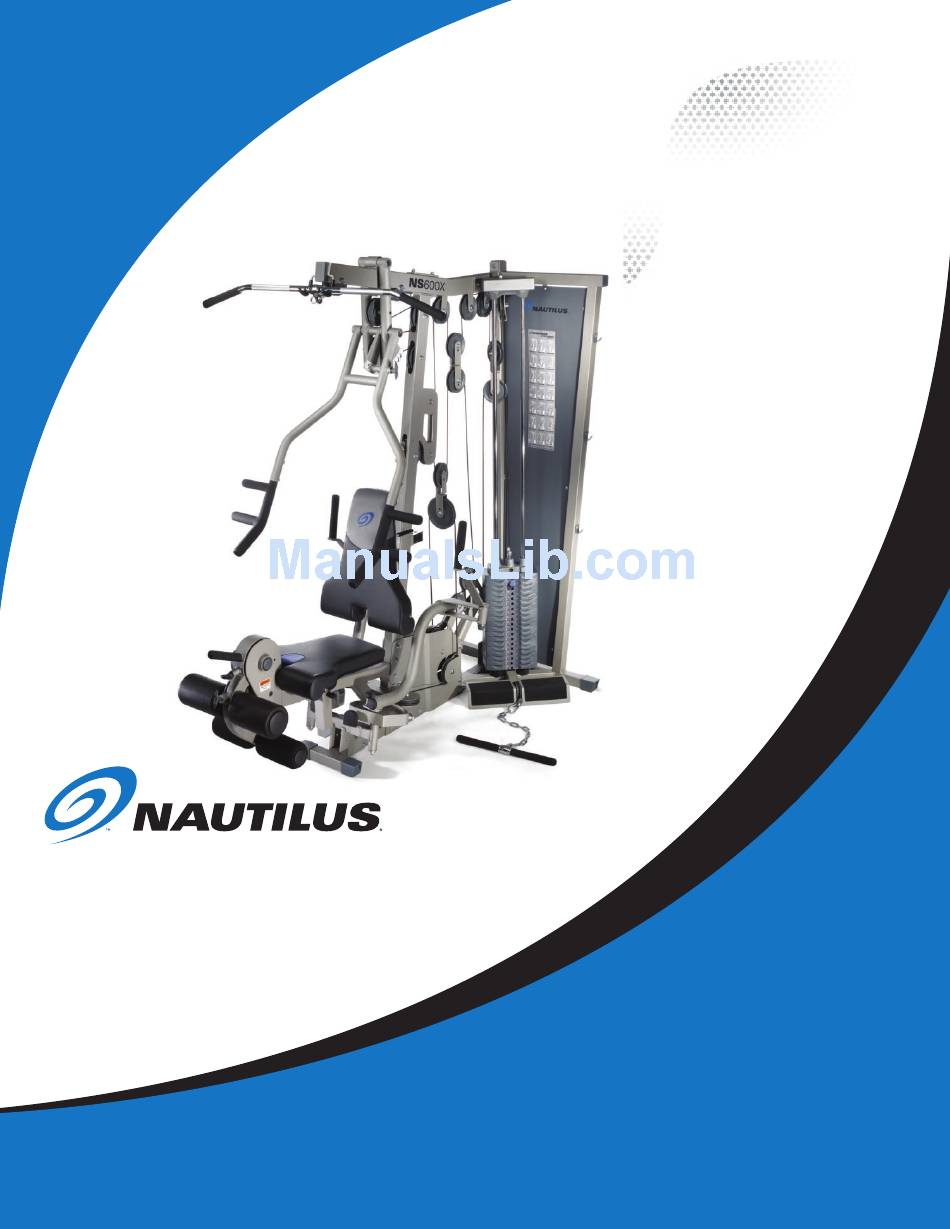

    Be Strong. ™ NS 600X Assembly Manual Model: NS 600X P/N: 001-7002 Rev A (09/29/2006)

  • Page 2: Table Of Contents

    Before You Assemble ....3 Product Specifications ....4 Product Features ......4 Parts List / Box Contents ..... 5 Exploded View ....... 6 Hardware and Tool List ....7 Assembly Guide ......8 Warranty Information ....20 Contacting Nautilus ...... 21...

  • Page 3: Before You Assemble

    BEFOrE YOu ASSEmBLE BaSic aSSeMBly PriNciPleS Here are a few basic tips that will aid in the assembly of the Nautilus® NS600X. By using these principles, you can simplify each process and save yourself extra time and effort. 1. To make the assembly process go faster, gather the pieces you need for each step and thoroughly read the assembly instructions for that step prior to starting assembly for the step.

  • Page 4: Product Specifications

    PrOduCT SPECIFICATIONS NOTE: All instructions in the manual are given with the orientation of sitting on the machine ready to exercise. 300lbs / 136.1Kg user Weight Capacity: dimensions: 47”w x 72”l x 83”h / 119 cm x 183 cm x 211cm Shipping Weight: 474.4 lbs / 215.2 kg Net Weight:...

  • Page 5: Parts List / Box Contents

    Touch Up Paint White ........1 Weight Plate ............19 Touch Up Paint Gray ......... 1 Weight Stack Bottom Plate ....... 1 NS 600 Documentation ........1 Weight Stack Cushion ........ Decal Kit ............. 1 Guide Rod ............ Nautilus NS600X...

  • Page 6: Exploded View

    ExPLOdEd VIEW A. Compare the Bill of Materials to the box contents to insure that all parts are present before installation begins. B. Unpackage parts and place them near the final asssembled location to avoid moving the gym when fully assembled.

  • Page 7: Hardware And Tool List

    Flat Washer Cap Head Step Spacer Flat Head Self Drilling Cable Clip Required Tools: 9/16” or 14mm Wrench or Socket (Two Required) 3/4” Wrench or Socket Adjustable Wrench 4, 5, 6 and 8mm Allen Wrenches (Included w/ Gym) Nautilus NS600X...

  • Page 8: Assembly Guide

    ASSEmBLY Recommended location for instructional work out diagram. NS600X Press Arm Before assembling this gym, please be aware that this piece of equipment can be assembled in two different configurations. The Weight Stack can be assembled on either side of the gym depending on what best fits your living space. This is accomplished simply by assembling the Rear Frame (2), Top Stack Support Frame (8), and Calf Raise / Low Pulley Frame (7) on the opposite side of the machine.
  • Page 9 2 Inch Backing Plate (10). Tighten all hardware 59 Hex Bolt 3/8” x 4 1/4”L used in this step securely. Hex Bolt 3/8” x 3 1/4”L Hex Bolt 3/8” x 3”L 3/8” Flat Washer 3/8” Lock Nut 15 Nautilus NS600X...
  • Page 10 ASSEmBLY STEP 2 3 1/4"L 3"L 3"L 137.75" (3500mm) 62 3"L 2”L 3"L 2”L Step 2 Components: Procedure: Component a. Attach Top Stack Support Frame (8) to Top Frame using a 3 Inch Backing Plate (11) and the hardware shown. Tighten hardware firmly. Calf Raise / Low Pulley Frame B.

  • Page 11: Lock Nut

    Install Plastic Cap (42) in the four locations shown. The Plastic Cap (42) should Shim Washer snap into place locking around the Shim Washer (75). 1/2” Lock Nut NoTe: Rubber Mallet may be needed to install Plastic Cap. 3/8” Lock Nut Nautilus NS600X...
  • Page 12 ASSEmBLY STEP 4 82 1/4"L 82 1/4"L 99 Step 4 Components: Procedure: Component a. Attach Press Arm Support Assembly (12) to the Top Frame using the Press Arm Support Shaft (45). Align shaft and tighten with 4 set screws (82) as shown. 12 Press Arm Support Assembly B.
  • Page 13 Back Pad Adjustment Plate (26). Tighten hardware securely making sure the Back 1/2” Lock Nut Pad Adjustment Plate (26) can rotate freely. 3/8” Lock Nut H. Install Back Pad Adjuster (25) in Front Upright in the slot shown. Nautilus NS600X...
  • Page 14 ASSEmBLY STEP 6 68 1"L Step 6 Components: Procedure: Component a. Slide Weight Stack Cushion (51) on each Guide Rod (52) allowing approximately Guide Rod Holder 3 inches of Guide Rod showing below the Weight Stack Cushion (51). Insert 48 Top Weight Assembly Guide Rods (52) into holes in the Calf Raise/Low Pulley Frame as shown.
  • Page 15 Proceed by looping the Cable around a 4 1/2” Pulley (44) and attach it to the Top Frame in Location B using the hardware shown. Make sure the cable is seated properly in the Pulleys, and tighten hardware securely. Nautilus NS600X...
  • Page 16 ASSEmBLY STEP 8 96.75" (2460mm) NS600X Press Arm 2 3/4"L 64 2 1/4"L Step 8 Components: Procedure: a. Attach Two 4 1/2” Pulleys (44) to the brackets shown in detail A using the hardware Component shown. Tighten hardware securely. Pec Fly Double Floating Pulley Bracket B.
  • Page 17 NoTe: Make sure to route Cable through the hole in the Pulley Mount tube. NoTe: This Cable termination is used for exercise attachments such as the NS-75. If an attachment is used, do not install Cable Housing (9). Please refer to attachment instructions for installation. Nautilus NS600X...
  • Page 18 ASSEmBLY STEP 10 122.5" (3110mm) 1 1/2"L 1 3/4"L 1 3/4"L 1 1/2"L Step 10 Components: Procedure: a. Attach two 4 1/2” Pulleys (44) to either side of the Leg Extension Assembly using Component the Low Pulley Cover (33) and the hardware shown. Note the orientation of the Low Pulley Cover Low Pulley Covers.
  • Page 19 C. After the cables are set and stretched, the Cable System may need to be re-tensioned. Tension the cables as described in Step A. D. The cables may need to be tensioned periodically as they may stretch slightly over time. Nautilus NS600X...

  • Page 20: Warranty Information

    Nautilus Fitness Products warrants to the original purchaser Nautilus Fitness Products will repair any product that proves of this Nautilus Home Gym to be free from defects in to be a defect in materials or workmanship. In the event repair materials or workmanship, with the exceptions stated below.

  • Page 21: Contacting Nautilus

    ImPOrTANT CONTACT NumBErS If you need assistance, please have both the serial number of your machine and the date of purchase available when you contact the appropriate Nautilus office listed below. WOrLdWIdE CuSTOmEr SErVICE INTErNATIONAL CuSTOmEr SErVICE • NOrTH AmErICA OFFICE •...
  • Page 22 © 2006 Nautilus, Inc. All rights reserved. Nautilus, the Nautilus logo, My Nautilus, Heart Strong, Changing the Game in Health and Fitness, REACT, ROC, Remote Operation Control, SuperSoft, Hyperdrive, Be Strong are either registered trademarks or trademarks of Nautilus, Inc.
