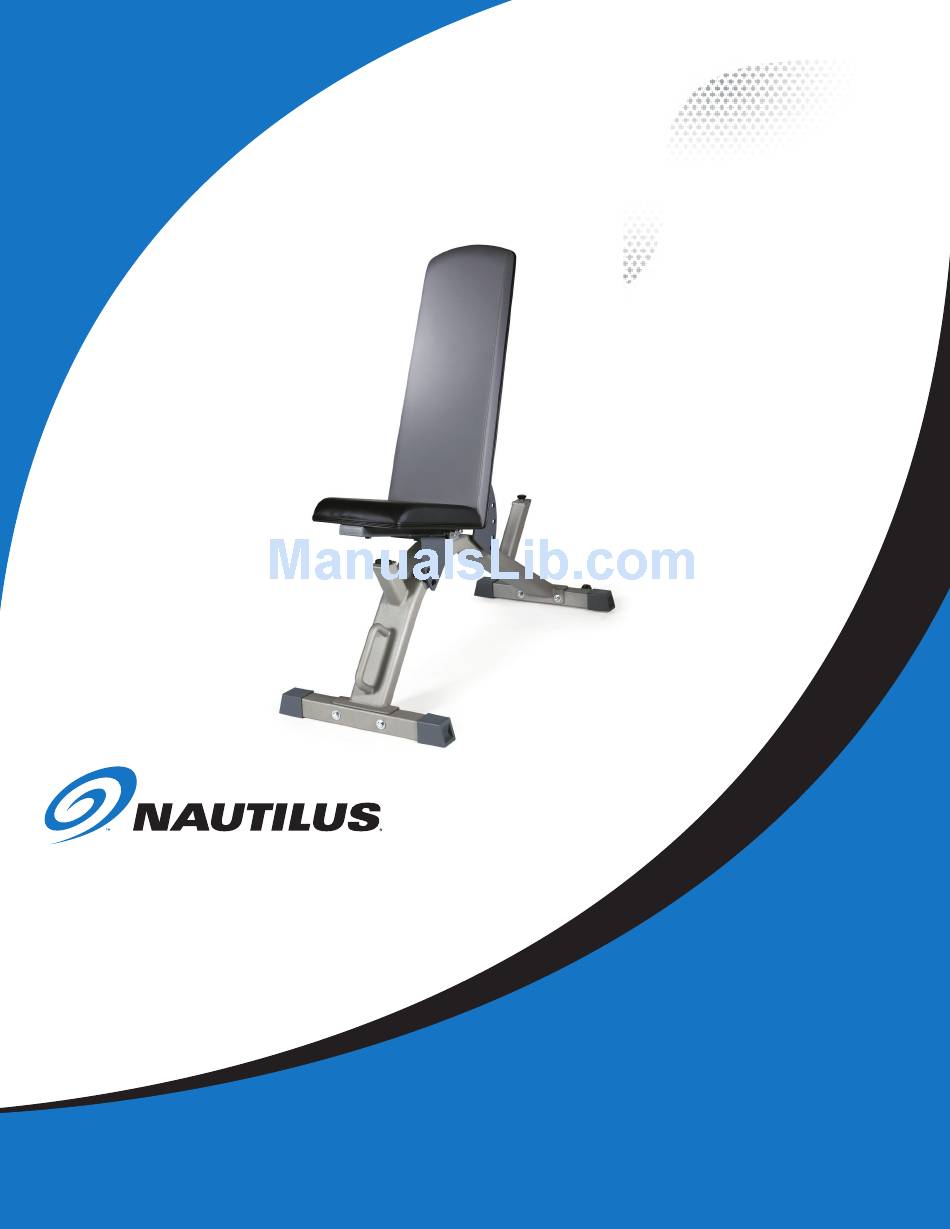

- Page 1 Be Strong. ™ NS 50X Assembly Manual Model: NS 50X P/N: 001-7005 Rev A (10/04/2006)
-
Page 2: Table Of Contents
TABLE OF CONTENTS Before You Assemble ....3 Product Specifications ....4 Parts List / Box Contents ..... 5 Exploded View ....... 6 Hardware and Tool List ....7 Assembly Guide ......8 Warranty Information ....10 Contacting Nautilus ...... 11... -
Page 3: Before You Assemble
4. As a general rule, and for all bolts and nuts on your NS50X Bench, turn bolts or nuts toward the right to tighten and left to loosen. Or you can remember the mnemonic: “Righty tighty, lefty loosey.”... -
Page 4: Product Specifications
PrOduCT SPECIFICATIONS NOTE: All instructions in the manual are given with the orientation of sitting on the machine ready to exercise. 300lbs / 136.1Kg user Weight Capacity: dimensions: 18”w x 50”l x 19”h / 46 cm x127 cm x48cm Shipping Weight: 66.1 lbs / 32 kg Net Weight: 60.2 lbs / 27.3 kg... -
Page 5: Parts List / Box Contents
11 Hex Bolt 3/8” x 2” ....... 2 12 Hex Bolt 3/8” x 1 3/4” ......3 13 3/8” Flat Washer ........ 13 14 3/8” Lock Nut ........4 15 1/2” Flat washer ......... 4 16 1/2” Lock Nut ........2 Nautilus NS50X... -
Page 6: Exploded View
ExPLOdEd VIEW • Compare the Bill of Materials to the box contents to insure that all parts are present before installation begins. -
Page 7: Hardware And Tool List
HArdWArE ANd TOOLS Hex Bolt Lock Nut Flat Washer Required Tools: 9/16” or 14mm Wrench or Socket (Two Required) 3/4” Wrench or Socket (Two Required) Adjustable Wrench Nautilus NS50X... -
Page 8: Assembly Guide
ASSEmBLY STEP 1 2 3/4”L 10 2 3/4”L Step 1 Components: Procedure: component a. Attach the Front Stabilizer Assembly (2) to the Bench Frame Assembly (1) using the hardware shown above. Tighten hardware securely. Bench Frame Assembly B. Attach the Rear Stabilizer Assembly (3) to the Bench Frame Assembly (1) Front Stabilizer Assembly using the hardware shown above. - Page 9 Tighten hardware securely. Hex Bolt - 3/8” x 1 3/4”L D. Attach the Back Pad (7) to the Seat Frame Assembly (5) using the hardware 3/8” Flat Washer shown above. Tighten hardware securely. ½” Flat Washer ½” Lock Nut Nautilus NS50X...
-
Page 10: Warranty Information
Nautilus Fitness Products warrants to the original purchaser Nautilus Fitness Products will repair any product that proves of this Nautilus Home Gym to be free from defects in to be a defect in materials or workmanship. In the event repair materials or workmanship, with the exceptions stated below. -
Page 11: Contacting Nautilus
ImPOrTANT CONTACT NumBErS If you need assistance, please have both the serial number of your machine and the date of purchase available when you contact the appropriate Nautilus office listed below. WOrLdWIdE CuSTOmEr SErVICE INTErNATIONAL CuSTOmEr SErVICE • NOrTH AmErICA OFFICE •... - Page 12 © 2006 Nautilus, Inc. All rights reserved. Nautilus, the Nautilus logo, My Nautilus, Heart Strong, Changing the Game in Health and Fitness, REACT, ROC, Remote Operation Control, SuperSoft, Hyperdrive, Be Strong are either registered trademarks or trademarks of Nautilus, Inc.
