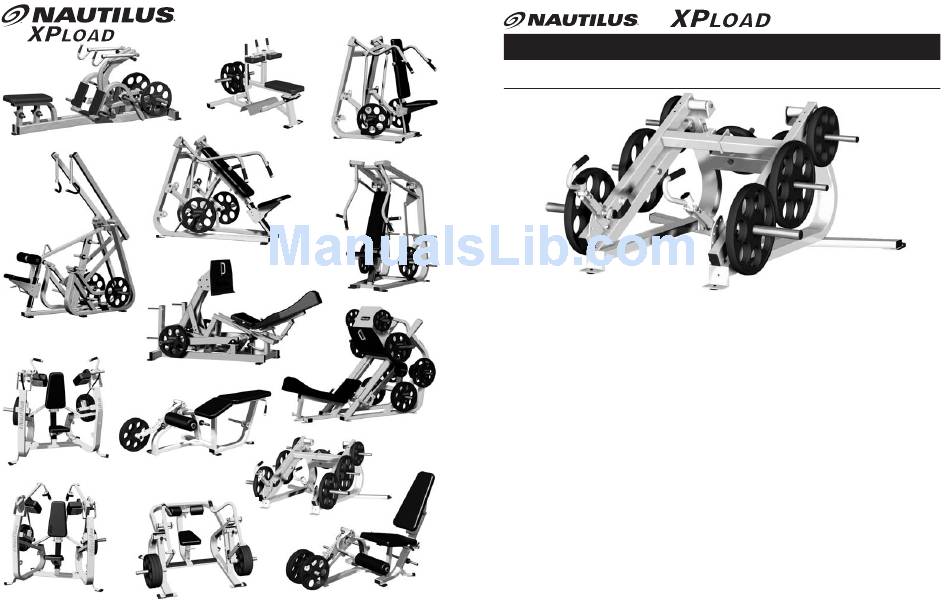

Nautilus P3DLS Maintenance Instructions

COMPOUND ROW
INCLINE PRESS
LAT PULLDOWN
BICEP CURL LEG CURL PRONE
TRICEP EXTENSION SEATED DIP
SEATED CALF
OVERHEAD PRESS
VERTICAL CHEST
LEG PRESS
INCLINE LEG PRESS
DEAD LIFT / SHRUG
LEG EXTENSION
DEAD LIFT / SHRUG
PARTS AND SERVICE u 709 Powerhouse Road u Independence,
VA 24348
P3DLS P3 DEAD LIFT / SHRUG
COMP# COMPONENT DESCRIPTION
1....BSF334......BASEFRAME P3DLS
2....BSF339......BASE FOOT P3DLS
3....HB328........HANDLE PIVOT RIGHT P3DLS
4....HB329........HANDLE PIVOT LEFT P3DLS
5....HB603........HANDLE COMMON
6....WA337 .......WEIGHT ARM LEFT P3DLS
7....WA340 .......WEIGHT ARM RIGHT P3DLS
8....01-1331......BOLT HH5 1/2 X 2 3/4
8A ...01-1259......BOLT HH5 1/2 X 3/4
9....01-1115 ......BOLT HH5 3/8 X 2 1/2
9B ...01-1400......BOLT HH5 1/2 X 4 1/2
10....01-1403......BOLT HH5 1/2 X 4 3/4
11 ....01-2185......BOLT HH5 5/8-18 X 2 1/2
12....01-2283......BOLT HH5 5/8 X 8 5/8 CUT-OFF
13....02-1370......BOLT AC 1/2 X 3
13A .02-2290......1/4 X 1 AFH SCREW
14....02-4115......BOLT AC 1/2 X 3/4
15....02-3055......1/4-28 X 1/4 SET SCREW
16....03-1035......3/8 NUT
17....03-1055......NUT FLANGE 1/2-13
18....03-1067......NUT 5/8
19....03-5119......NUT RT THREAD 5/8 X 18 JAM NUT
19A .04-5203......1/2 USS FLAT WASHER
20....04-5207......1/2 FLAT WASHER
21....04-5213......3/8 INT LOK WASHER
22....04-5214......1/2 LOK WASHER
23....04-5215......5/8 LOK WASHER
23A .05-5140......BUSHING SNAP 3/4 ID
24....06-8263......SNAP RING INTERNAL 1 9/16" DIA 5000-156
25....06-9035......ROD ENDS 5/8-18 RH THREADS CTMD-10
26....07-4124......PLUNGER ASSEMBLY
27....07-5064......6203 BEARINGS (NOT FAFNIR)
28....07-7041......ROLL PIN 1/4 X 2
29....07-9605......BEARING SLEEVE 1 OD X 5 33/64 L
30....07-9607......BEARING CUPS WITH BEARINGS
31....07-9610......BEARING SPACERS
32....07-9625......WEIGHT TUBE 1 7/8 X .25W TUBE X 16" LONG
PARTS DIAGRAM
REVISED:
19-5226
March 24, 2006
SERIAL #_______________________________
through ________________________________
COMP# COMPONENT DESCRIPTION
33....07-9751......ADJUSTMENT PLATE
34....07-9758......LOCK PIN
34A .08-2053......SPACER HUB EXTRUDED PLASTIC 3"
35....08-2055......SPACER
36....08-3077......SPACER
36A .09-1002......HAND GRIP 3/4 X 3" YELLOW
37....09-1023......HAND GRIP 7/8 ID X 3.75" OPEN END
38....09-9535......GRIP RING ALUMINUM (FOR 1" BAR)
39....09-2060......1 1/2 X 3 FRAME PLUG
40....09-2090......2 X 3 FRAME PLUG
41....09-3055......2 X 4 FRAME PLUG
42....09-3090......HOLE PLUG BLACK
43....09-3091......HOLE PLUG YELLOW
44....09-4064......WEIGHT STORAGE BUMPER, 1.875 ID X 3/4 X 3" OD
45....09-5010......DOCK BUMPER
46....09-5030......FOOT PAD ROUND
47....09-5045......NEW RECTANGULAR FOOTPAD
48....09-9505......GRIP CAP ALUMINUM (FOR 1" DIA BAR)
49....09-3065......HOLE PLUG 9/16 DIA. WHITE
50....09-8172......1 3/4 DIA HOLE PLUG BLACK
50A .09-9590......TUBE INSERT
51....10-1013......SPRING LC072L06S(LEE SPR.), L 2", WIRE DIA. .072, OD .970
52....12-1026......KEEP HANDS AWAY (YELLOW)
53....12-1380......INSPECTION STICKER DECAL
53A .12-1685......P3DLS PLATE DECAL LEFT (1-5)
53B .12-1686......P3DLS PLATE DECAL RIGHT (1-5)
54....12-1185......NAUTILUS SMALL GRAY DECAL
54A .12-5311......INSTRUCTIONAL PLACARD P3DLS
55....19-1291......DECAL SERIAL # BAR CODE
56....19-5226......PARTS DIAGRAM / OWNERS MANUAL
57....45-1062......1 X 1.125 .75 IGUS FLANGE BUSHING
OPT-WT-BAR07 P3DLS WEIGHT STORAGE KIT
58....01-1105......BOLT HH5 3/8 X 1 3/4
59....04-5213......3/8 INT LOK WASHER
60....07-9682......WEIGHT STORAGE PIN 1 1/4 DIA CR X 11 5/8" LONG
61....09-4001......P3 NUMBER PLUG 10 lb
62....09-4002......P3 NUMBER PLUG 25 lb
63....09-4003......P3 NUMBER PLUG 45 lb
64....09-4066......WEIGHT STORAGE, 1 1/4 ID X 3/4 X 3" OD RUBBER
