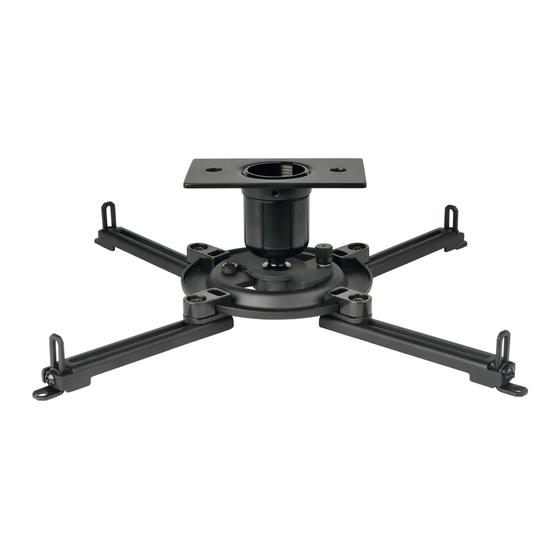

Pjf2 projector mount for multimedia projectors up to 50 lb (22 kg)

Advertisement

Quick Links

PJF2-UNV(-S)
PJF2-1(S)
Features
Pre-installed security screws
at all connection points
Quick- release mechanism
to easily service projector
Features a 1-1/2" (38 mm)
cable access hole allowing
cables to be routed
through projector mount
out of sight
Pre-assembled design
reduces installation time
Structural ceiling plate
included for flush mounting
applications
Spider
Universal Adapter
®
Plate extends up to 17.63"
(448 mm) to fit most
projector models
Specifications:
Tilt:
±15°
Roll:
±15°
Swivel:
360°
All with positive
lock at any
degree
PJF2 Projector Mount
For Multimedia Projectors up to 50 lb (22 kg)
Vector Pro™ II provides a clean look with its cable management capabilities. The included
extension column connector incorporates internal cable management paths that keep unsightly
cords concealed from view. The mount also features a ceiling plate, ball and socket design,
multidirectional positioning (roll, pitch and yaw) for proper image alignment and preinstalled
security hardware at every connection point. This projector mount is perfect for use in classrooms,
boardrooms, hotels, bars and restaurants or anywhere a projector needs to be mounted. The
Vector Pro™ II can be flush mounted to the ceiling or mounted on the wall. It can also be
mounted using 1-1/2" (38 mm) diameter extension column or 1/2" (38 mm) thread rod.
Quick image alignment
Single point of adjustment for
quick image allignment
click: www.peerlessmounts.com
Tamper Resistant
Includes 1 ½" (38 mm) Internal
Hardware
Cable Management Access Hole
call: 800.865.2112
FaX: 708.865.2941
Max load: 50 lb (22 kg)
eFFortless projector
maintenance
With its intuitively designed
quick-release thumbscrew that
smoothly unwinds to enable
easy-glide removal of the
projector in and out of the
mount. No tools required.
universal compatibility
Includes the Spider
®
Universal
Adapter Plate which extends
up to 17.63" (448 mm) to fit most
projector models
Model Specific
Adapters Available
