PEERLESS CMJ455 Installation & Assembly

PEERLESS CMJ455 Installation & Assembly

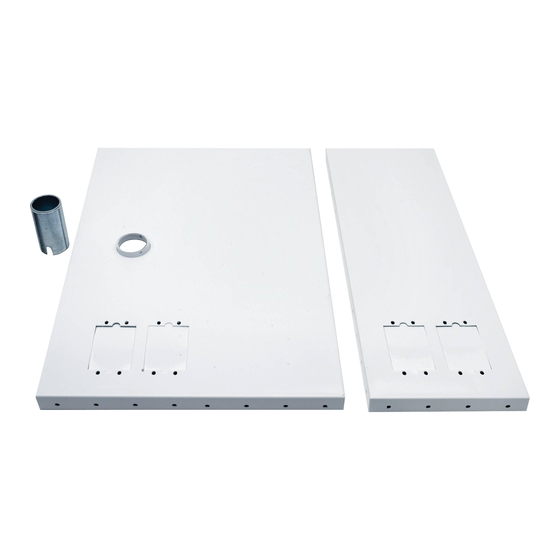

Lightweight suspended ceiling plate for projector mounts

Advertisement

Installation & Assembly -
This product is intended for use with UL
U L
Listed products and must be installed by a
C
US
©
qualifi ed professional installer.
Max. Load Capacity : 50 lb (22.7 kg)
• Weight of TV or screen shall not exceed maximum load capacity.

Parts List

Description
A
ceiling tray
A1 filler tray
B
1/4"-20 x 3/8" screws
C
1/4"-20 nuts
D
allen wrench
F
turnbuckle
20' (6.1m) tie wire (not shown)
G
K
eye bolt
L
concrete anchor
M
flush mount tube
N
M5 x 10 mm penta pin screw
M5 x 1" penta pin driver
O
B
C
F
K
Visit the Peerless Web Site at www.peerlessmounts.com
Lightweight Suspended Ceiling
Plate for Projector Mounts
WARNING
Qty. Part #
1
128-2198
1
128-2207
4
520-2015
4
530-9302
1
560-9706
4
560-9620
1
600-2008
5
580-0006
5
580-0005
1
1446-014
1
505-9010
1
520-9249
D
L
M
This Suspended Ceiling Plate is intended for use only to support Projec-
tor Mounts or other products as specifi ed by Peerless.
A
A1
N
1 of 5
For customer service call 1-800-865-2112 or 708-865-8870.
Model: CMJ455
O
ISSUED: 05-27-99 SHEET #: 128-9103-6 06-21-10
