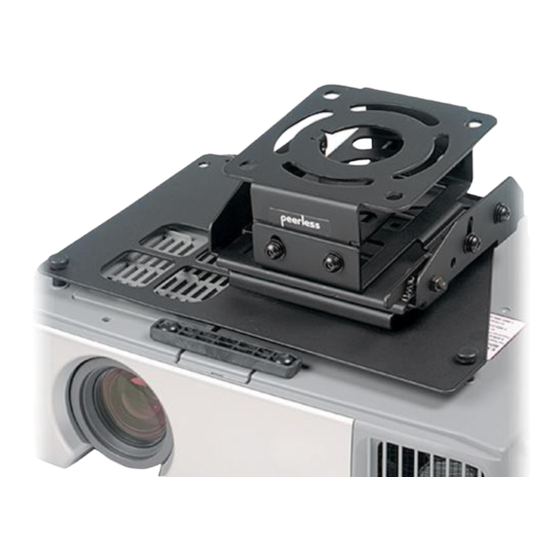

Installation and Assembly- Encore™ Projector Mount
Protected by U.S. Patent No. 6,042,068
IMPORTANT! Read entire
instruction sheet before you
start installation and assembly.
WARNING! Installer must verify
that the ceiling will safely
support the combined weight of
the Base Unit, Projector Adapter
Plate, and video projector.
Peerless Industries, Inc., 1980 Hawthorne Avenue, Melrose Park, IL 60160

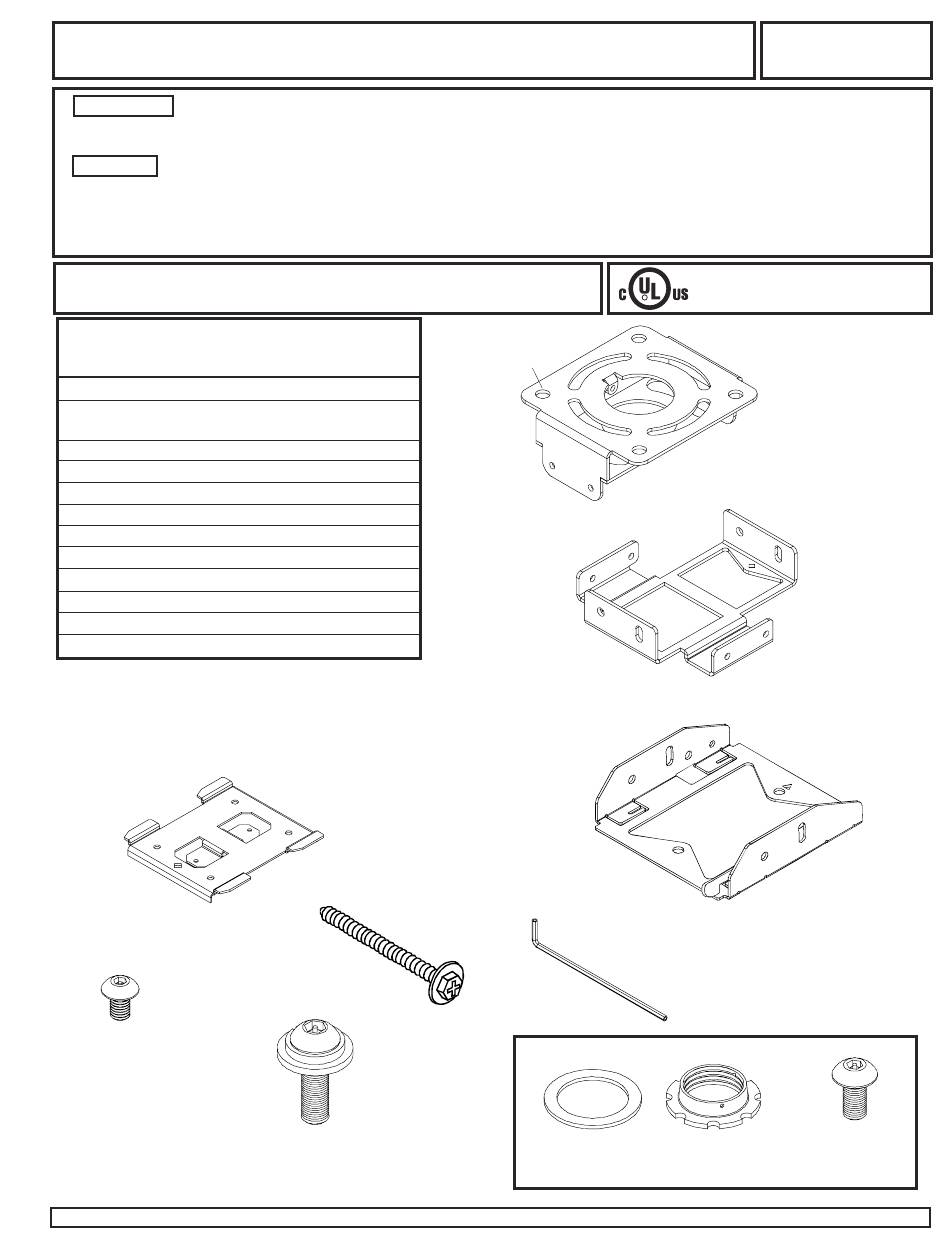

Parts List
Description
A
projector mount ceiling plate
B
washer head wood screw
#14 x 2.5 (6mm x 65mm)
C
M6 x 1 x 20mm socket head screw
w/ flat and lock washer
D
security allen wrench
E
M5 x .8 x 8mm socket pin screw
F
main bracket assembly
G
fiber washer
H
retaining collar
I
M5 x .8 x 10mm socket pin screw
J
roll adapter bracket
K
interface bracket
Note: Actual parts may appear slightly different than illustrated.
*
Four .406 dia. holes provided for threaded rod
installations. Materials and procedure for such
installations are the sole responsibility of the installer.
E
© 2003 Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc.
Encore is a trademark of Peerless Industries, Inc.
All other brand and product names are trademarks or registered trademarks of their respective owners.
Visit the Peerless Web Site at www.peerlessindustries.com
This product contains all mounting hardware for direct attachment to a wood joist
ceiling. Concrete anchors (accessory kit ACC200, see page 2) sold separately.
This product is to be used in combination with one of several Projector Adapter
Plates (PAP models).
To order Projector Adapter Plates, Extension Columns, or additional mounting
hardware call customer service at 1-800-729-0307 or 708-865-8870.
Before you start check the parts list below to make sure all of the parts shown
are included.
www.peerlessindustries.com
Qty.
Part Number
054-1003
1
2
5S1-015-C03
520-1029
9
560-9646
1
2
520-1062
1
054-1044
540-9432
1
1800-375
1
520-1164
3
1
054-1050
055-1251
1
K
B
C
R
A
*
J
F
D
G
Parts G, H, and I are used only for installations that
incorporate an extension column.
1 of 5
ISSUED: 09-09-02 SHEET #: 054-9122-3 11-11-03
For customer service call 1-800-729-0307 or 708-865-8870.
Model: PJRL411
This product is intended for use with UL
Listed products and must be installed by a
qualified professional installer.
I
H
Advertisement
Table of Contents
Related Manuals for PEERLESS Encore PJRL411
Summary of Contents for PEERLESS Encore PJRL411
- Page 1 Before you start check the parts list below to make sure all of the parts shown Plate, and video projector. are included. This product is intended for use with UL Peerless Industries, Inc., 1980 Hawthorne Avenue, Melrose Park, IL 60160 Listed products and must be installed by a www.peerlessindustries.com qualified professional installer.
- Page 2 BEARING CONCRETE ONLY! NOT FOR ATTACHMENT TO CONCRETE CEILING COVERED WITH PLASTER, DRYWALL, TILE OR OTHER FINISHING MATERIAL! CONCRETE ANCHOR INSTALLATION 2 of 5 ISSUED: 09-09-02 SHEET #: 054-9122-3 11-11-03 Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
- Page 3 It will be required to attach the Projector Adapter Plate. NOTE: Arrow indicates front of main bracket (F). 3 of 5 ISSUED: 09-09-02 SHEET #: 054-9122-3 11-11-03 Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
- Page 4 Fasten interface bracket (K) to adapter plate using two M5 socket-pin screws (E). Tighten screws (E) using 4mm allen wrench (K). 4 of 5 ISSUED: 09-09-02 SHEET #: 054-9122-3 11-11-03 Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
- Page 5 Peerless offers several Projector Mounts to fit various video projectors. New Projector Mounts are continually being developed to meet the demands of a growing projector market. To find out if a mount is available for your particular projector call Peerless customer service at 1-800-729-0307 or 708-865-8870.
