Installation and Assembly Manual:

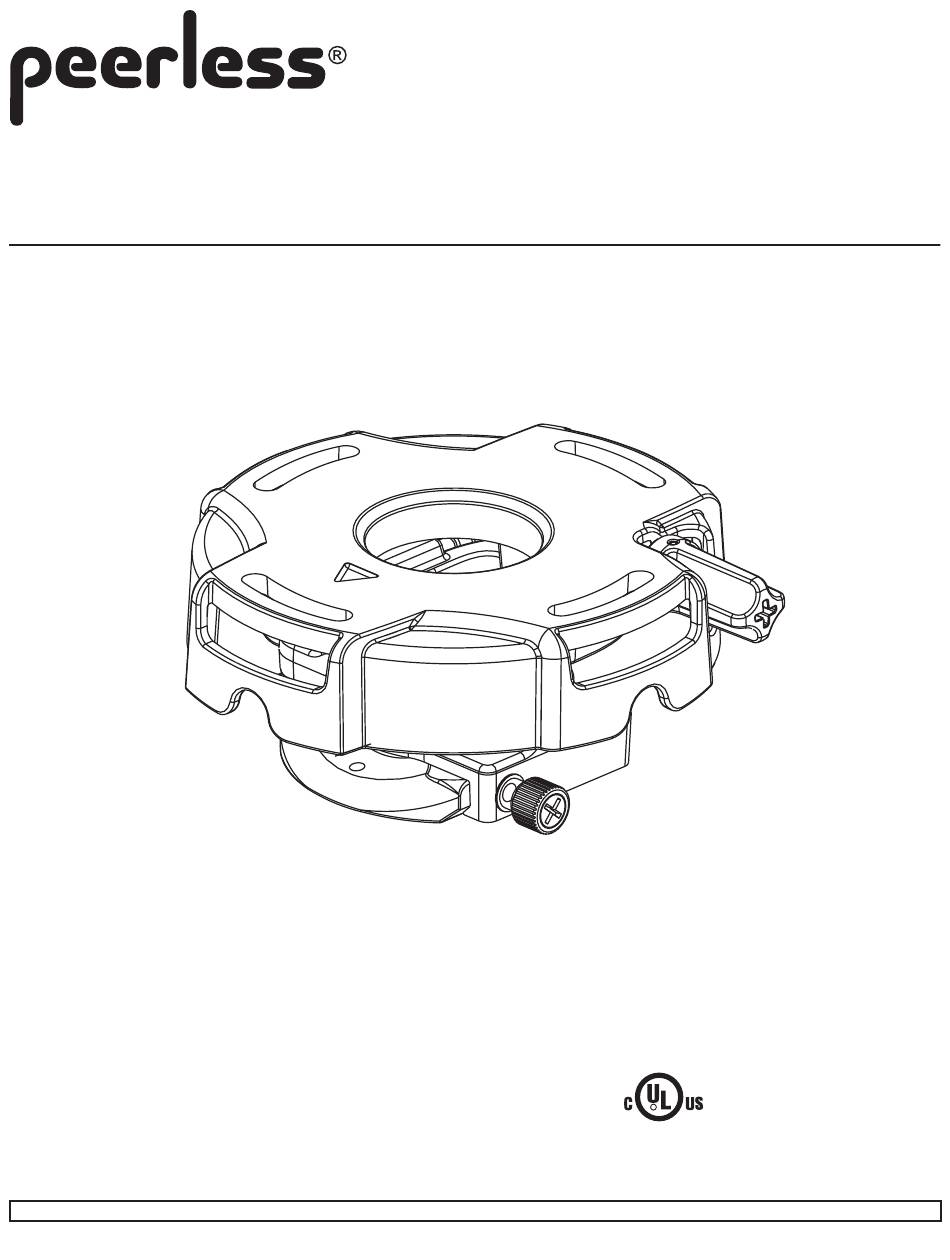

PRG Precision Gear Projector Mount
Models: PRG-1, PRG-1S, PRG-1W
Features:
TM
• ImageLock
alignment prevents picture sag or drift
• Wrench access slot for easier flush mount installations
• Exclusive aluminum track quick release
Visit the Peerless Web Site at www.peerlessmounts.com
Maximum UL Load Capacity:
1 of 12
For customer care call 1-800-865-2112 or 708-865-8870.
This product is intended for use with UL
Listed products and must be installed by a
qualified professional installer.
R
50 lb (22.7 kg)
ISSUED: 08-15-07 SHEET #: 055-9491-1
Advertisement
Table of Contents
Related Manuals for PEERLESS PRG-1S
Summary of Contents for PEERLESS PRG-1S
- Page 1 • Wrench access slot for easier flush mount installations qualified professional installer. • Exclusive aluminum track quick release Maximum UL Load Capacity: 50 lb (22.7 kg) 1 of 12 ISSUED: 08-15-07 SHEET #: 055-9491-1 For customer care call 1-800-865-2112 or 708-865-8870. Visit the Peerless Web Site at www.peerlessmounts.com...
-
Page 2: Table Of Contents
WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings con- tained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, call Peerless customer care at 1-800-729-0307. -
Page 3: Parts List
Disengage connection block from projector mount assembly (A) by unscrewing captive screw and sliding out connection block as shown. CONNECTION BLOCK CAPTIVE SCREW 3 of 12 ISSUED: 08-15-07 SHEET #: 055-9491-1 For customer care call 1-800-865-2112 or 708-865-8870. Visit the Peerless Web Site at www.peerlessmounts.com... -
Page 4: Installation To Extension Columns / Ceiling Plate
FRONT OF FRONT OF MOUNT MOUNT fig. 2.1 fig. 2.2 CMJ 455 (SOLD SEPARATELY) SWIVEL STOP SCREW fig. 2.3 4 of 12 ISSUED: 08-15-07 SHEET #: 055-9491-1 For customer care call 1-800-865-2112 or 708-865-8870. Visit the Peerless Web Site at www.peerlessmounts.com... -
Page 5: Installation To Wood Joist Ceilings
OF WOOD SCREW (D) WOOD JOIST WOOD JOIST WITHOUT REMOVING PROJECTOR FRONT OF MOUNT FRONT OF MOUNT figure 3.2 figure 3.1 5 of 12 ISSUED: 08-15-07 SHEET #: 055-9491-1 For customer care call 1-800-865-2112 or 708-865-8870. Visit the Peerless Web Site at www.peerlessmounts.com... -
Page 6: Installation To Concrete Ceilings
Place mount over anchor and secure with screw concrete concrete plaster/ plaster/ dry wall dry wall After repeating step one tighten all fasteners 6 of 12 ISSUED: 08-15-07 SHEET #: 055-9491-1 For customer care call 1-800-865-2112 or 708-865-8870. Visit the Peerless Web Site at www.peerlessmounts.com... -
Page 7: Installation To Threaded Rods
1/4-20 HEX THIN 1/4-20 HEX THIN NYLON-INSERT NYLON-INSERT LOCKNUT LOCKNUT fig. 5.1 fig. 5.2 (NOT INCLUDED) (NOT INCLUDED) 7 of 12 ISSUED: 08-15-07 SHEET #: 055-9491-1 For customer care call 1-800-865-2112 or 708-865-8870. Visit the Peerless Web Site at www.peerlessmounts.com... -
Page 8: Attaching Adapter Plate To Projector
(SOLD SEPARATELY) Note: Attach PAP-UNV adapter plate to projector (see PAP-UNV instructions) before proceeding to step 7. fig. 6.2 8 of 12 ISSUED: 08-15-07 SHEET #: 055-9491-1 For customer care call 1-800-865-2112 or 708-865-8870. Visit the Peerless Web Site at www.peerlessmounts.com... -
Page 9: Attaching Adapter Plate To Projector Mount
(A) and into connection block as shown. Tighten screw using 4mm security allen wrench (B). CONNECTION BLOCK 9 of 12 ISSUED: 08-15-07 SHEET #: 055-9491-1 For customer care call 1-800-865-2112 or 708-865-8870. Visit the Peerless Web Site at www.peerlessmounts.com... -
Page 10: Projector Alignment
TO LOCK ROLL TIGHTEN TAMPER RESISTANT TO LOCK PITCH TIGHTEN SECURITY SCREW TAMPER RESISTANT SECURITY SCREW FRONT VIEW SIDE VIEW 10 of 12 ISSUED: 08-15-07 SHEET #: 055-9491-1 For customer care call 1-800-865-2112 or 708-865-8870. Visit the Peerless Web Site at www.peerlessmounts.com... -
Page 11: Accessories
• ACC 558 clamps onto 4"-8" I-Beam • ACC 559 clamps onto 7"-12" I-Beam = Not UL Listed 11 of 12 ISSUED: 08-15-07 SHEET #: 055-9491-1 For customer care call 1-800-865-2112 or 708-865-8870. Visit the Peerless Web Site at www.peerlessmounts.com... - Page 12 ISSUED: 08-15-07 SHEET #: 055-9491-1 Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870. © 2007, Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners.
