Installation and Assembly:
Advanced Projector Ceiling Mount with Precision
Gear
Model: ELPMBPRG
Manufactured by Peerless Industries, Inc.
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
This product is UL Listed. It must be
installed by a qualified professional
installer.
R
Maximum UL Load Capacity:
ISSUED: 04-01-08 SHEET #: 055-9254-7 04-21-10
50 lb (22.7 kg)
Advertisement
Table of Contents
Related Manuals for PEERLESS ELPMBPRG
Summary of Contents for PEERLESS ELPMBPRG

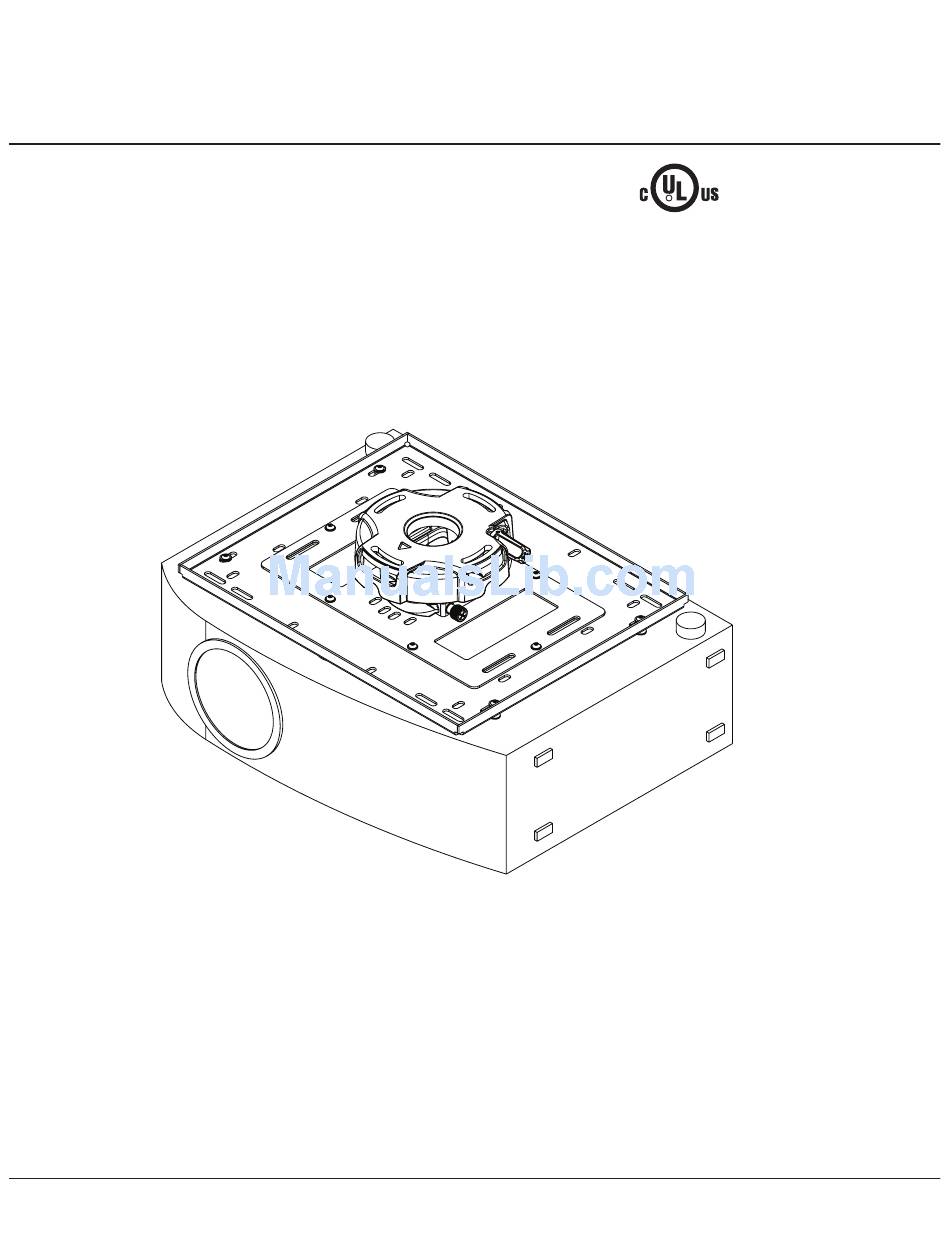

- Page 1 Installation and Assembly: Advanced Projector Ceiling Mount with Precision Gear Model: ELPMBPRG Manufactured by Peerless Industries, Inc. 3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com This product is UL Listed. It must be installed by a qualified professional installer.
-
Page 2: Table Of Contents
Installation to Extension Column ...4 Installation To Wood Joist Ceilings ...5 Installation to Concrete Ceilings ...6 Installing Plates to Projector ...7 Installing Connection Block to Projector Mount Assembly...9 Cable Management ... 10 Projector Alignment ...11 Accessories and Warranty Information ... 12 Visit the Peerless Web Site at www.peerlessmounts.com... -
Page 3: Parts List
Before you start check the parts list to ensure all of the parts shown are included. Parts List Description A projector mount assembly B adapter plate C dedicated adapter plate D M4 x 20 mm socket pin serrated washer head screw E M5 x 20 mm socket pin serrated washer head screw F 3/8"... -
Page 4: Installation To Extension Column
NOTE: Swivel stop screw is used to jam against threads of extension column or flush mount tube to prevent any excess movement of projector mount assembly (A) as shown in detail 1. Do not overtighten screw; overtightening screw will damage threads making it difficult to separate products. -
Page 5: Installation To Wood Joist Ceilings
Drill two 5/32" (4 mm) dia. holes to a minimum depth of 2.5" (64 mm). Attach projector mount assembly (A) with two #14 x 2.5" (6 mm x 65 mm) wood screws (L) and two flat washers (K) as shown in figure 1.3 or figure 1.4 depending on joist orientation. -
Page 6: Installation To Concrete Ceilings
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard- ware and components. Place projector mount assembly (A) on ceiling as a template and mark the center of the two mounting holes. -
Page 7: Installing Plates To Projector
Installing Plates to Projector • All spacers shall be used where indicated. Not using spacers can cause damage to projector. • It is the responsibility of the installer to ensure that the projector is properly ventilated. NOTE: For all PowerLite models, the manufacturer's product weight must be reviewed to ensure that the weight does not ®... -
Page 8: Hole Patterns
NOTE: Shoulder indicates back of adapter plate (B) Flip projector upside down. Find your projector model from the hole patterns listed below. Using the holes indicated on the corresponding hole pattern diagram, attach adapter plate (B) to projector using the appropriate number of M4 x 20 mm socket pin serrated washer head screws (D) and spacers (F). -
Page 9: Installing Connection Block To Projector Mount Assembly
Installing Connection Block to Projector Mount Assembly • Always use an assistant or mechanical lifting equipment to safely lift and position the projector. Slide connection block with projector into projector mount assembly (A) as shown. Tighten captive screw to secure projector to projector mount assembly (A). -
Page 10: Cable Management
(example: string tied to connector to help pull through extension column). Route cables through projector mount assembly as shown in figure 5.4 and connect to projector. EXTENSION COLUMN fig. 5.2 Visit the Peerless Web Site at www.peerlessmounts.com... -
Page 11: Projector Alignment
#2 phillips screwdriver in end of knob and turn. To prevent tampering with the pitch and roll adjustments: Tighten the two tamper resistant security screws on the projector mount assembly using 4 mm security allen wrench (J) to lock the pitch and roll adjustments as shown below. -
Page 12: Limited Five-Year Warranty
This warranty gives specific legal rights, and you may also have other rights provided by the national legislation of the country in which you purchased such Visit the Peerless Web Site at www.peerlessmounts.com Accessories are available for purchase through Epson (www.epson.com) ELPMBP02 False Ceiling Plate Kit •...
