This guide will allow you to quickly access the configuration interface of a SmartNode and give an overview of
the different elements you can or need to configure. For detailed information on all configuration parameters
refer to the SmartWare software configuration guide.
The SmartNode has a built in DHCP Server which allows an automatic IP connection with a connected PC. To pre-
pare the connection you need to configure the PC to use DHCP. The following paragraphs show how to do this on
Windows. For other operating systems refer to the operating instructions of the PC.
Right-click on My Network Places and select Properties in the context menu (see
1. figure 1).

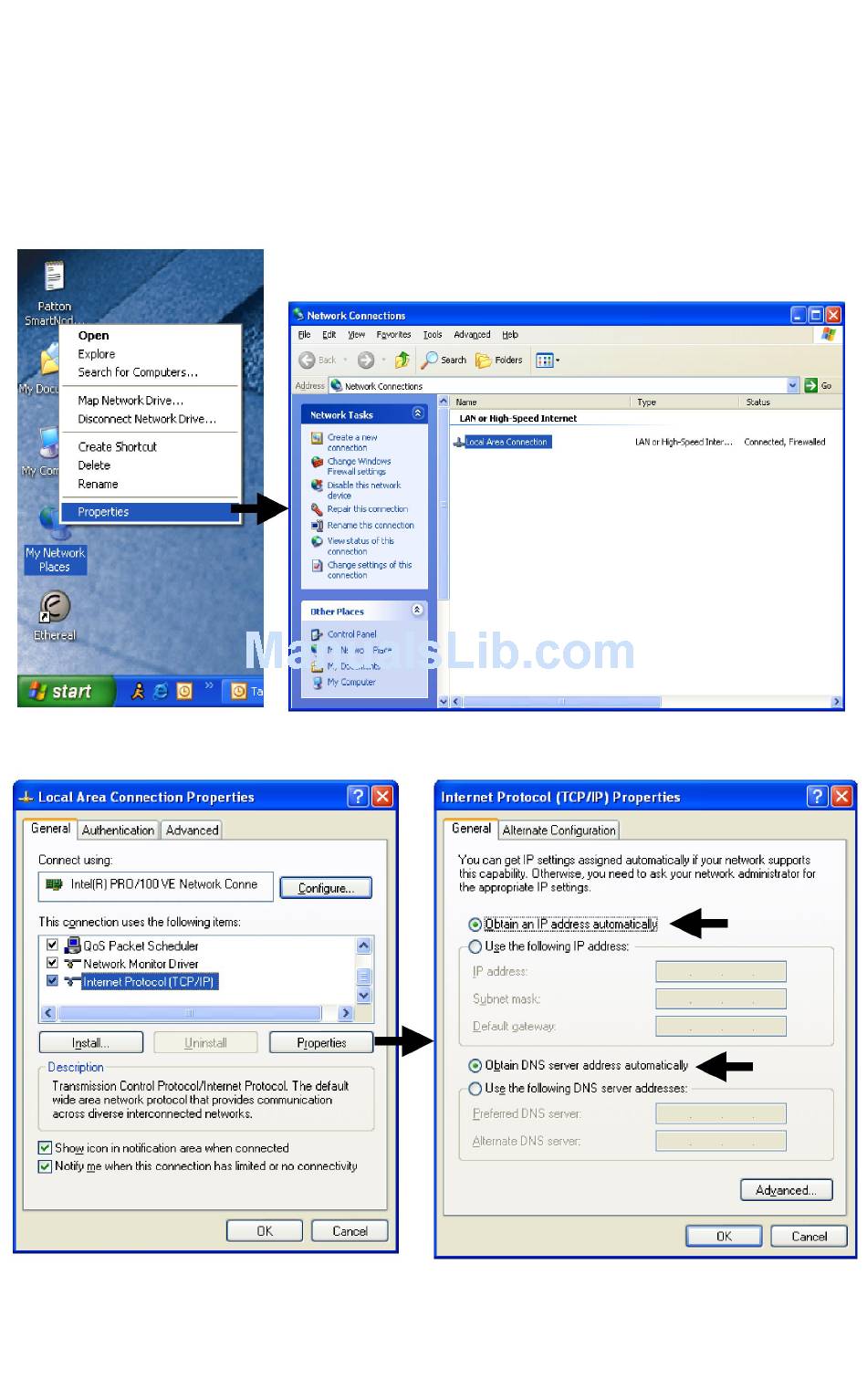

Figure 1. Displaying the Network Connections window
Figure 2. Displaying the Internet Properties (TCP/IP) Properties window
SmartWare GUI Quick Start Guide 3
