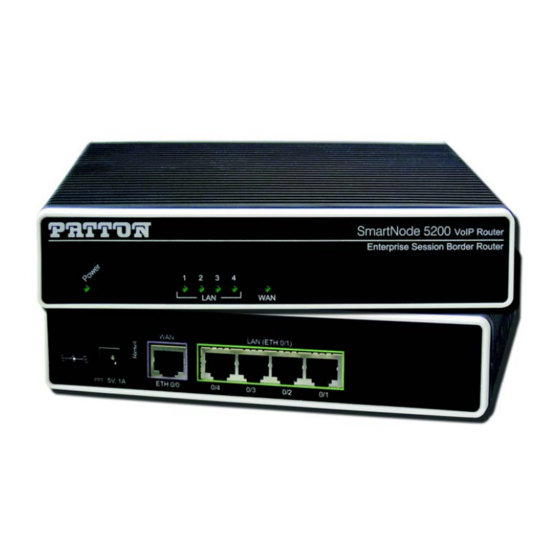

Patton electronics SmartNode 07MSN5200-QS Quick Start Manual

Enterprise session border router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SmartNode™ Model 5200
Enterprise Session Border Router

Quick Start Guide

Important
cial) environment only. It is not intended nor approved for use in a heavy industrial or resi-
dential environment.
This device is approved for connection to the public ISDN telecommunication network, over BRI/S0-
ISDN interfaces.
Part Number: 07MSN5200-QS, Rev. B
Revised: February 6, 2012
This is a Class A device and is intended for use in a light industrial (commer-
—
Sales Office: +1 (301) 975-1000
Technical Support: +1 (301) 975-1007
E-mail: support@patton.com
WWW: www.patton.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartNode 07MSN5200-QS and is the answer not in the manual?

Questions and answers

Related Manuals for Patton electronics SmartNode 07MSN5200-QS

Summary of Contents for Patton electronics SmartNode 07MSN5200-QS

  • Page 1: Quick Start Guide

    SmartNode™ Model 5200 Enterprise Session Border Router Quick Start Guide Important This is a Class A device and is intended for use in a light industrial (commer- — cial) environment only. It is not intended nor approved for use in a heavy industrial or resi- dential environment.
  • Page 2 • Do not open the device when the power cord is connected. For sys- tems without a power switch and without an external power adapter, line voltages are present within the device when the power WARNING cord is connected. • For devices with an external power adapter, the power adapter shall be a listed Limited Power Source The mains outlet that is utilized to power the device shall be within 10 feet (3 meters) of the device, shall be easily accessible, and protected by a circuit breaker in compli-...

  • Page 3: Power Up The Smartnode

    Electrostatic Discharge (ESD) can damage equipment and impair electrical circuitry. It occurs when electronic printed circuit cards are improperly handled and can result in complete or intermittent failures. Do the follow- CAUTION ing to prevent ESD: • Always follow ESD prevention procedures when removing and replac- ing cards.
  • Page 4 Right-click on My Network Places and select Properties in the context menu (see Figure 1. Figure 2. Double-click on Local Area Connection and click on Properties to open the Internet Protocol (TCP/IP) Properties window (see Select Obtain an IP address automatically and Obtain DNS server address automatically options. Click OK to save changes and close the properties windows.

  • Page 5: Connecting The Smartnode To Your Laptop Pc

    3.0 Connecting the SmartNode to your laptop PC First the SmartNode must be connected to the mains power supply with the power cable. Wait until the Power LED stops blinking and stays lit constantly. Now the SmartNode is ready. The interconnecting cables shall be acceptable for external use and shall be rated for the proper appli- cation with respect to voltage, current, anticipated temperature, flammability, and mechanical service- ability.

  • Page 6: Configuring The Desired Ip Address

    4.0 Configuring the desired IP address 4.1 Factory-default IP settings The factory default configuration for the Ethernet interface IP addresses and network masks are listed in the table below. Both Ethernet interfaces are activated upon power-up. LAN interface ETH 0/1 (LAN) provides a default DHCP server, the WAN interface uses DHCP client to automatically assign the IP address and network mask.

  • Page 7: Connecting The Smartnode To The Network

    Copy this modified configuration to your new start-up configuration. This will store your changes in non-volatile memory. Upon the next start-up the system will initialize itself using the modified configuration. 172.16.1.99(if-ip)[eth0]#copy running-config startup-config 172.16.1.99(if-ip)[eth0]# The SmartNode can now be connected to your network. 5.0 Connecting the SmartNode to the network In general, the SmartNode will connect to the network via the WAN (ETH 0/0) port.

  • Page 8: Loading The Configuration (Optional)

    6.0 Loading the configuration (optional) Patton provides a collection of configuration templates on the support page at www.patton.com/smart- node—one of which may be similar enough to your application that you can use it to speed up configuring the SmartNode. Simply download the configuration note that matches your application to your PC. Adapt the config- uration as described in the configuration note to your network (remember to modify the IP address) and copy the modified configuration to a TFTP server.

  • Page 9: Customer And Technical Support

    A.0 Customer and Technical Support If you contact Patton support, you should have some system information ready to help us better help you. This information allows us to quickly identify what product you are using and how it is configured. Therefore, we inte- grated a “system report”...

  • Page 10: Compliance Information

    B.0 Compliance Information B.1 Compliance EMC Compliance: EN55022, Class A • EN55024 • Low-Voltage Directive (Safety Compliance): IEC/EN60950-1, 2nd edition • AS/NZS60950-1 • PSTN: TBR3:1995 A1 • AS/ACIF SO31:2001 • B.2 CE Declaration of Conformity This device conforms to the requirements of Council Directive 1999/5/EC on the approximation of the laws of the member states relating to Radio and Telecommunication Terminal Equipment and the mutual recognition of their conformity.

  • Page 11: Copyright Statement

    Copyright statement Copyright © 2012, Patton Electronics Company. All rights reserved. The information in this document is subject to change without notice. Patton Electronics assumes no liability for errors that may appear in this document. Trademarks statement The term SmartNode is a trademark of Patton Electronics Company. All other trademarks presented in this docu- ment are the property of their respective owners.
  • Page 12 NOTES ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ SmartNode 5200 Quick Start Guide...
