Speco VL7038IRVF Instruction Manual

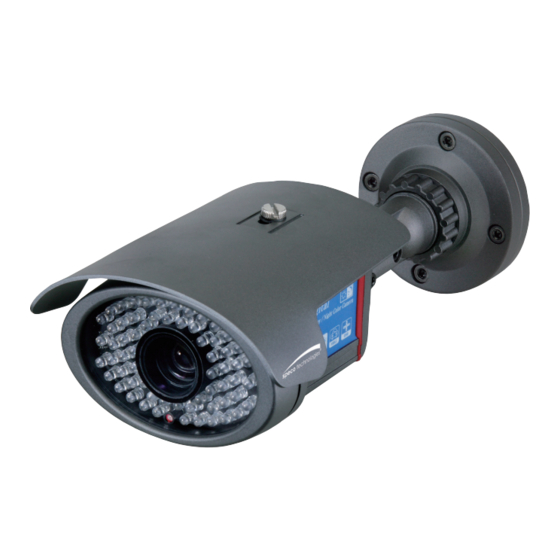

Dnr bullet day/night weather-proof camera
Hide thumbs Also See for VL7038IRVF:
Table of Contents

Advertisement

Quick Links

Download this manual

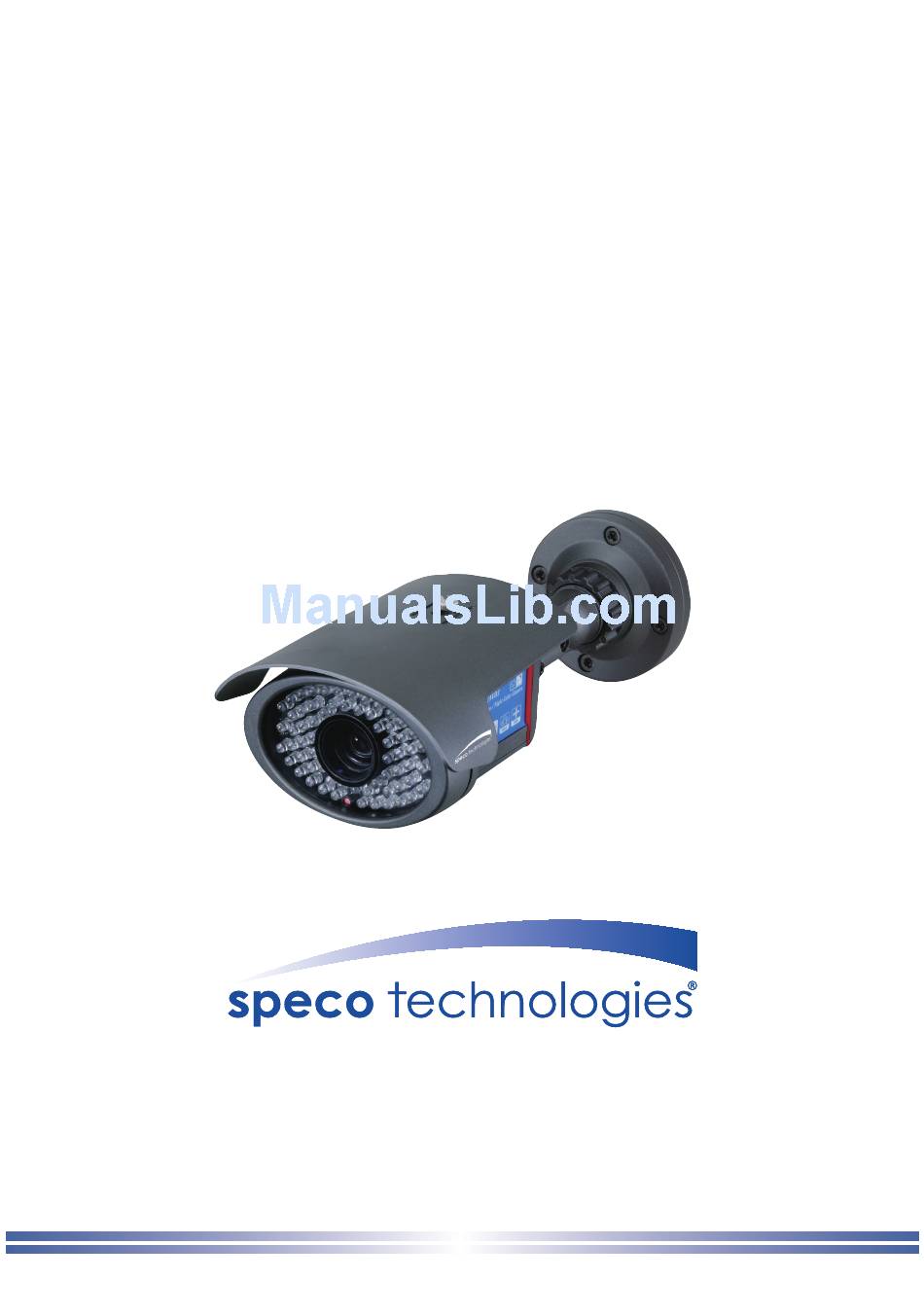

INSTRUCTION
MANUAL
DNR Bullet Day/Night
Weather-proof Camera
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
VL7038IRVF
VL7039IRVF
Rev. 6/20/2012

Advertisement

Table of Contents
loading

Related Manuals for Speco VL7038IRVF

Summary of Contents for Speco VL7038IRVF

  • Page 1 INSTRUCTION MANUAL DNR Bullet Day/Night Weather-proof Camera VL7038IRVF VL7039IRVF Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 6/20/2012...

  • Page 2: Table Of Contents

    Contents Contents ............1 ◑ Precautions ..........2, 3 ◑ Safety Instructions ........4 ◑ Package Contents ........5 ◑ Camera Installation ........6-8 ◑ Specifications ..........9, 10 ◑ Camera Dimension ........11 ◑ Features ............12 ◑ OSD Menu Details ........13-26 ◑...

  • Page 3: Precautions

    Precautions Do not install the camera in Do not install the camera under Do not touch the front lens of the extreme temperature conditions. unstable lighting conditions. camera. Only use the camera under conditions Severe lighting change or flicker can This is one of the most important parts of the where temperatures are between cause the camera to work improperly.
  • Page 4 CAUTION RISK OF ELECTRIC SHOCK CAUTION DO NOT OPEN CAUTION RISK OF ELECTRIC SHOCK CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT OPEN DO NOT REMOVE COVER(OR BACK). CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK NO USER-SERVICEABLE PARTS INSIDE.

  • Page 5: Safety Instructions

    Safety Instructions Precautions for use ◑ This camera should be installed by qualified personnel only ◑ There are no user serviceable parts inside ◑ Do not disassemble this camera other than to make initial adjustments ◑ Use a UL approved regulated 24 volt AC or 12 volt DC power supply ◑...

  • Page 6: Package Contents

    Package Contents Please make sure that the following items are included in the Package: 1) VL7038IRVF, VL7039IRVF • 1 Video Test Connector, Power Jack • 1 3Axis Bracket Round Base Adaptor • 2 Wrenches • Set Screw - 4 Tapping Screws 4x25 - 4 Hexagon Socket Screws M5x15...

  • Page 7: Camera Installation

    CAMERA INSTALLATION...

  • Page 8: Camera Installation

    CAMERA INSTALLATION Compatibility 1) VL7038IRVF, VL7039IRVF INTJBS INTCM...
  • Page 9 CAMERA INSTALLATION 1. VL7038IRVF, VL7039IRVF WALL 3AXIS BRACKER ROUND BASE ADAPTOR CAMERA ASSEMBLY TAPPING SCREW 4X25, 4EA HEXAGON SOCKET SCREW M5X15, 4EA...

  • Page 10: Specifications

    Day/Night Weather-proof Bullet Camera DC Auto Iris Varifocal Lens(2.8mm-12mm) / IR LED Built-in 63pcs ■ VL7038IRVF 600TV Lines DC Auto Iris Varifocal Lens(2.8mm-12mm) True Day/Night Capability ICR-IR Cut Filter Removable 850nm IR LEDs * 63pcs SPECIFICATIONS VL7038IRVF MODEL Image Pick-Up Device 1/3”...

  • Page 11: Specifications

    Day/Night Weather-proof Bullet Camera DC Auto Iris Varifocal Lens(6mm-50mm) / IR LED Built-in 63pcs ■ VL7039IRVF 600TV Lines DC Auto Iris Varifocal Lens(6mm-50mm) True Day/Night Capability ICR-IR Cut Filter Removable 850nm IR LEDs * 63pcs SPECIFICATIONS VL7039IRVF MODEL Image Pick-Up Device 1/3”...

  • Page 12: Camera Dimension

    CAMERA DIMENSION 1) VL7038IRVF / VL7039IRVF 11.57” 5.31” 5.98” 11.22” 4.76”...

  • Page 13: Features

    General Features Ultra High Sensitivity ◑ - The built-in high sensitivity COLOR CCD produces a clear image even in 0Lux(B/W, IR-LED ON)or lower illumination. 600TV Lines ◑ - By adopting a diagonal 6mm(1/3") 410,000 (NTSC) pixel, 470,000(PAL) pixel SONY CCD, the camera produces clear picture quality with a horizontal resolution of 600 TV lines for color and a horizontal resolution of 700TV lines for BW mode.

  • Page 14: Osd Menu Details

    OSD Control Button 1. Type A, Type B, Type C of OSD button could be used when it needs to OSD control. 2. Type D is extra Option (wired Remote controller) ▲ Up button: Moves the cursor upwards. Use this button to select an item or adjust the parameters.

  • Page 15: Menu Setup

    Menu Setup ● 1. Press the Function Setup switch. - Main setup menu is displayed on the monitor screen. MAIN SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.SSNR 5.BACKLIGHT 6.DNR3 7.DAY/NIGHT AUTO 8.SPECIAL 9.EXIT SAVE 2. Select a desired function using the Function Setup switch. - Place the cursor over a desired item.

  • Page 16: Exposure Setting

    - FOCUS ADJ : To adjust the DC lens focus correctly, you must activate the Focus Settings mode under each lens menu. Activate the Focus Settings mode, adjust the lens focus, and then deactivate the settings mode. ☞ NOTE ■ If color rolling occurs when using a DC lens, set Shutter to Fixed (---). Exposure Setting ●...
  • Page 17 ◆ AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen - but the higher the noise. * OFF : Deactivates the AGC function. * LOW : Allows automatic gain control from 5.3dB to 32dB. * HIGH : Allows automatic gain control from 5.3dB to 37dB. ◆...

  • Page 18: Ssnr Setting

    ※ Select one of the following 5 modes, as appropriate for your purpose. ◆ ATW : Select this when the color temperature is between 1,700˚K and 11,000˚K. ◆ OUTDOOR : Select this when the color temperature is between 1,700˚K and 11,000˚K. (sodium light inclusion) ◆...

  • Page 19: Backlight Setting

    Backlight Setting ● Unlike conventional cameras, the SIR-4160 is designed to deliver a distinctive subject and background at the same time, even when the subject is backlight, by using the features of the proprietary W-V DSP chip. 1. When the SETUP menu screen is displayed, select 'BACKLIGHT' by using the Function Setup switch so that the arrow indicates 'BACKLIGHT'.

  • Page 20: Dnr3 Setting

    BLC SETUP HLC SETUP LEVEL LEVEL MIDDLE LIMITS NIGHT ONLY BOTTOM MASK COLOR BLACK LEFT MASK TONE RIGHT BOTTOM Press Set to Return LEFT RIGHT Press Set to Return ☞ NOTE ■ Because there can be a difference in the effectiveness of HLC according to the amount of light area in the screen, optimize the installation angle for the best HLC performance.
  • Page 21 3. Set the DNR3 mode to 'ON' and press the Function Setup switch. Then you can adjust the noise reduction level. ☞ NOTE ■ You cannot set the DNR3 to ‘ON’ or ‘OFF’ when the AGC mode of the EXPOSURE menu is ‘OFF’. ■...

  • Page 22: Special Setting

    ◆ AUTO : The mode is switched to 'Color' in a normal environment, but switches to 'B/W' mode when ambient illumination is low. To set up the switching time for AUTO mode, press the Function Setup switch. You can turn on or off the burst signal on B/W mode.
  • Page 23 2. Select a desired mode using the Function Setup switch. SPECIAL 1.IMAGE ADJ 2.CAM TITLE 3.SYNC 4.MOTION DET 5.PRIVACY 6.DIS 7.COMM ADJ 8.LANGUAGE ENGLISH 9.RETRUN ◆ IMAGE ADJ. : 1) When the SETUP menu screen is displayed, select 'IMAGE ADJ' by using the Function Setup switch so that the arrow indicates 'IMAGE ADJ'.
  • Page 24 ☞ NOTE ■ When the V-REV or H-REV mode is enabled, the text on the screen does not flip. ■ If you increase the SHARPNESS level too high, the picture may become distorted or noise may appear. ◆ CAM TITLE : If you enter a title, the title will appear on the monitor. 1) If the SPECIAL menu screen is displayed, use the Function Setup switch so that the arrow indicates 'CAM TITLE'.
  • Page 25 ☞ NOTE ■ When using AC power at 60Hz(NTSC), 50Hz(PAL), frequency, you can use the L/L type synchronization. ■ When the power is DC 12V, the SYNC menu is fixed to the ‘INT’ mode. ◆ MOTION DET :This product has a feature MOTION DET that allows you to observe movement of 1.SENSITIVITY...
  • Page 26 1) When the SPECIAL menu screen is displayed, press the Function Setup switch so that the arrow indicates 'PRIVACY'. 2) Set up the mode using the Function Setup switch. - AREA : You can select up to 12 PRIVACY areas. - MODE : Determines whether to use the area selected in the AREA.

  • Page 27: Exit Setting

    ◆ LANGUAGE : You can select the menu language according to your requirements. ◆ RETURN : Select this to save the SPECIAL menu settings and return to the MAIN SETUP menu. Exit Setting ● Select a desired EXIT mode using the Function Setup Switch. - SAVE : Save the current settings and exit the MAIN SETUP menu.

  • Page 28: Trouble Shooting

    Trouble Shooting ● PROBLEM POSSIBLE CAUSE ☞Check the power cable, power supply output and video Northing appears on connection between the camera and monitor. the screen. ☞Are the camera lens or the lens glass dirty? Clean the lens / glass with a soft clean cloth. The image on the ☞Adjust the monitor controls, as required.
  • Page 30 ▶ MEMO...
  • Page 31 ▶ MEMO...
  • Page 32 ▶ MEMO...
  • Page 33 200 New Highway Amityville, NY 11701 631-957-8700 1 800 645 5516 www.specotech.com...
