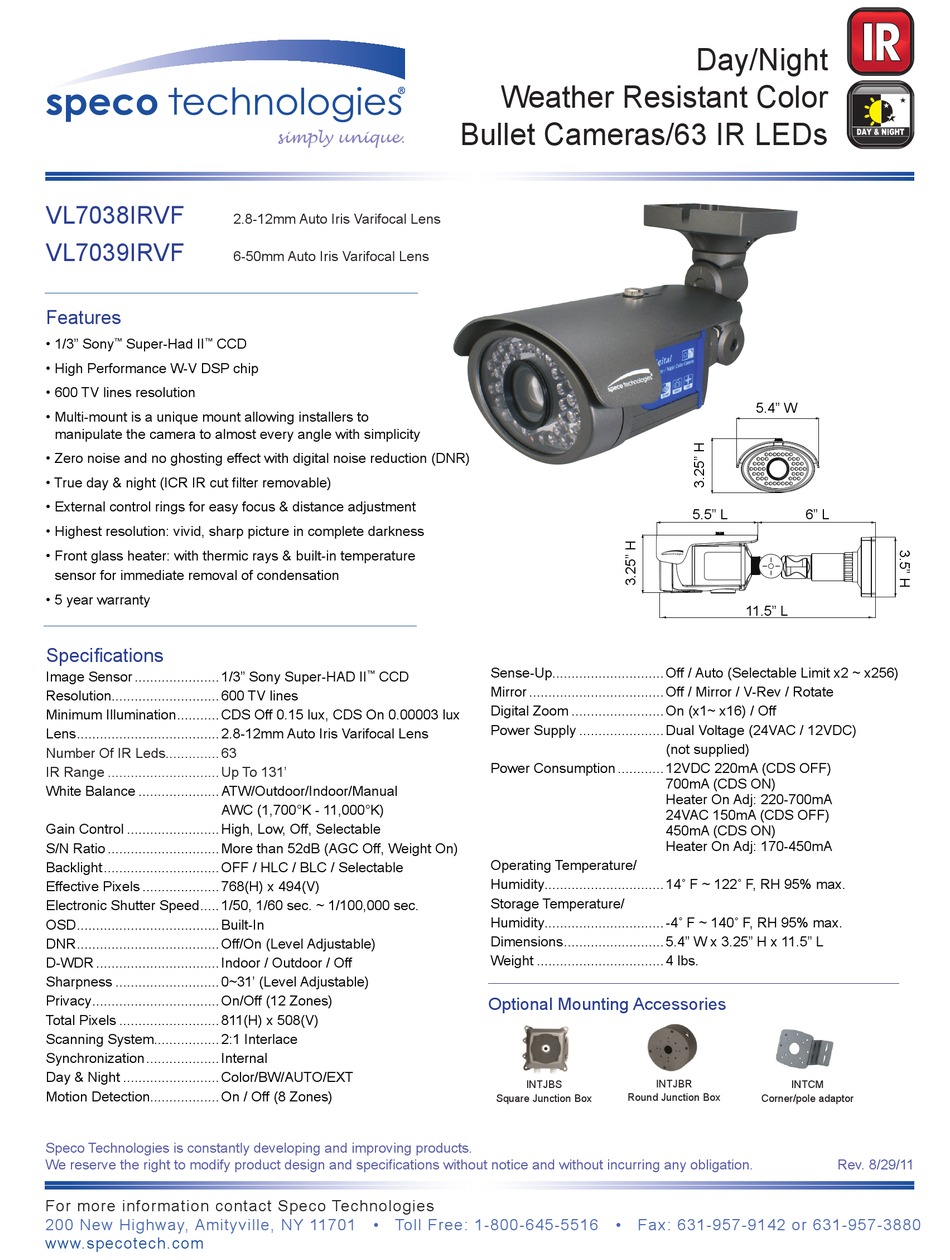

Speco VL7038IRVF Specification Sheet

VL7038IRVF
VL7039IRVF
Features
• 1/3" Sony Super-Had II CCD
™ ™
• High Performance W-V DSP chip
• 600 TV lines resolution
• Multi-mount is a unique mount allowing installers to
manipulate the camera to almost every angle with simplicity
• Zero noise and no ghosting effect with digital noise reduction (DNR)
• True day & night (ICR IR cut filter removable)
• External control rings for easy focus & distance adjustment
• Highest resolution: vivid, sharp picture in complete darkness
• Front glass heater: with thermic rays & built-in temperature
sensor for immediate removal of condensation
• 5 year warranty

Specifications

Image Sensor ...................... 1/3" Sony Super-HAD II
Resolution............................ 600 TV lines
Minimum Illumination ........... CDS Off 0.15 lux, CDS On 0.00003 lux
Lens ..................................... 2.8-12mm Auto Iris Varifocal Lens
Number Of IR Leds.............. 63
IR Range ............................. Up To 131'
White Balance ..................... ATW/Outdoor/Indoor/Manual
AWC (1,700°K - 11,000°K)
Gain Control ........................ High, Low, Off, Selectable
S/N Ratio ............................. More than 52dB (AGC Off, Weight On)
Backlight .............................. OFF / HLC / BLC / Selectable
Effective Pixels .................... 768(H) x 494(V)
Electronic Shutter Speed ..... 1/50, 1/60 sec. ~ 1/100,000 sec.
OSD ..................................... Built-In
DNR ..................................... Off/On (Level Adjustable)
D-WDR ................................ Indoor / Outdoor / Off
Sharpness ........................... 0~31' (Level Adjustable)
Privacy ................................. On/Off (12 Zones)
Total Pixels .......................... 811(H) x 508(V)
Scanning System................. 2:1 Interlace
Synchronization ................... Internal
Day & Night ......................... Color/BW/AUTO/EXT
Motion Detection.................. On / Off (8 Zones)
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
For more information contact Speco Technologies
200 New Highway, Amityville, NY 11701
www.specotech.com
simply unique.
2.8-12mm Auto Iris Varifocal Lens
6-50mm Auto Iris Varifocal Lens
CCD
™
• Toll Free: 1-800-645-5516
Weather Resistant Color
Bullet Cameras/63 IR LEDs
Sense-Up............................. Off / Auto (Selectable Limit x2 ~ x256)
Mirror ................................... Off / Mirror / V-Rev / Rotate
Digital Zoom ........................ On (x1~ x16) / Off
Power Supply ...................... Dual Voltage (24VAC / 12VDC)
Power Consumption ............ 12VDC 220mA (CDS OFF)
Operating Temperature/
Humidity............................... 14˚ F ~ 122˚ F, RH 95% max.
Storage Temperature/
Humidity............................... -4˚ F ~ 140˚ F, RH 95% max.
Dimensions .......................... 5.4" W x 3.25" H x 11.5" L
Weight ................................. 4 lbs.
Optional Mounting Accessories
INTJBS
Square Junction Box Round Junction Box
• Fax: 631-957-9142 or 631-957-3880
Day/Night
5.4" W
5.5" L 6" L
11.5" L
(not supplied)
700mA (CDS ON)
Heater On Adj: 220-700mA
24VAC 150mA (CDS OFF)
450mA (CDS ON)
Heater On Adj: 170-450mA
INTJBR
INTCM
Corner/pole adaptor
IR
MP
Rev. 8/29/11
