Summary of Contents for Speco O2VB1

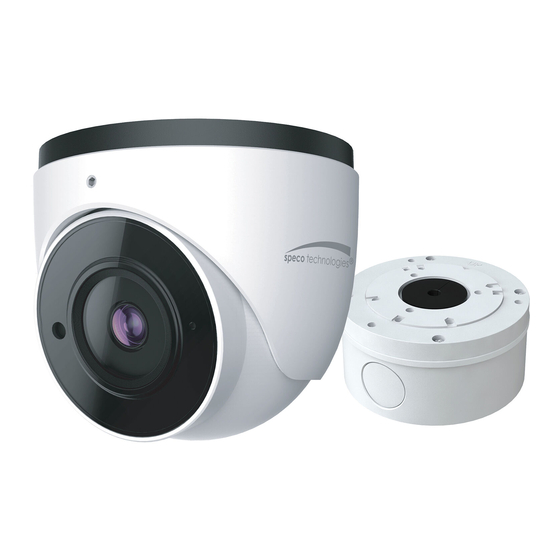

- Page 1 User Manual 2MP IP Camera O2VB1/O2VB1V/O2VT1/O2VT1V Please read this instruction carefully before operating the unit and keep it for further reference...
- Page 2 Important Safeguards and Warnings 1. Electrical safety All installation and operation here should conform to local electrical safety codes. Use a certified/listed 12VDC Class2 power supply only. Please note: Do not connect two power supplying sources to the device at the same time; it may result in device damage! The product must be grounded to reduce the risk of electric shock.
- Page 3 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Note: Before installation, check the package and make sure that all components are included. Contact your rep or Speco customer service department immediately if something is broken or missing in the package. Accessory name Amount...
-
Page 4: Table Of Contents
Table of Contents Introduction ........................................ 2 Web Access and Login ....................................3 Live View ........................................4 Camera Configuration ....................................6 System Configuration ................................6 4.1.1 System Information ..............................6 4.1.2 Date and Time ................................6 4.1.3 Local Recording ................................7 4.1.4 Storage .................................. - Page 5 Video Search ..................................30 5.2.1 Local Video Search ..............................30 5.2.2 SD Card Video Search..............................31 Appendix ..........................................34 Appendix 1 Troubleshooting ..................................... 34 Appendix 2 Specifications ....................................35...
-
Page 6: Introduction
Thank you for purchasing this network camera! Please read this manual carefully before operating the unit and retain it for further reference. Should you require any technical assistance, please contact Speco Technologies Technical Support at 1-800-645-5516. Main Features Built-in PoE (Power over Ethernet) ... -
Page 7: Web Access And Login
2 Web Access and Login The IP camera settings can be accessed via a web browser through the LAN. Access through IP Scanner Network connection: ① Make sure the PC and IP-Cam are connected on the same local network. The camera is set to DHCP by default and will be assigned an IP address by the DHCP server. -
Page 8: Live View
3 Live View The window below will be shown after logging in. The following table describes the icons on the live view interface Icon Description Icon Description Original size of resolution Start/stop local recording Zoom/Focus control (for motorized Fit (correct scale) models) Auto (fill the window) SD card recording indicator... - Page 9 Click the zoom/focus control button to show the control panel. The descriptions of the control panel are as follows: Icon Description Icon Description Zoom - Zoom + Focus - Focus + One key focus (used when image is out of focus after manual adjustment)
-
Page 10: Camera Configuration
4 Camera Configuration Press the “Setup” button to go to the configuration interface. Note: Wherever applicable, click the “Save” button to save the settings. System Configuration 4.1.1 System Information In the “System Information” interface, the system information of the device is listed. 4.1.2 Date and Time To set the time and date, go to SystemDate and Time. -
Page 11: Local Recording
4.1.3 Local Recording Go to SystemLocal Recording to set up the storage path of captured pictures and recorded videos on the local PC. There is also an option to enable or disable the bitrate display in the recorded files. For the model with built-in MIC, there is also an option to enable or disable audio recording. 4.1.4 Storage Go to SystemStorage to go to the interface as shown below. - Page 12 2. Set record stream, pre-record time and cycle writing. Pre Record Time: Set the time to record before the actual recording begins. 3. Set schedule recording. Check “Enable Schedule Record” and set the schedule. Weekly schedule Set the alarm time from Monday to Sunday for a single week. Each day is divided in one hour increments. Green means scheduled.
-
Page 13: Video Configuration
Set the format, resolution and quality of the image saved on the SD card and the snapshot interval and quantity and the timing snapshot here. Snapshot Quantity: The number you set here is the maximum quantity of snapshots. The actual quantity of snapshots may be less than this number. - Page 14 Saturation: Set the degree of color purity. The purer the color is, the brighter the image is. WDR: WDR can adjust the camera to provide a better image when there are both very bright and very dark areas simultaneously in the field of the view by lowering the brightness of the bright area and increasing the brightness of the dark area. Recording will be stopped for a few seconds while the mode is changing from non-WDR to WDR mode.
-
Page 15: Video / Audio Configuration
4.2.2 Video / Audio Configuration Go to ImageVideo / Audio interface as shown below. In this interface, set the resolution, frame rate, bitrate type, video quality and so on subject to the actual network condition. Click the “Audio” tab to go to the interface as shown below. Two video streams can be adjustable. -
Page 16: Video Mask
Set time stamp, device name, OSD content and picture overlap here. After enabling the corresponding display and entering the content, drag them to change their position. Then click the “Save” button to save the settings. 4.2.4 Video Mask Go to ImageVideo Mask interface as shown below. A maximum of 4 zones can be set up. To set up video mask: 1. -
Page 17: Roi Configuration
4.2.5 ROI Configuration Go to ImageROI Config interface as shown below. An area in the image can be set as a region of interest. This area will have a higher bitrate than the rest of the image, resulting in better image quality for the identified area. 1. -
Page 18: Event Setup
Event Setup 4.3.1 Motion Detection Go to Event Setup Motion Detection to set motion detection alarm. 1. Check “Enable” check box to activate motion based alarms. If unchecked, the camera will not send out any signals to trigger motion-based recording to the NVR or CMS, even if there is motion in the video. Trigger Snapshot: If selected, the system will capture images on motion detection and save the images on an SD card. -
Page 19: Alarm Server
2. Click “Enable” and set the alarm holding time. 3. Set alarm trigger options. Trigger Email and FTP. The setup steps are the same as motion detection. Please refer to motion detection chapter for details. SD Card Error When there are some errors in writing to SD card, the corresponding alarms will be triggered. 1. -
Page 20: Abnormality
4.4.1 Abnormality This function can detect changes in the surveillance environment affected by the external factors. Go to AnalyticsAbnormality interface as shown below. 1. Enable the applicable detection that’s desired. Video Blur Detection: Alarms will be triggered if the video becomes blurry. 2. -
Page 21: Intrusion
2. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details. 3. Click “Save” button to save the settings. 4. Set area and sensitivity of the line crossing alarm. Click the “Area and Sensitivity” tab to go to the interface as shown below. Set the alarm line number and direction. -
Page 22: Network Configuration
1. Enable region intrusion detection alarm and set the alarm holding time. 2. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details. 3. Click the “Save” button to save the settings. 4. -
Page 23: Port
Use IP address (take IPv4 for example)-obtain a local IP address automatically through DHCP. A typical router has a DHCP server built in, and therefore is able to assign an IP address to the camera. Use PPPoE-Click the “PPPoE Config” tab to go to the interface as shown below. Enable PPPoE and then enter the user name and password from your ISP. -
Page 24: Server Configuration
HTTP Port: The default HTTP port is 80. It can be changed to any port which is not occupied. HTTPS Port: The default HTTPs port is 443. It can be changed to any port which is not occupied. Data Port: The default data port is 9008. Please change it as necessary. RTSP Port: The default port is 554. -
Page 25: 802.1X
4.5.5 802.1x If it is enabled, the camera’s data can be protected. When the camera is connected to the network protected by the IEE802.1x, user authentication is needed. To use this function, the camera shall be connected to a switch supporting 802.1x protocol. The switch can be reckoned as an authentication system to identify the device in a local network. -
Page 26: Upnp
Sub stream: The address format is “rtsp://IP address: rtsp port/profile2?transportmode=mcast”. Third stream: The address format is “rtsp://IP address: rtsp port/profile3?transportmode=mcast”. Audio: Having entered the main/sub stream in a media player(like VLC), the video and audio will play automatically. If “Allow anonymous login…” is checked, there is no need to enter the username and password to view the video. If “auto start”... -
Page 27: Https
4.5.9 HTTPS HTTPs provides authentication of the web site and protects user privacy. Go to NetworkHTTPS as shown below. There is a certificate installed by default as shown above. Enable this function and save it. Then the camera can be accessed by entering https://IP: https port via the web browser (eg. -
Page 28: Qos
authority for signature. After receiving the signed certificate, import the certificate to the device. 4.5.10 QoS QoS (Quality of Service) function is used to provide different quality of services for different network applications. With the deficient bandwidth, the router or switch will sort the data streams and transfer them according to their priority to solve the network delay and network congestion by using this function. -
Page 29: Online User
Modify user: 1. Select a user to modify password and MAC address if necessary in the user configuration list box. 2. The “Edit user” dialog box pops up by clicking the “Modify” button. 3. Enter the old password of the user in the “Old Password” text box. 4. -
Page 30: Security Management
click the “Add” button. 4.6.4 Security Management Go to SecuritySecurity Management as shown below. In order to prevent against malicious password unlocking, “locking once illegal login” function can be enabled here. If this function is enabled, login failure after trying six times will make the login interface locked. The camera can be logged in again after a half hour or after the camera reboots. -
Page 31: Upgrade
If necessary, the camera can be set up to reboot on a time interval. Enable “Time Settings”, set the date and time and then click the “Save” button to save the settings. 4.7.3 Upgrade Go to MaintenanceUpgrade. In this interface, the camera firmware can be updated. 1. -
Page 32: Search
5 Search Image Search In the Setup interface, click Search to go to the interface as shown below. Images that are saved on the PC or SD card can be found here. Local Image Search 1. Choose “Picture”—“Local”. 2. Set time: Select date and choose the start and end time. 3. - Page 33 Click to return to the previous interface. SD Card Image Search 1. Choose “Picture”—“SD Card”. 2. Set time: Select date and choose the start and end time. 3. Choose the alarm events at the bottom of the interface. 4. Click to search the images.
-
Page 34: Video Search
Icon Description Icon Description Close: Select an image and Close all: Click this button to click this button to close close all images. the image. Save: Click this button to Save all: Click this button to select the path for saving select the path for saving all the image on the PC. -
Page 35: Sd Card Video Search
Icon Description Icon Description Play button. After pausing the video, click this button to Pause button continue playing. Stop button Speed down Watermark Speed up display Enable / disable audio; drag the slider to adjust the volume after enabling audio. (only some models support this function) 5.2.2 SD Card Video Search Click Search to go to the interface as shown below. - Page 36 4. Select the alarm events at the bottom of the interface. 5. Select mix stream (video and audio stream) or video stream as needed. 6. Double click on a file name in the list to start playback. The time table can be shown in 24H/12H/2H/1H format by clicking the corresponding buttons. Video clip and downloading 1.
- Page 37 Click “Set up” to set the storage directory of the video files. Click “Open” to play the video. Click “Clear List” to clear the downloading list. Click “Close” to close the downloading window.
-
Page 38: Appendix
Appendix Appendix 1 Troubleshooting IP Scanner does not show any device. Make sure that the PC that’s running IP Scanner is on the same local network as the devices. Internet Explorer cannot download ActiveX control. IE browser may be set up to block ActiveX. Follow the steps below. 1. -
Page 39: Appendix 2 Specifications
Appendix 2 Specifications Specification /Model O2VB1 Image Sensor 1/2.9＂CMOS Image Size 1920×1080 Electronic Shutter 1/25s~1/100000s Iris Type Fixed Iris 0.0035lux@F1.2, AGC ON; 0 lux with IR Min. llumination 0.013lux@F2.0, AGC ON; 0 lux with IR 2.8mm@F2.0, horizontal field of view:107°... - Page 40 Specification /Model O2VB1V Image Sensor 1/2.9＂CMOS Image Size 1920×1080 Electronic Shutter 1/25s~1/100000s Iris Type Fixed Iris 0.0035lux@F1.2, AGC ON; 0 lux with IR Min. llumination 0.013lux@F1.4, AGC ON; 0 lux with IR Camera Lens 2.8~12mm@F1.4, motorized zoom lens, horizontal FoV: :88°~34.8° Lens Mount Ø14 Day&Night...
- Page 41 Specification /Model O2VT1 Image Sensor 1/2.9＂CMOS Image Size 1920×1080 Electronic Shutter 1/25s~1/100000s Iris Type Fixed Iris 0.0035lux@F1.2, AGC ON; 0 lux with IR Min. llumination 0.013lux@F2.0, AGC ON; 0 lux with IR 2.8mm@F2.0, horizontal field of view:107° Camera Lens 3.6mm@F2.0, horizontal field of view: 84.8° 6mm@F2.0, horizontal field of view: 52°...
- Page 42 Approx. 1.47lbs Installation Wall mounting; ceiling mounting Models: O2VB1/O2B1V/O2VT1/O2VT1V Federal Communications Commission (FCC) Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
